Roadworx Sound Masking Standard Sound Masking System Controller - Master Plenum - 12 Speakers Capacity 2 Channel

Product Code: RWSM-M12-2CH

Key Features
State-of-the-art Sound Masking System With Exclusive Adaptive Control Technology. The "M" and "S" series controllers can cover varying size sound masking projects with options of 12 to 48 sound masking speakers per controller.
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

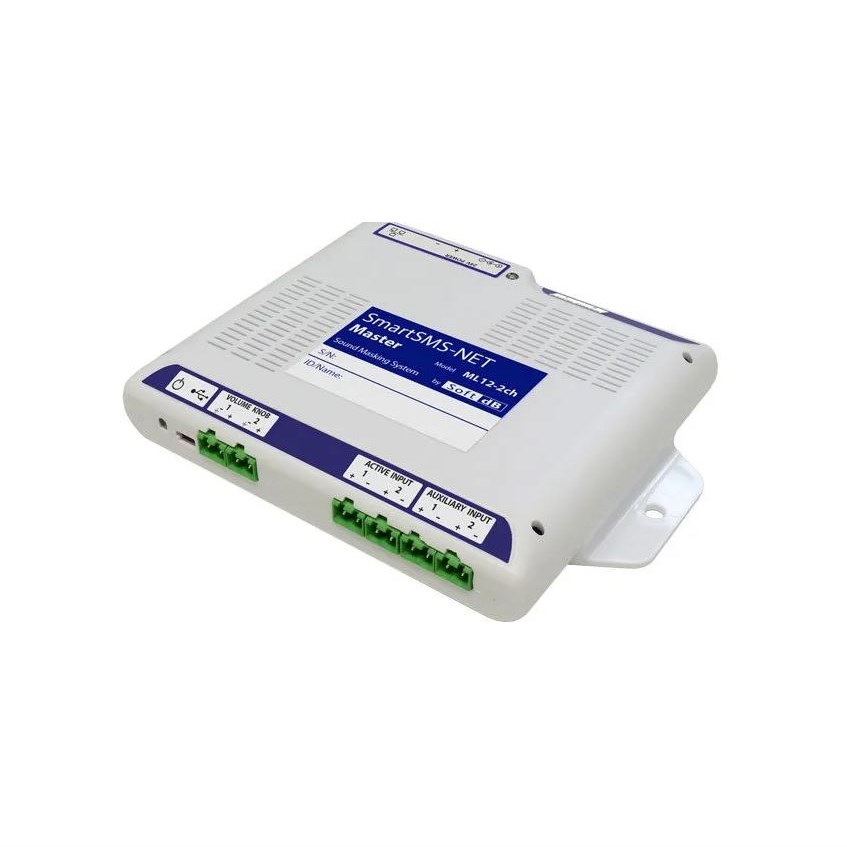

Roadworx Sound Masking Standard Sound Masking System Controller - Master Plenum - 12 Speakers Capacity 2 Channel

"M" series controller provides:
• A compact Form-Factor
• Up to 2 output channels
• Up to 6 speakers per channel
• Independent equalizer for each channel
• 340 narrow bands automatic equalizer
• 1/3rd octave bands automatic or manual equalizer
• High-power amplifier providing up to 92 dBA at 1m
• Up to 8 inputs for active volume control sensors
• Up to 4 music/paging inputs with independent 1/3rd octave equalizers for each output channel
• 2 inputs for wall mounted volume control knobs

Roadworx Sound Masking system highlights:
• Many controllers can be networked together to construct large sound masking installations.
• Adaptive volume adjustment for optimal efficiency and comfort
• Automatic equalization that guarantees the optimum sound masking spectra

Power Supply Included

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  RWSM-M48-8CH RWSM-S48-8CH RWSM-S24-8CH RWSM-M24-4CH RWSM-S24-4CH  RWSM-M12-2CH
Can be a Project Master? YES NO NO YES NO YES
Outputs
Nb. Outputs 8 8 8 4 4 2
Max Speakers/Output 6 6 3 6 6 6
Max Speakers/Controller 48 48 24 24 24 12
Sound Masking
Volume 30 to 92 dBA in 0.1 dB steps and mute
Equalizer 23 1/3 octave bands (63 Hz to 10 kHz) or 500 narrow bands automatic equalizer
Reference Spectrum 13 pre-set sound-masking reference spectrums, unlimited user defined spectrums
Volume Ramp-Up User defined, up to 30 days
Active Volume Control
Nb. Inputs 8 (4 shared) 8 (4 shared) 8 (4 shared) 4 (4 shared) 4 (4 shared) 2
Max Sensors/Input 6
Control Independent sound masking volume adjustment for each output channel
Volume Change Rate Adjustable down to 0.1dB steps, updates every 15s
Active Adjustment Range User defined; maximum range: -7 to +3 dB relative to reference masking level.
