Description

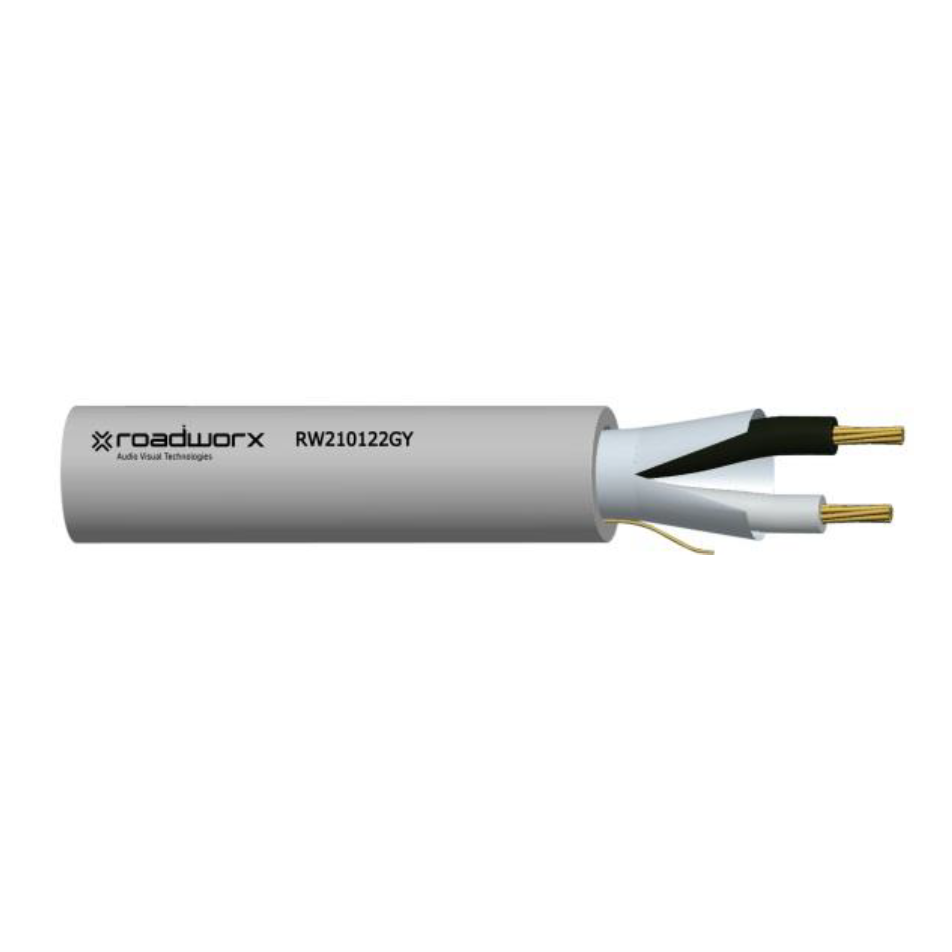

7/0.25TC x 1P + PE Insulation + Al. Foil + Drain Wire + PVC Sheath Φ4.5mm. Approx 8 twists per foot.
Applicable Standards
N/A
Suitable Applications
For the interconnection of instruments and control equipment.
We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

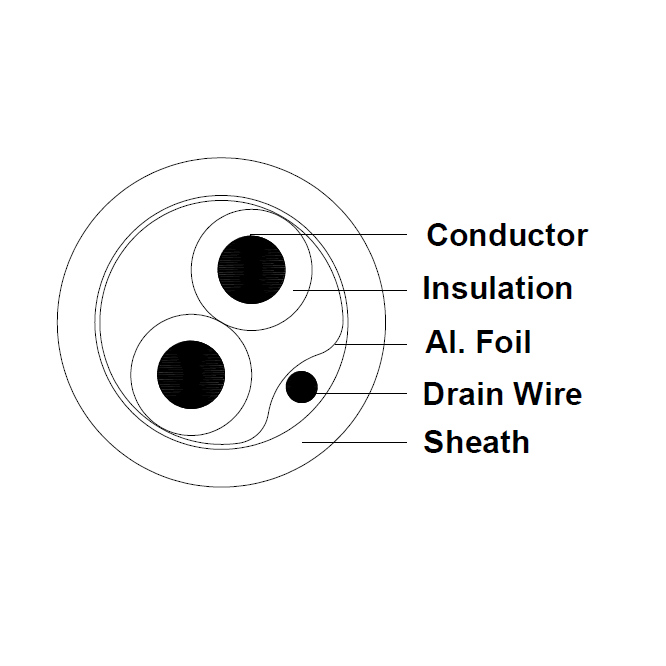

Cable Properties:
Conductor: 7/0.25+/-0.006TC
Insulation:
Screen: Al. Foil 100% Coverage
Drain Wire: 7/0.25+/-0.006TC
Sheath:
Electrical Properties:
Conductor Max D.C Resistance: 49.2 ohm/km 20°C
Characteristic Impedance: 64 ohm
Nom. Capacitance Core to Core: 79 pF/m @ 1KHz
Nom. Capacitance Core to Shield: 154 pF/m @ 1KHz
Voltage Test: Core to Core: 1000V a.c/1min
Voltage Test: Core to Screen: 1000V a.c/1min
Physical Properties:
Inner Sheath Elongation ≥300%
Inner Sheath Tensile Strength ≥13.6 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Mechanical Properties:
Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 48N
Min. Bend Radius (install) 45mm
Approximate Mass 2.49kg/100m
Sheath Printing ROADWORX RW210122 Analog Audio, 1 pair, 22AWG (meter marking)
