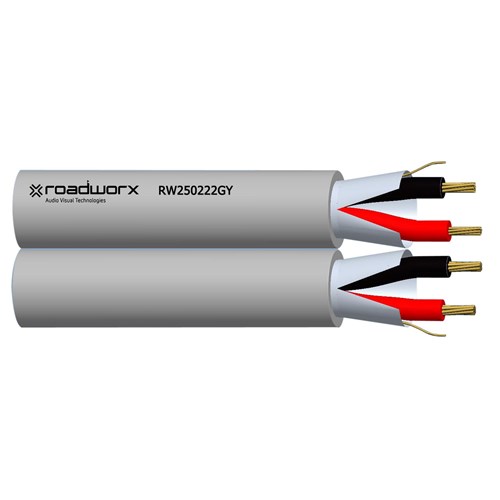

Roadworx RW250222 Analog Audio Cable 2 Pair 22AWG Grey 100m Reels

Product Code: RW250222GY100

Key Features

Analog Audio 2 Pair 22AWG Grey 100M Reels

$2.69 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW250222 Analog Audio 2 Pair 22AWG Grey 100M Reels

Description

(7/0.25TC x 2C + PVC Insulation + Drain Wire + Al. Foil) x 2C + PVC Sheath O.D 3.65 x 7.3mm

Applicable Standards

N/A

Suitable Applications

For the interconnection of instruments and control equipment.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.25+/-0.006TC
Insulation Pair: 2
Material: PVC
Colour: Red, Black
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.3+/-0.05mm
Drain Wire 7/0.25+/-0.006mmTC
Screen

Al. Foil Coverage 100%
Sheath Material: PVC / Colour: Grey/Red
Min. Thickness 0.41mm / Nom. Thickness ≥0.51mm
Nom. Sheath O.D H: 3.65+/-0.2mm, W: 7.3+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 55 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 96N
Min. Bend Radius (install) 36.5mm
Approximate Mass 4.9kg/100m
Sheath Printing ROADWORX RW250222 Analog Audio, 2 pair, 22AWG (meter marking)
