Roadworx RW210222 Analog Audio Cable 2 Pair 22AWG Grey 500m Reels

Product Code: RW210222GY500

Key Features

Analog Audio 2 Pair 22AWG Grey 500M Reels

$1.38 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

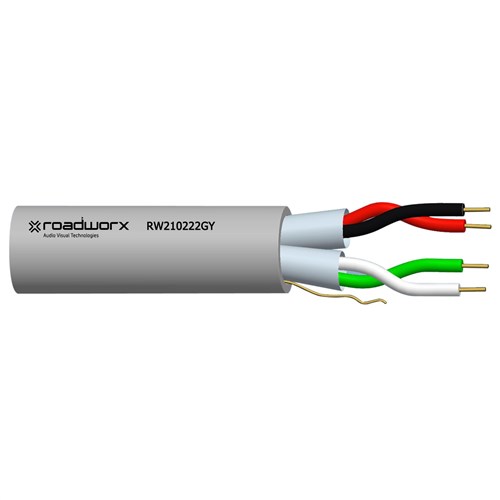

Roadworx RW210222 Analog Audio 2 Pair 22AWG Grey 500M Reels

Description

(7/0.25TC x 1P + PP Insulation + Al. Foil) x 2C + Drain Wire +
PVC Sheath Φ4.5mm

Applicable Standards

N/A

Suitable Applications

For the interconnection of instruments and control equipment.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.25+/-0.006TC
Insulation Pair: 2
Material: PP
Colour: Red/Black, Green/White
Min. Thickness 0.18mm / Nom. Thickness ≥0.22mm / Nom. O.D 1.2+/-0.1mm
Screen

Al. Foil 100% Coverage
Drain Wire 7/0.20+/-0.006TC
Sheath Material: PVC / Colour: Grey
Min. Thickness 0.40mm / Nom. Thickness ≥0.51mm / Nom. Sheath O.D 4.3+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 49.2 ohm/km 20°C
Characteristic Impedance 45 ohm
Nom. Capacitance Core to Core 115 pF/m @ 1KHz
Nom. Capacitance Core to Screen 203 pF/m @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Inner Sheath Elongation ≥150%
Inner Sheath Tensile Strength  ≥20 N/mm
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength  ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 96N
Min. Bend Radius (install) 43mm
Approximate Mass 4.08kg/100m
Sheath Printing ROADWORX RW210222 Analog Audio, 2 pair, 22AWG
(meter marking)
