Roadworx Sound Masking 7 Inch Centralised Touch Control Panel

Product Code: RWSM-CTP

Key Features
Simple and easy masking sound and music volume adjustment in any zone.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

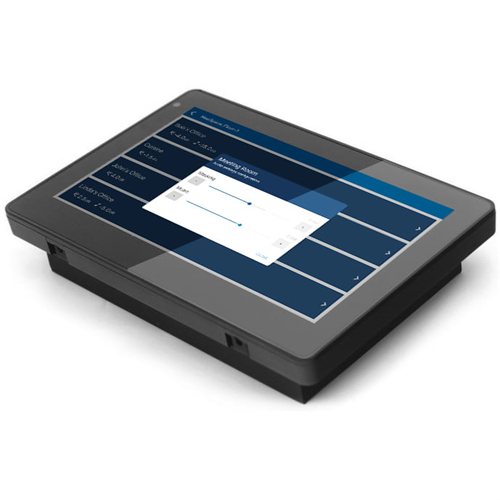

Roadworx Sound Masking 7 Inch Centralised Touch Control Panel

• 7” Capacitive Touch Screen,
• Wall-Mount for sleek design
• Password access
• Ethernet or WiFi connectivity
• Flexible power supply with PoE or 9-36Vdc

Specifications:

Volumes
Sound Masking: ±10 dB with respect to calibrated sound masking level
Music: 30 dB

Connectivity
Connectivity: TCP/IP
Interfaces: Ethernet (RJ45) or WiFi (802.11b/g/n, WiFi radio module can be disabled if not required)
Protocol: Proprietary

Screen
Size: 7 inch (178mm)
Resolution: 1024 x 600
Brightness: 350 cd/m²
Touch Panel Technology: Capacitive

Power
Powering Options PoE: or DC barrel connector
DC Barrel Connector: 9-36VDC, Power-Supply provided
PoE (Power over Ethernet): 48V, IEEE 802.3.af (optional PoE injector available)
Power Rating: Max 15W

Physical
Size 182mm x 121mm x 25mm
Weight 400g
Mounting: Wall-mount bracket

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
