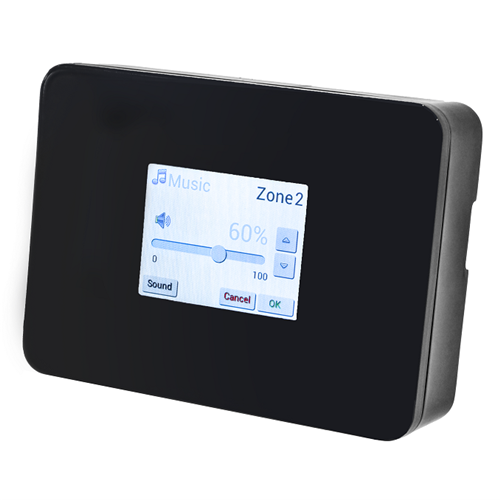

Roadworx Sound Masking Compact C2 Sound Masking System Controller 1 Channel

Product Code: RWSM-C2-1CH

Key Features
  • The RWSM-C2 Series is a complete sound masking system packed with advanced technologies yet simple to use with its touch screen interface.
  • Tailored for small and medium offices of approximately 465 m² or less, the RWSM-C2 provides optimum sound masking performance at a reasonable price.
  • 1 Channel
  • 12 Speaker Capacity
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx Sound Masking Compact C2 Sound Masking System Controller 1 Channel

The RWSM-C2 works with the complete range of Roadworx sound masking speakers therefore allowing the system to be installed in virtually any office configurations: open offices, closed offices, meeting rooms, ceiling tiles, open ceiling, raised floors, radiant metal ceilings, etc.

Each RWSM-C2 controller provides:
• Touch-screen user interface
• 1 or 2 speaker outputs (zones)
• Up to 12 speakers per zone
• Independent settings for each zone
• Volume adjustment
• Bass/treble adjustment
• 12 pre-set equalizers to fit the sound environment
• Adjustable ramp-up period.
• Music/Paging
• Paging trigger to lower sound masking volume while paging
• Emergency mute relay
• 2-Level pass code locking
• Versatile enclosure with multiple configurations:
• Desktop
• Wall-Mount
• Flush-Mount

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Speaker Outputs (Zones) RWSM-C2-2CH RWSM-C2-1CH
Nb Outputs (Zones) 2 1
Max Nb Speakers per Output 12 12
Max Total Speakers 24 12
Connector 2-pos. screw terminal
Sound Masking
Volume ±10 dB with respect to selected pre-set equalizer
Equalizer 12 pre-set equalizers to fit the sound masking environment and ±5dB Bass/Treble
Volume Ramp-Up User defined, 1day to 4 weeks
Music and Paging
Input 1 (Stereo, ±1.5V range)
Connector 3-pos. screw terminal (Left, Gnd, Right)
Mixer Independent for each zone
Volume 0-100% in 1% step
Equalizer ±5dB Bass/Treble
Emergency Mute Relay
Input 1
Connector 2-pos. screw terminal, isolated
Function Mute sound masking (and music/paging if required), for UL2572 compliance
Power
Rated Power 50W 25W
Operating Voltage 24V
Connectivity Barrel connector or 2-pos. screw terminal for wall-mount configuration
Physical
Size 168mm x 124mm x 47mm (6 5/8” x 4 7/8” x 1 13/16”)
Weight 450g (1.0lb)
Mounting Configuration Desktop, Wall-mount (with built-in key-holes), or Flush-mount*
Warranty
Warranty 5 years
Certifications – ETL Listed 3191772
UL 62368– Standard for Audio, Video and Similar Electronic Apparatus – Safety Requirements
FCC – EN 55103-1&2 – Electromagnetic compatibility-Product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use - Part 1: Emissions, Part 2: Immunity
Related ASTM Standards
ASTM E1374-06 (11) – Standard Guide for Open Office Acoustics and Applicable ASTM Standards
ASTM E1573-09 – Standard Test Method for Evaluating Masking Sound in Open Office Using A-Weighted and One-Third Octave Band Sound Pressure Levels
ASTM E1130-08 – Standard Test Method for Objective Measurement of Speech Privacy in Open Offices Using Articulation Index
ASTM E2638 – Standard Test Method for Objective Measurement of Speech Privacy Provide by Closed Rooms
*Can be installed directly in the wall or using a 3-Gang NEMA device box
