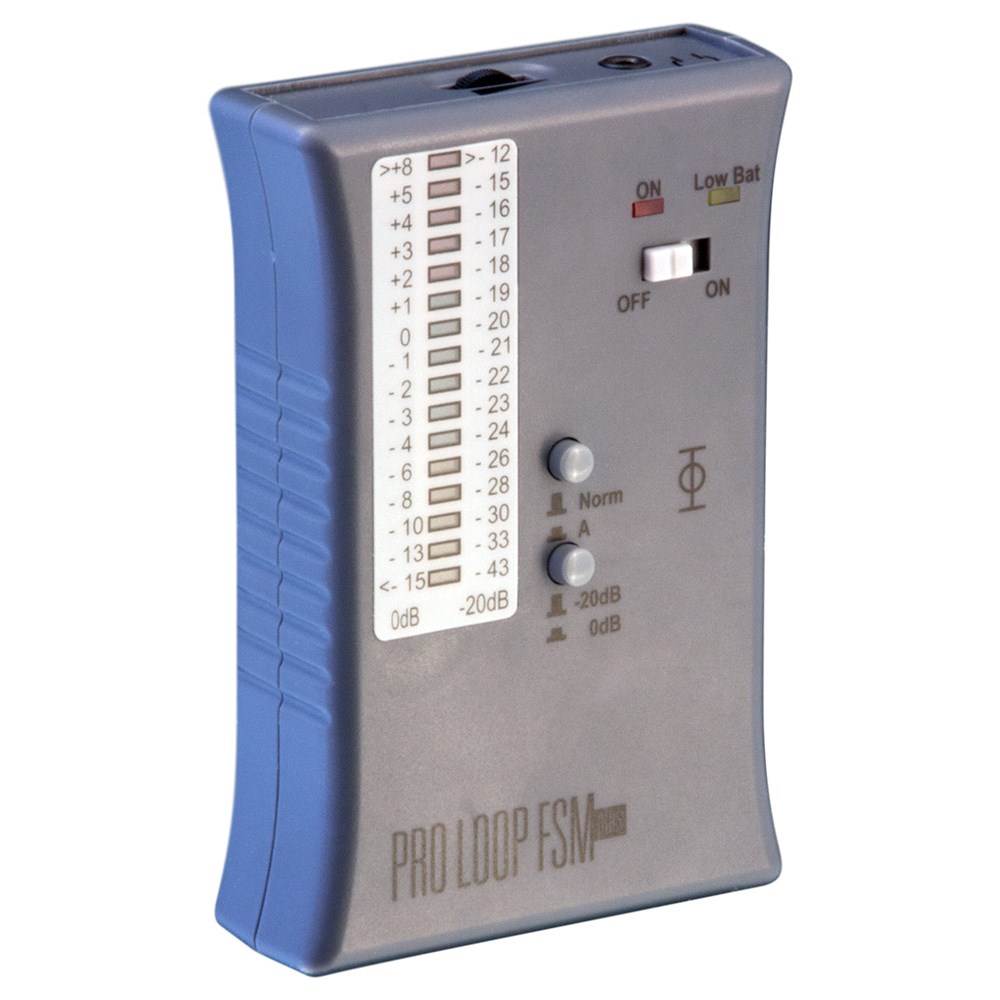

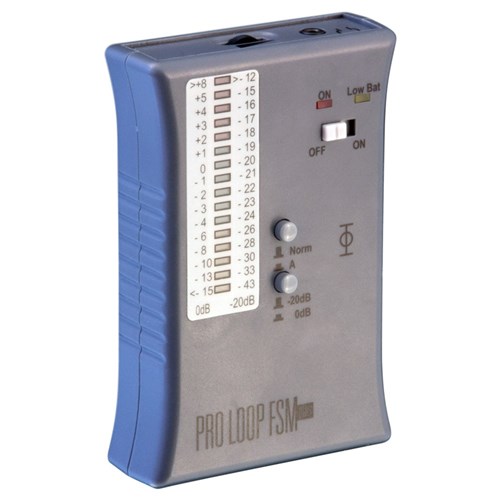

AUDIOropa ProLoop FSM Plus Field Strength Meter

Product Code: HT A-4292-0

Key Features
  • Compliant with IEC 60118-4:006 and BS for testing equipment used to evaluate induction loop systems.
  • True RMS: 125 ms average time
  • Crest factor: 3
  • A filter
  • Measuring range: +6 dB ...-40 dB (0 dB = 400mA/m)
  • Power supply: 2 x 1.5V AA batteries, long battery life
  • Display: Battery status control via LED
  • Field strength: via LED-scale (approx. 1 dB resolution)
  • Headphone jack with volume control
  • Dimensions (W x H x D): 83 x 126 x 35 mm
  • Weight: approx. 170 g (incl. batteries)
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AUDIOropa ProLoop FSM Plus Field Strength Meter

The PROLOOP FSMplus is a mea­suring device that measures the magnetic field strength of induction loop systems according to IEC 60118-4:2006 and BS 6083, Para. 4. The device delivers reliable RMS values on the output level, response frequency, AGC function (Automatic Gain Control), distortion and background noise in the induction looped tested. In addition, it enables the user to make an acoustic evaluation of the sound using signal reproduction via earphones.

Exempt from GST under exemption code R11

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Compliant with IEC 60118-4:006 and BS for testing equipment used to evaluate induction loop systems.
True RMS: 125 ms average time
A filter
Measuring range +6 dB ...-40 dB (0 dB = 400mA/m)
Power supply 2x 1.5V AA batteries, long battery life
Display Battery status control via LED
  Field strenght via LED-Scala (ca. 1dB resolution)
Output Headphone jack with volume control
Dimensions 83 x 126 x 35 mm (W x H x D)
Weight ca. 170g (incl. batteries)
