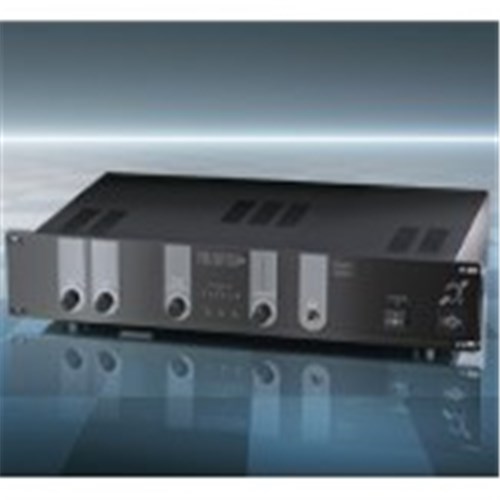

AUDIOropa ProLoop DCC Plus Loop Amplifier

The PROLOOP DCCplus is designed for rooms of up to 1000 m² with loop signals and is the ideal solution for events and meeting venues. Each of the two XLR(F) inputs can be configured as LINE (symmetrical) or as microphone input (asymmetrical). The equipment provides an output of up to 12 A RMS and guarantees secure audio transmission. The Automatic Gain Control hereby ensures good sound reproduction at constant field strength and high stability. For standard and low overspill supply Beyond the standard application the PROLOOP DCCplus is also suitable for the realisation of low overspill loop systems. This requires two PROLOOP DCCplus devices. The devices are connected via the integrated jack sockets “Slave In” and “Slave Out”. Simple and safe handling High output current: 12 A RMS Main transfer switch 115 / 230 V AC Active protection against short circuits Two XLR(F)-sockets configurable as Microphone input (amplifier setting, phantom feed) or LINE-input (amplifier setting) 100-V-priority input for the connection of ELA systems Separate treble/base regulation Display of loop current 6.3-mm-headset socket to monitor audio signals Control to reduce metal losses Suitable for the set-up of low overspill systems 19” rack casing
