PTZOptics SuperJoy Camera Joystick Controller

Product Code: HUD-PT-SUPERJOY-G1

Key Features
  • Durable metal housing
  • PTZOptics VISCA over IP & Serial control
  • Limited NDI® & Sony® control
  • PTZOptics Camera On Screen Display control
  • Full Pan / Tilt / Zoom camera control
  • P/T/Z Speed adjustment on the fly
  • Direct exposure & white balance control
  • 4 Camera Control Groups
  • 7 Cameras per Camera Group
  • 255 camera presets, 9 Quick presets
  • 4 Customizable buttons (TCP, UDP, & HTTP)
  • Fine tune zoom & focus control dials
  • Buttons glow when available
  • RTSP output via HDMI
  • PTZOptics Focus Lock & Unlock
  • Large LCD screen with controller status
  • Import / Export settings via network & USB
$2,363.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

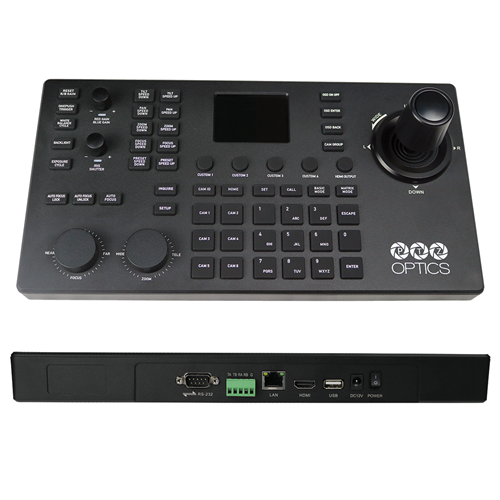

PTZOptics SuperJoy Camera Joystick Controller

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

Custom Control Across a Variety of Cameras and Devices

The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

  • Simultaneous pan, tilt and zoom control across IP, NDI, and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek
  • If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
  • Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to eight cameras each

Streamlined, Real-Time Production

The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.

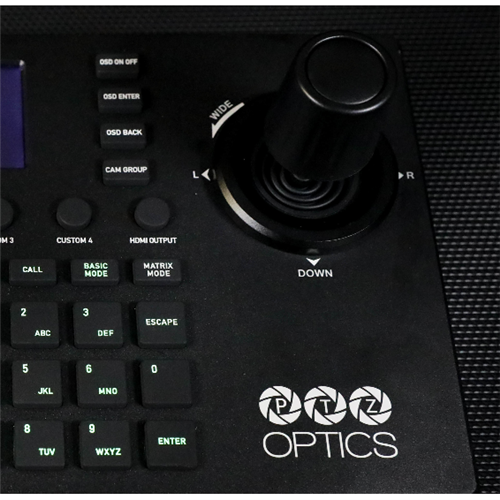

  • Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required

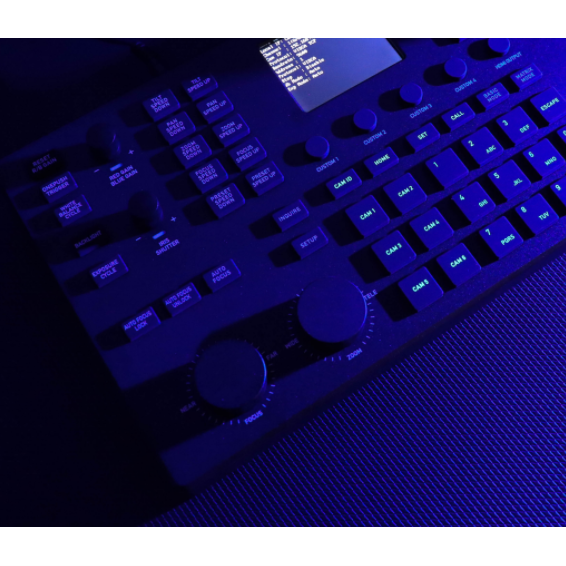

  • Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring
  • Use the built-in decoder with HDMI output for setup and monitoring, while current configuration status is displayed on the SuperJoy’s built-in LCD screen

From Power Users to Novices, a Controller for Everyone

With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.

  • Use Basic and Basic Plus mode to limit functions to presets and single-camera control
  • Matrix mode enables operators to call presets across up to three cameras
  • Expert users can program custom buttons for production automation





Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Connections RS-232, RS-485, RS-422, RJ-45
Control Protocols VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & ND
Max Cameras 28 cameras total (4 groups of 7 channels)
Recommended Max Distance RS-232 / RS-422: 50 ft | 15m
RS-485: 3,937 ft | 1200m
Ethernet: 328 ft | 100m
Baud rate 1200 ~ 19200 bps
Power 6W | 12VDC / PoE (802.3af) (Only use one (1) power source at a time.)
Working Temp 14° F ~ 122° F | -10° C ~ +50° C
Working Humidity 10% ~ 90% (non-condensation)
Weight  3.75 lbs | 1.70 kg
Dimensions (in.) 13.94 W x 7.05 D x 3.98 H
Dimensions (mm.) 370 W x 180 D x 101 H
What's in the Box:
PT-SUPERJOY-G1 Joystick Controller Yes
12V 2A DC International Power Supply Yes
RS-232C cable 8ft (2.4m) Yes
PT-SUPERJOY-G1 Quick Start Guide Yes
