PTZOptics Producer-4K Bundle

Product Code: HUD-PT20X4KPROD-SJOY

Key Features

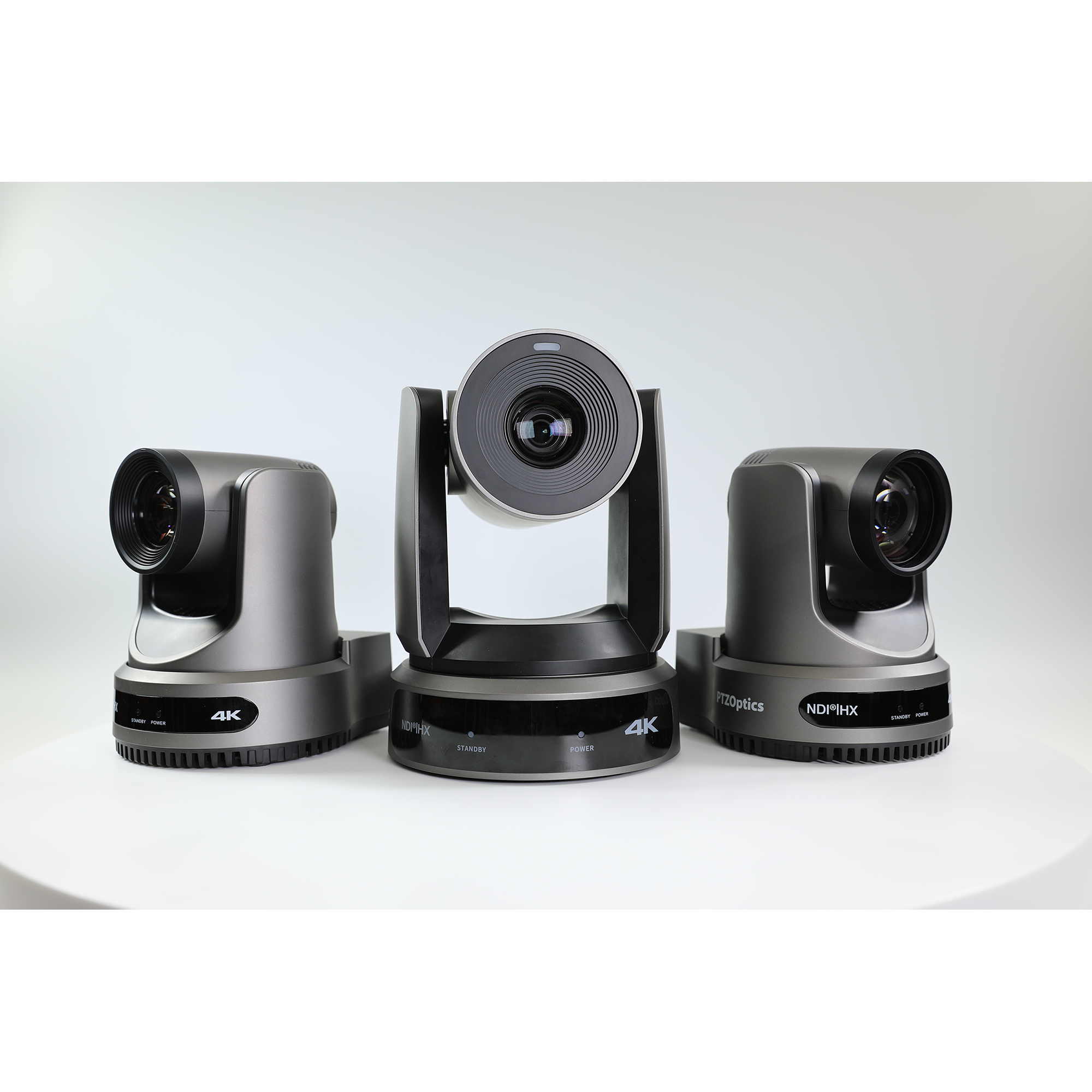

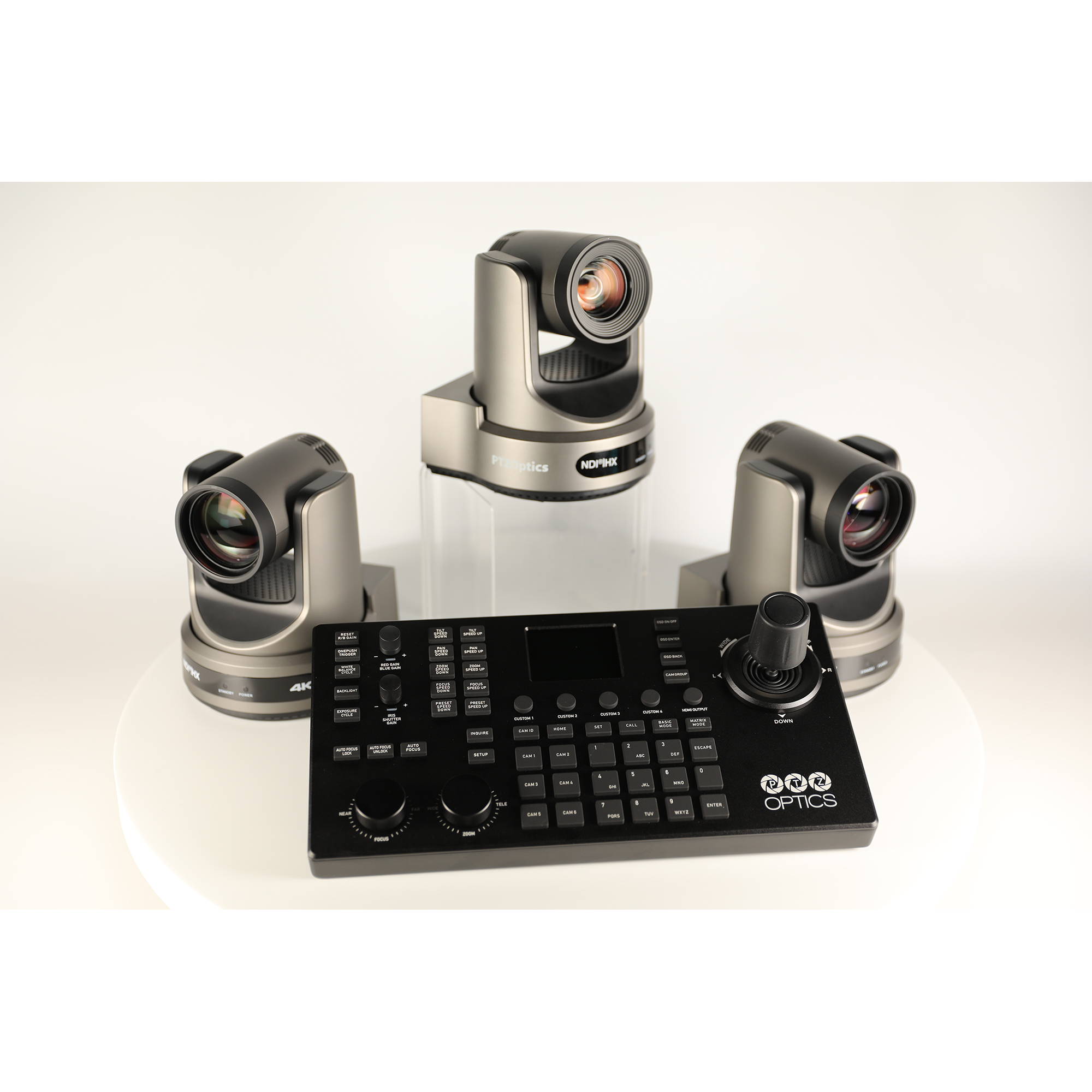

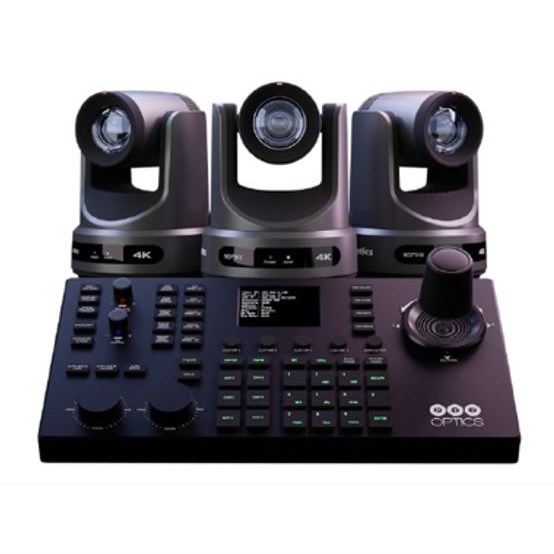

  • Includes: 3 x Move 4K 20x Grey cameras and 1 x Superjoy Joystick Controller
  • Easy Setup
  • PoE-Ready
  • 4K Resolution
  • Seamless Integration
$16,883.72 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Producer-4K Bundle

Capture every detail in ultra-high-definition 4K with 3 award-winning 20X Move 4K cameras. Each camera includes our most advanced auto-tracking capabilities and comes native with NDI®|HX for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of professionals seeking the best.



Designed with the Future in Mind

Experience a more intelligent video production workflow with the Move 4K's updated web user interface. The Move cameras offer built-in auto-tracking capabilities — no need to run software on another computer. Plus, PTZOptics’ one-click firmware updates from the web UI make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. With SDI, HDMI, USB, and IP output options, plus PoE, the Move 4K can fit seamlessly into any production scenario.

angle_img


Easy Integration into Existing Production Systems

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or use the included hardware joystick controllers, the SuperJoy. Users can also live stream directly to content delivery networks such as Facebook and Youtube. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

angle_img


PTZOptics CMP: Multiple Cameras, One Simple Solution

No matter how many cameras are deployed, the new PTZOptics Camera Management Platform, included in both Producer Bundles, allows users to manage multiple cameras at once. In-app tools like color correction can help easily change the look of one or multiple cameras on the fly. The PTZOptics Camera Management Platform is compatible with any desktop operating system—Windows, macOS, and Linux—and fits easily into any workflow using OBS, vMix, and other video production software.

angle_img





Producer-4K Bundle Unboxing and Setup Videos



Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Move 4K Camera Specs:



Image Sensor & Lens Video Sensor 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Lens (35mm Equivalencies) 12x: 25mm ~ 299mm, F1.8 ~ F2.6
20x: 31mm ~ 589mm, F1.58 ~ F3.95
30x: 32mm ~ 825mm, F1.61 ~ F5.19
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View 12x: Horizontal: 6.9 (tele) ~ 72.5 (wide), Vertical: 3.9 (tele) ~ 44.8 (wide)
20x: Horizontal: 3.5 (tele) ~ 60.7 (wide), Vertical: 1.9 (tele) ~ 34.1 (wide)
30x: Horizontal: 2.5 (tele) ~ 59.2 (wide), Vertical: 1.4 (tele) ~ 34.6 (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan/Tilt Movement Pan Speed 1.7 ~ 100 /s
Tilt Movement +90 to -30
Tilt Speed 1.7 ~ 69.9
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Options Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Physical Specifications Material Aluminum, Plastic
Color White and Gray
Dimensions (W x D x H) 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
Weight 12x and 20x: 3.25 lbs (1.47 kg)
30x: 4.41 lbs (2.0 kg)
Working Environment Indoor
Operating Temperature 14 F ~ 104 F (-10 C to 40 C)
Storage Temperature -40 F ~ 140 F (-40 C to 60 C)
Rear Board Connectors HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75 , Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at)
Power Jack JEITA type (DC IN 12V)

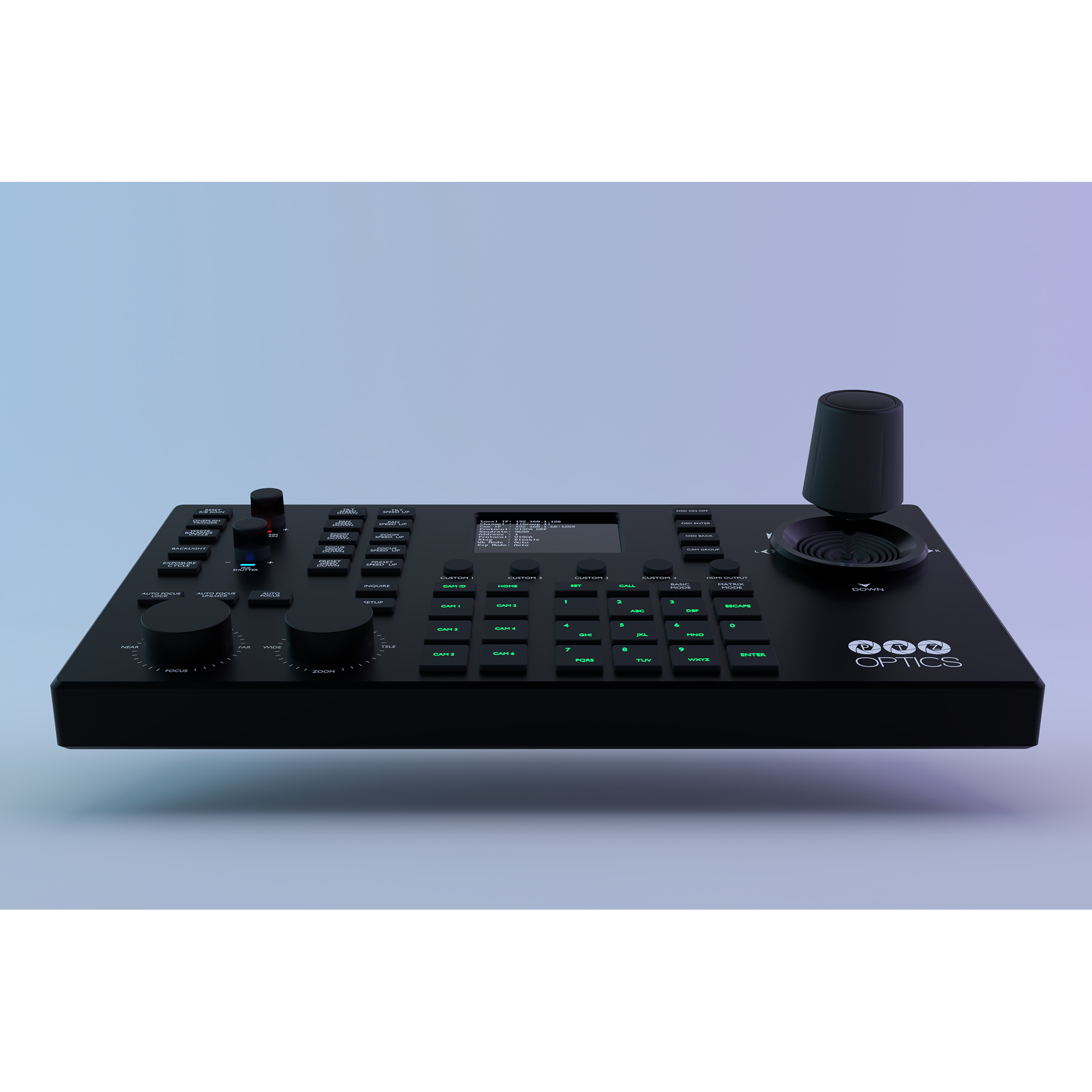

SuperJoy Joystick Specs:

Technical Specifications Connections RS-232, RS-485, RS-422, RJ-45
Control Protocols VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI®
Max Cameras 28 cameras total (5 groups of 7 channels)
Recommended Max Distance RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m
Baud rate 1200 -19200 bps
Operation Specifications Power 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.)
Working Temp 14° F -122° F | -10° C +50°C
Working Humidity 10% ~ 90% (non-condensation)
Weight 3.75 lbs | 1.70 kg
Dimensions (in.) 13.94 W x 7.05 D x 3.98 H
Dimensions (mm.) 370 W x 180 D x 101 H
