PTZOptics 1080p Producer-SE Bundle

Product Code: HUD-PT20XSEPROD-JOY4

Key Features

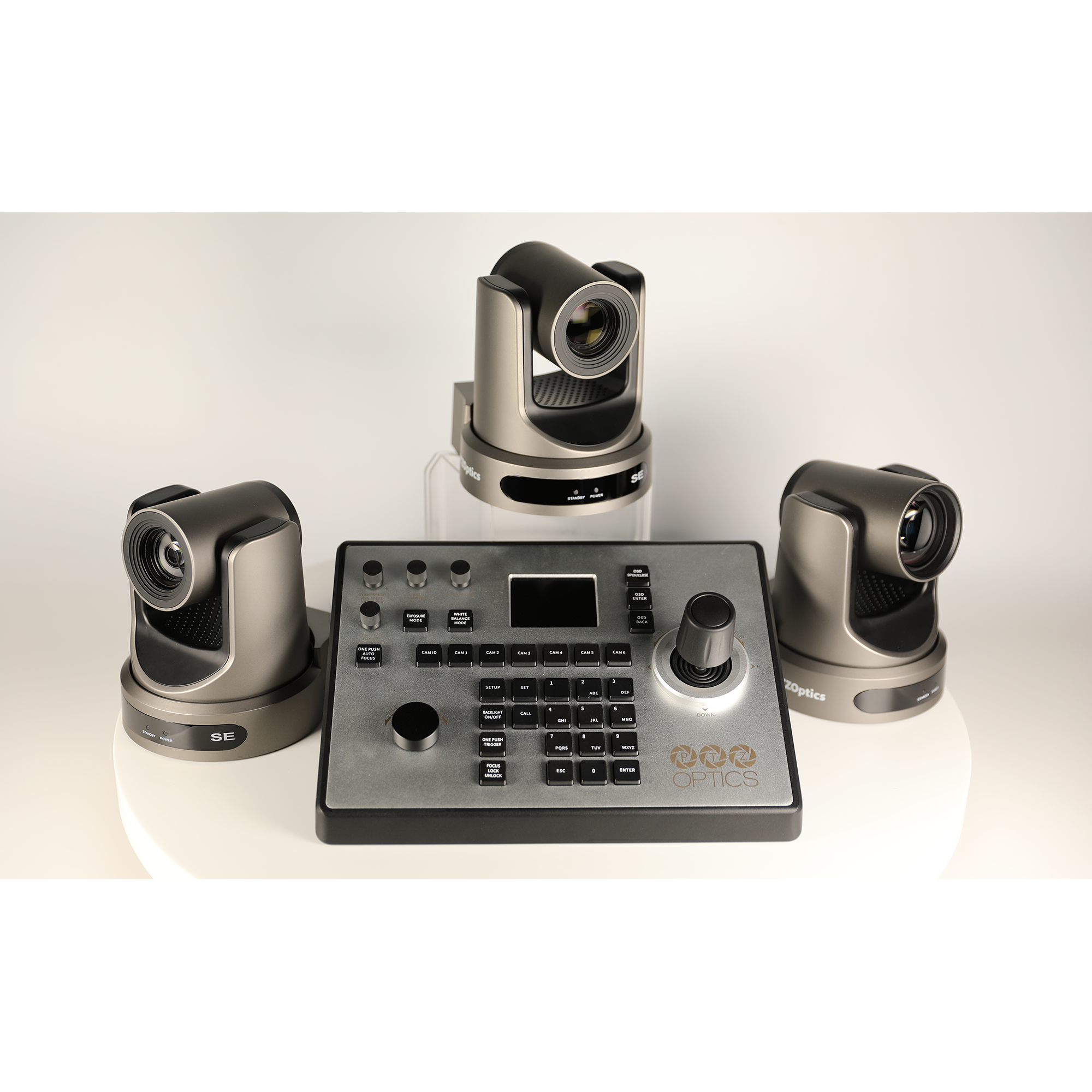

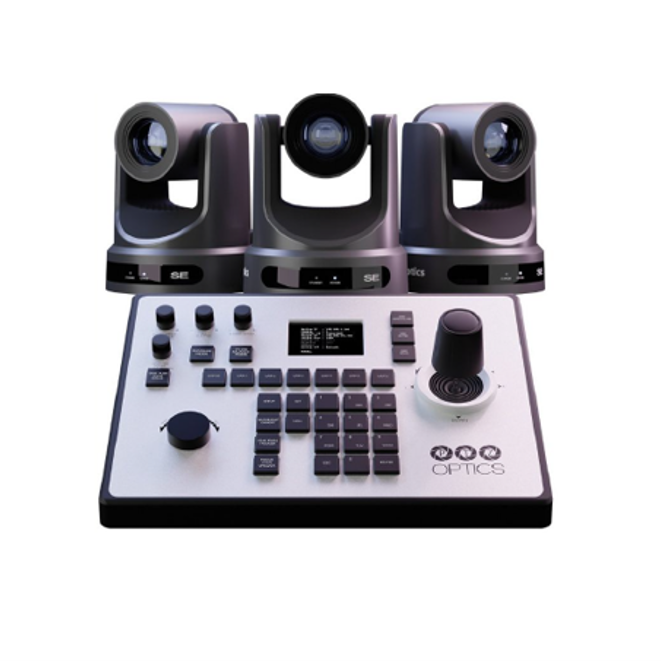

  • Includes: 3 x Move SE 20x Grey cameras and 1 x Joy G4 Joystick Controller
  • Easy Setup
  • PoE-Ready
  • 1080p Resolution
  • Seamless Integration
$9,836.79 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics 1080p Producer-SE Bundle

With 3 award-winning 20X Move SE cameras, the Producer-SE bundle delivers precision in every shot, even from a distance. Enjoy 1080p clarity, bringing lifelike quality to every frame along with convenient auto-tracking capabilities. Plus, streamline your setup process with the included PT-JOY-G4 IP/serial connected joystick controller. Seamlessly integrate, manage multiple settings, and enjoy intuitive control for a budget-friendly price. Offering an array of outputs, from SDI to HDMI, USB and IP, the Move SE cameras are the epitome of versatility and excellence.



Designed with the Future in Mind

Experience a more intelligent video production workflow with the Move SE's updated web user interface. The Move cameras offer built-in auto-tracking capabilities — no need to run software on another computer. Plus, PTZOptics’ one-click firmware updates from the web UI make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. With SDI, HDMI, USB, and IP output options, plus PoE, the Move SE can fit seamlessly into any production scenario.

angle_img


Easy Integration into Existing Production Systems

Users can control Move SE cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or use the included hardware joystick controllers, the PT-JOY-G4. Users can also live stream directly to content delivery networks such as Facebook and Youtube. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

angle_img


PTZOptics CMP: Multiple Cameras, One Simple Solution

No matter how many cameras are deployed, the new PTZOptics Camera Management Platform, included in both Producer Bundles, allows users to manage multiple cameras at once. In-app tools like color correction can help easily change the look of one or multiple cameras on the fly. The PTZOptics Camera Management Platform is compatible with any desktop operating system—Windows, macOS, and Linux—and fits easily into any workflow using OBS, vMix, and other video production software.

angle_img







Producer-SE Bundle Unboxing and Setup Videos:



Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Move SE Camera Specs:



Image Sensor & Lens Video Sensor 1/2.8 , CMOS, Effective Pixel: 2.07M
Resolution and Frame Rate 1080p-60/50/30/25/59.94/29.97, 720p-60/50
Digital Zoom Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Lens 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Supported
Digital Noise Reduction 2D & 3D Digital Noise Reductions
Field of View 12x: Horizontal: 6.9 (tele) ~ 72.5 (wide), Vertical: 3.9 (tele) ~ 44.8 (wide)
20x: Horizontal: 3.4 (tele) ~ 60.7 (wide), Vertical: 1.9 (tele) ~ 34.1 (wide)
30x: Horizontal: 2.3 (tele) ~ 60.7 (wide), Vertical: 1.28 (tele) ~ 34.1 (wide)
Pan/Tilt Movement Pan Movement 170
Pan Speed 1.7 ~ 100 /s
Tilt Movement +90 to -30
Tilt Speed 1.7 ~ 69.9
Image Flip, Mirror and Freeze Supported
Presets 255 Presets
Preset Accuracy 0.1
Power Options Power Supply DC 12V / PoE (802.3af)
Input Power 2A (Max)
Physical Specifications Material Aluminum, Plastic
Color White and Gray
Dimensions (W x D x H) 5.6 W x 6.7 D 6.5 H (7.88 H max height w/ tilt up)
142mm W x 169mm D x 164 H (189mm H max height w/ tilt up)m
Weight 3.2 lbs. (1.445 kg)
Working Environment Indoor
Operating Temperature 14 F ~ 104 F (-10 C to 40 C)
Storage Temperature -40 F ~ 140 F (-40 C to 60 C)
Rear Board Connectors HD Video Output 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
1x HDMI: version 1.3
1x 3G-SDI: BNC type, 800mVP-p, 75 , along to SMPTE 424M standard, USB 3.0 Type C
1x USB 3.0 Type C
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
IR 4x IR Addresses, Max distance 30ft / 9m
Power Jack JEITA type (DC IN 12V)
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE (802.3af)

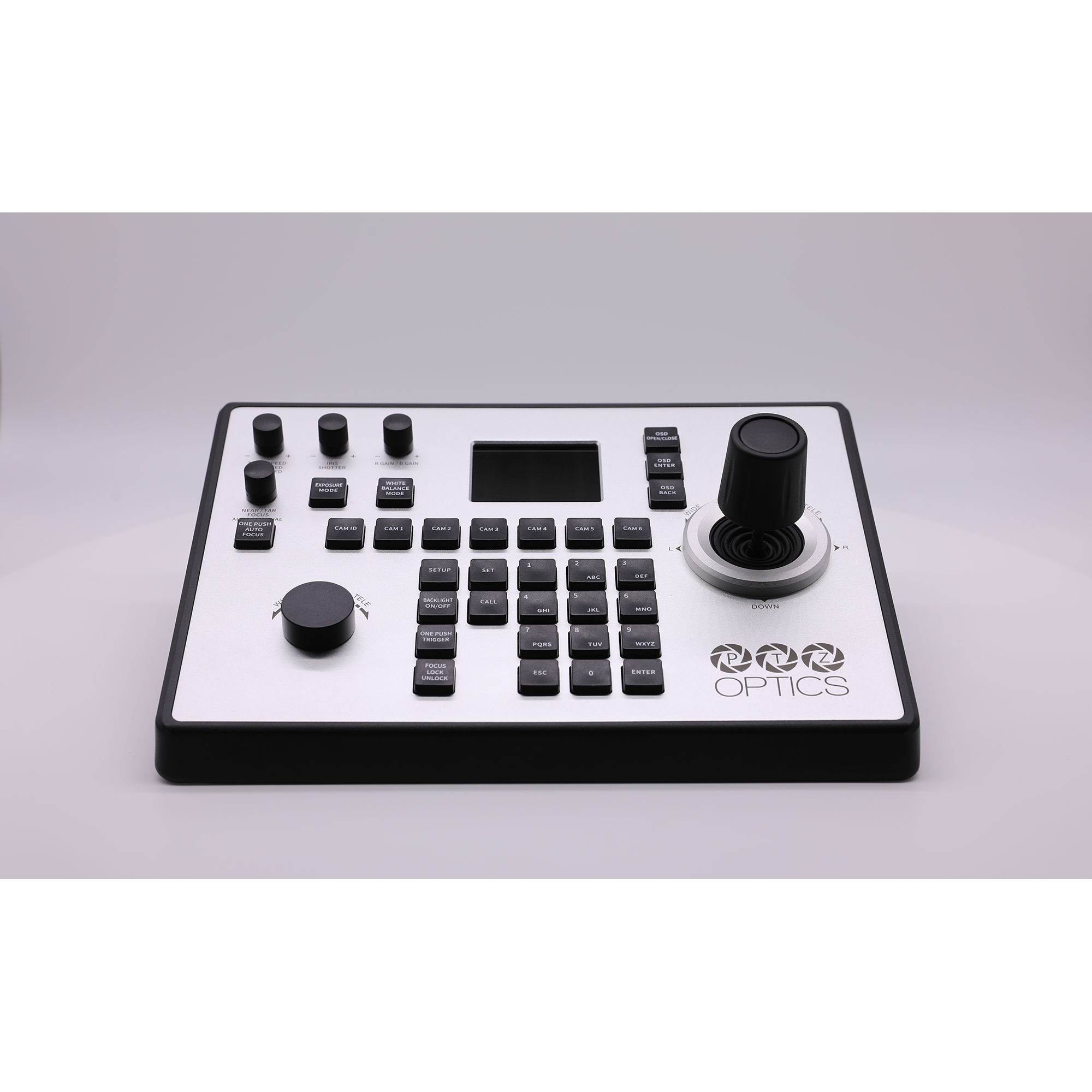

PT-JOY-G4 Joystick Specs:

Key Technical Specifications Connections RS-232, RS-485, RS-422, RJ-45
Maximum Cameras 253 cameras via network 7 cameras via serial VISCA
Recommended Maximum Distance RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m)
Baud Rate 1200 ~ 19200 bps
Operation Specifications Power 6W (12VDC) / PoE (802.3af)
Working Temp 14° F ~ 122° F (-10° C ~ +50° C)
Working Humidity 10% ~ 90% (non-condensation)
Weight 4.45 lbs (2.02 kg)
Dimensions (in.) 11.938 W x 9.25 D x 4.25 H
Dimensions (mm) 303.23 W x 234.95 D x 107.95 H
Other Warranty 2 Years
