Platinum Tools 105020 EZ-RJ45 Shielded Connector CAT5e/6 Internal Ground - Single

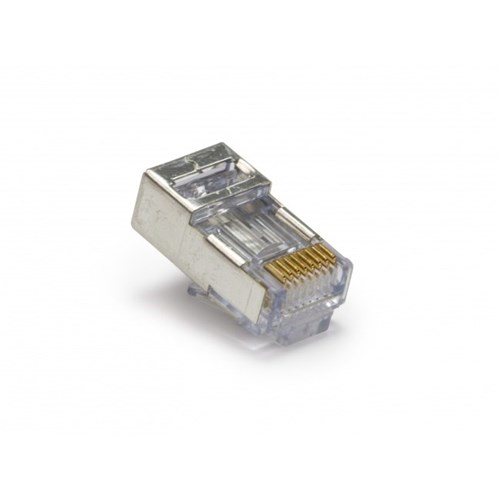

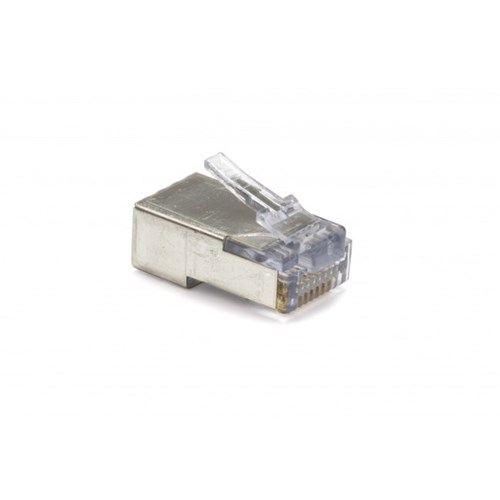

The Original EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.

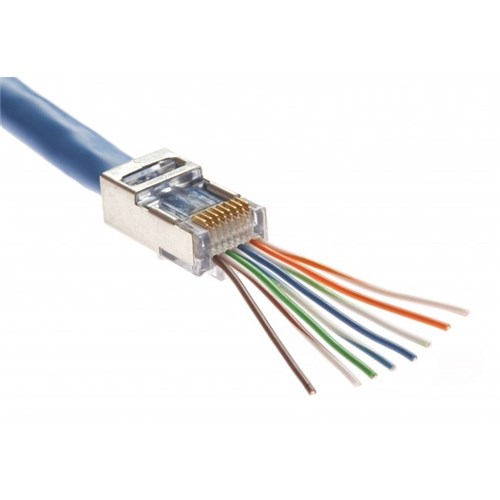

• EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
• Significantly improve Shannon capacity.
• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
• Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.016mm (0.040")
• For solid round or stranded wire cables.
• Made in the USA
• TAA Compliant
• NOT intended to be compatible with other brands

APPLICATION

Hospitals < EMI / RFI >, Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers.

• Can be prepped for use with CAT5e and CAT6+ shielded cable

EZ-RJ45® Cat5/5e & Cat6 Connectors.

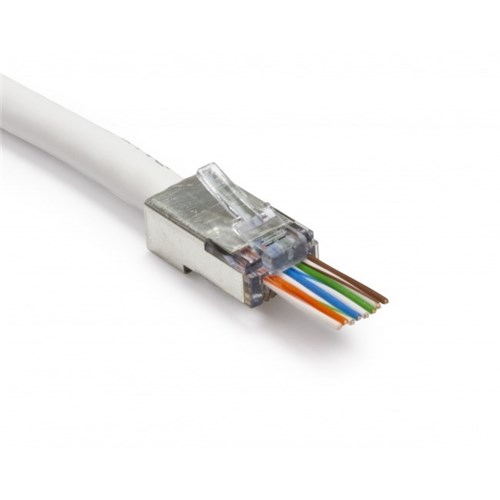

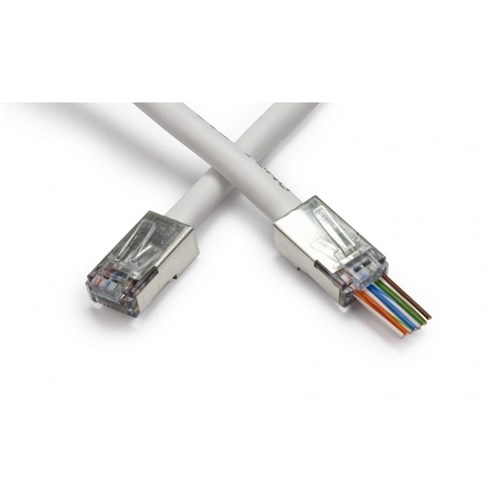

Simplify twisted pair terminations by allowing the wires
to be inserted through the connector and out the to front,
easily verify the proper wiring order. Pulling the connector
down over the cable jacket and seating it tightly in the
rear of the connector optimizes electrical performance of
the termination. Reducing the distance between the wire
twists and contacts also improves performance. Terminate
with the exclusive EZ-RJ45 Crimp Tools - crimp and trim
in one cycle.

Technical / Features

• Through holes allow wire pairs to be inserted through
front of connector for faster terminations
• EZ to verify wire sequence, reduces scrap
• More reliable and higher performance
• Works with solid or stranded wire – separate connectors
not required, reducing inventory and confusion
• Simple one-piece design - bars or liners not required
• Use in Category 3, 5, 5E or 6 compliant data networks
• UL rated, FCC & RoHS compliant
