  • Philips 55 Inch X Series FHD 500nit 3.5mm Bezel to Bezel Video Wall Display with Direct LED Backlight

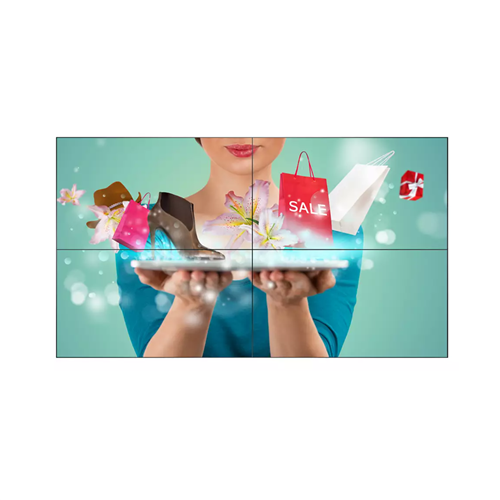

Philips 55 Inch X Series FHD 500nit 3.5mm Bezel to Bezel Video Wall Display with Direct LED Backlight

Product Code: PHL 55BDL2105X

Key Features

Designed for 24/7 operation, the Philips X-Line Videowall display captivates customer attention with its immersive moving content. CMND makes managing your promotions and retail content easy, whilst FailOver adds greater peace of mind.

  • 55"
  • Direct LED Backlight
  • Full HD
  • 500cd/m²
$2,498.57 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 55 inch X Series FHD 500nit 3.5mm Bezel to Bezel Professional Video Wall Display with Direct LED Backlight

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Ultra-narrow bezels. For distraction-free images

Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size (metric) 138.7  cm
Diagonal screen size (inch) 54.5  inch
Panel resolution 1920x1080p
Optimum resolution 1920 x 1080 @ 60 Hz
Brightness 500  cd/m²
Dynamic contrast ratio 500,000:1
Response time (typical) 8  ms
Aspect ratio 16:9
Viewing angle (horizontal) 178  degree
Viewing angle (vertical) 178  degree
Pixel pitch 0.63 x 0.63 mm
Display colors 16.7 M
Contrast ratio (typical) 1200:1
Haze 25%
Connectivity
Video input Display Port1.2 (x1)
  DVI-D (x1)
  HDMI 2.0 (x2)
  VGA (Analog D-Sub) (x1)
Audio input 3.5 mm mini jack (x1)
Video output DisplayPort 1.2 (x1)
Audio output 3.5 mm Mini Jack (x1)
External control IR (in) 3.5 mm jack
  LAN RJ45 (x2)
  RS232 (in/out) RJ45
Other connections OPS
  USB 2.0 (x1)
  Thermal sensor
Convenience
Placement Landscape (24/7)
  Portrait (24/7)
Tiled Matrix Up to 15 x 15
Screen saving functions Pixel Shift, Low Bright
Signal loop through DisplayPort
  RJ45
Ease of installation Carrying Handles
  Smart Insert
Energy saving functions Smart Power
Network controllable LAN (RJ45)
Power
Consumption (Typical) 180W
Consumption (Max) 340W
Consumption (On mode) 140W
Standby power consumption 0.5W
Energy Label Class G
Sound
Built-in speakers 2 x 10W (RMS)
Accessories
Included Accessories Gap pad x3
  IR sensor cable (1.8 m) (x1)
  Quick start guide (x1)
  Remote control & AAA batteries
  RJ45 / RS232 converter
  Wire Clamper (x3)
  Power cord
  DP cable (x1)
  RJ45 cable (x1)
  Edge alignment pin (x2)
  Kit-1 (x1)
  Kit-2 (x2)
Dimensions
Smart Insert mount 100mm x 100mm, 6xM4xL6
Set Width 1213.5 mm
Set Height 684.3  mm
Set Depth 97.8 mm(D@WallMount)/97.8 mm(D@Handle)  mm
Bezel width 2.3 mm + 1.2 mm
Wall Mount 400mm x 400mm, M6
Product weight 28.8 kg
