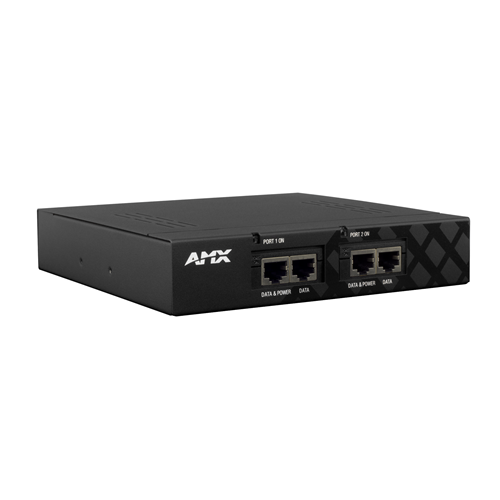

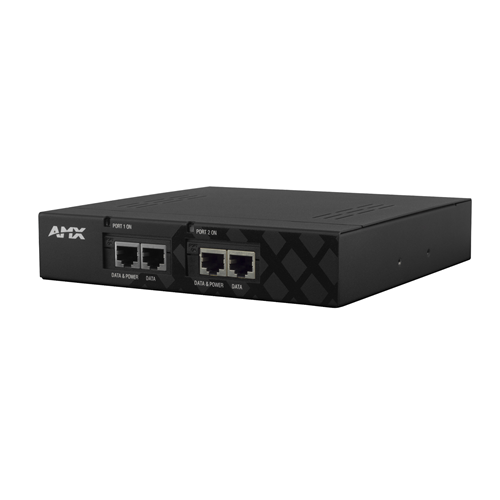

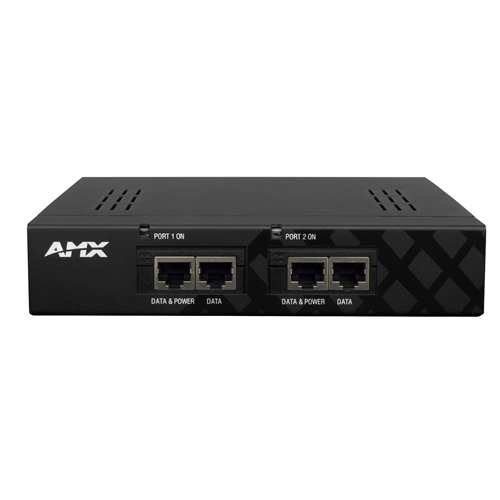

AMX PDXL-2 - Dual Power over DXLink Controller

Product Code: AMX FG1090-170

Key Features
Dual Power over DXLink Controller powers any two DXLink devices by "injecting" power through the twisted pair cable; also accepts I/O control from a NetLinx controller allowing power down capabilities to either (or both) of the connected DXLink devices
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The PDXL-2 is a Power over DXLink injector which allows for remote powering of any two DXLink devices by "injecting" power through the twisted pair cable. The PDXL-2 also accepts I/O control from a NetLinx controller allowing power down capabilities to either (or both) of the connected DXLink devices to achieve power savings when they are not in use.

The PDXL-2 Dual Power over DXLINK Controller provides the ability to power a point-to-point DXLink Transmitter to DXLink Receiver without the need for an AC outlet in proximity to the location of the DXLink devices. When used with a NetLinx controller, the PDXL-2 can power down the DXLink devices as part of a standby mode for an entire room to reduce energy usage.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Dimensions (HWD) 1 7/16" x 7" x 6 13/16" (36.3 mm x 177.8 mm x 172.4 mm)
Weight 2.25 lbs (1.02 kg)
Power Requirements
  • Power Connector: (1) 100-240V, 50/60 Hz, 1.6 A
  • Power Consumption:
    • Maximum Current Draw: 1.0 A
    • Typical Current Draw: 0.35 A

Note: Power consumption varies based on the number and type of powered devices
Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Temperature (Storage): 4 to 158 F ( 20 to 70 C)
  • Humidity (Operating): 90%, Non-condensing (maximum)
  • Humidity (Storage): 95%, Non-condensing (maximum)
  • Operating Altitude: 1000 to 10,000 ft. ( 304.8 to 3048 m)
DXLink
  • DXLink Ports: (2) sets of 2 RJ-45 LAN connectors
  • Transport Layer Throughput: 10.2 Gbps pass thru
  • Power over DXLink Output: (per output)
    • Pin Assignment & Polarity 4/5 (+), 7/8 ( )
    • Output Power Voltage 55 VDC
    • Output Power 30 Watts (guaranteed)
Controls
  • Relay Connection Type: (1) 4-pin 3.5 mm (female) captive-wire connectors
    • GND
    • Relay Port2
    • Relay Port1
    • +12V
  • Relay Description:
    • NetLinx Ports 1 & 2
    • Channels 1-2
    • Each relay can switch up to 24 VDC or 28 VAC @ 1 A
    • Each relay is independently controlled
  • Relays: 2

Note: Connecting the PDXL-2 to the I/O port on the NetLinx Central Controller enables you to power off devices
Indicators
  • (2) LEDs (1 for each DXLink Powered Output)
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
General

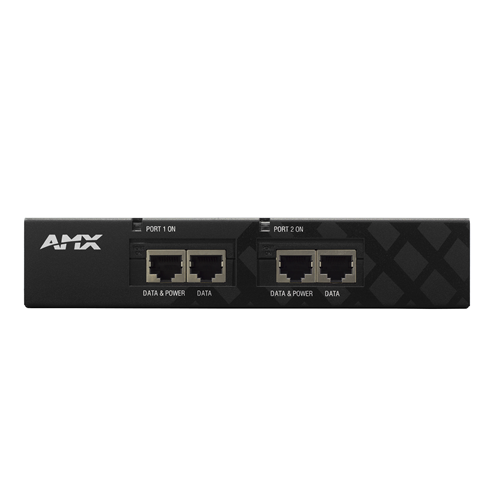

  • Front Components
    • AC Power Indicator
    • Channel Power Indicator

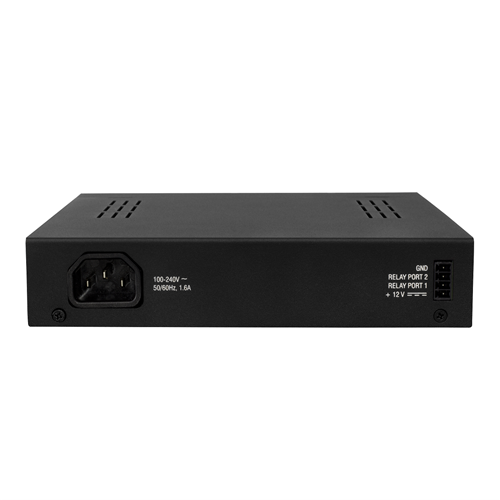

  • Back Components
    • DXLink Ports
    • Power Connector
  • Certifications
    • FCC Part 15 Class A
    • CE EN 55022 Class A
    • CE EN 55024
    • CE EN 60950-1
    • IEC 60950-1
    • C-Tick CISPR 22 Class A
    • UL 60950-1
  • Mounting Options
    • Compatible with all V Style versatile mounting options including rack, surface or pole
  • Compatible AMX Products
    • DXLink HDMI Transmitter Module
    • DXLink Multi-Format Transmitter Module
    • DXLink Multi-Format Decor Style Wallplate Transmitters (US)
    • DXLink Multi-Format Wallplate Transmitters
    • DXLink HDMI Receiver Module
Certification

PDXL-2 IECEE CB Test Certificate

PDXL-2 CE Declaration of Conformity

PDXL-2 UL Certificate of Compliance
FG Numbers FG1090-170
