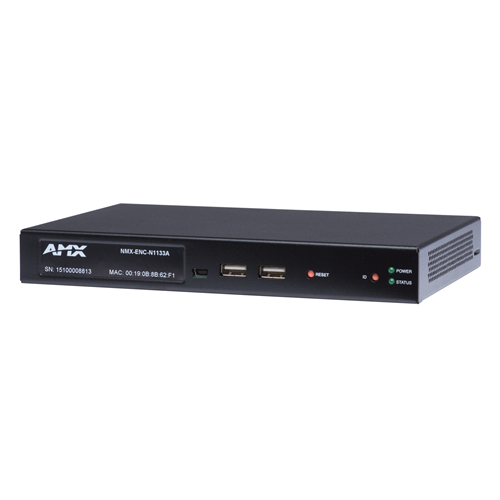

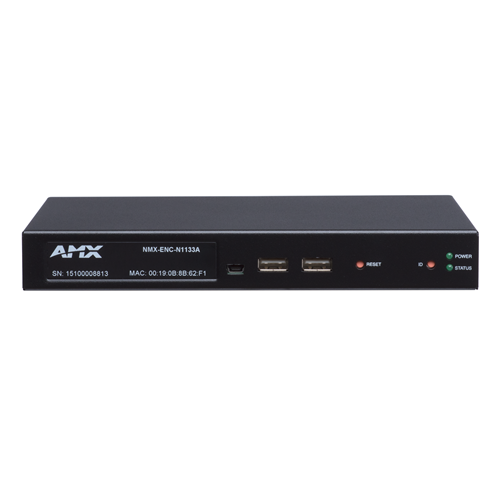

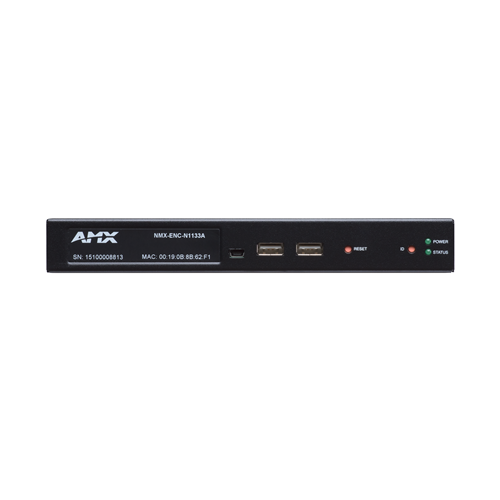

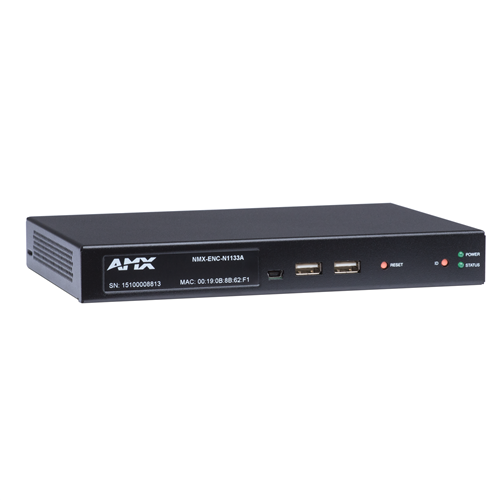

AMX NMX-ENC-N1133A - Encoder

The new NMX-ENC-N1133A model features improved digital pixel reproduction and cut the already imperceptible latency in half. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly. It has separate HDMI and VGA/RGB inputs, supports PoE, AES67, and has a separate SFP port. The SFP fiber path allows visually lossless video to be routed on a fiber-only network and extend signals beyond the reach of category cable. Added USB connectivity will enable users to extend USB over IP for touch-enabled and KVM applications.

Features

Output Scaling  Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity

1 Frame Latency  Same as HDBaseT

Minimal Proprietary Compression (MPC)  Visually lossless MPC algorithm applied applied to all resolutions

Optional Compression  Available option to disable all compression

Power Over Ethernet (PoE)  PoE eliminates the need for power supply

Infrared (IR)  Infrared emitter connection allows control of low-cost, IR-only display devices

Onboard Control  All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices

Unmatched Flexibility  Highly competitive pricing for matrices up to 32x32, or higher with the help of our design experts

Separate Inputs  Separate HDMI and VGA input connectors on the encoder

SFP Fiber/RJ45 Ports  Encoder features SFP fiber/RJ45 copper network ports with USB control inputs for KVM-over-IP keyboard and mouse operation

Stand Alone or Card  Available as a stand alone device, or card for use with NMX-ACC-N9206

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2 1 seamless presentation switcher up to mid-size matrix switcher using off-the-shelf network switches.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.
