AMX NMX-ENC-N1115-WP-WH - Wallplate Encoder White

Product Code: AMX FGN1115-WP-WH

Key Features
SVSI Decor Style Wallplate Minimal Compression Video over IP N1115 Encoder with Ethernet port, KVM-over-IP keyboard and mouse operation, serial, audio, VGA, and HDMI video connections, white
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The N1000 Series Encoders and Decoders are an affordable local AV-over-IP switching solution that packetizes video into a minimally compressed IP format that provides excellent video quality at low latencies. This compression is perfect for point-to-point video distribution, small 2x1 switching applications, and larger switching applications (for example, 32x32), all using off-the-shelf layer-3 network switches.

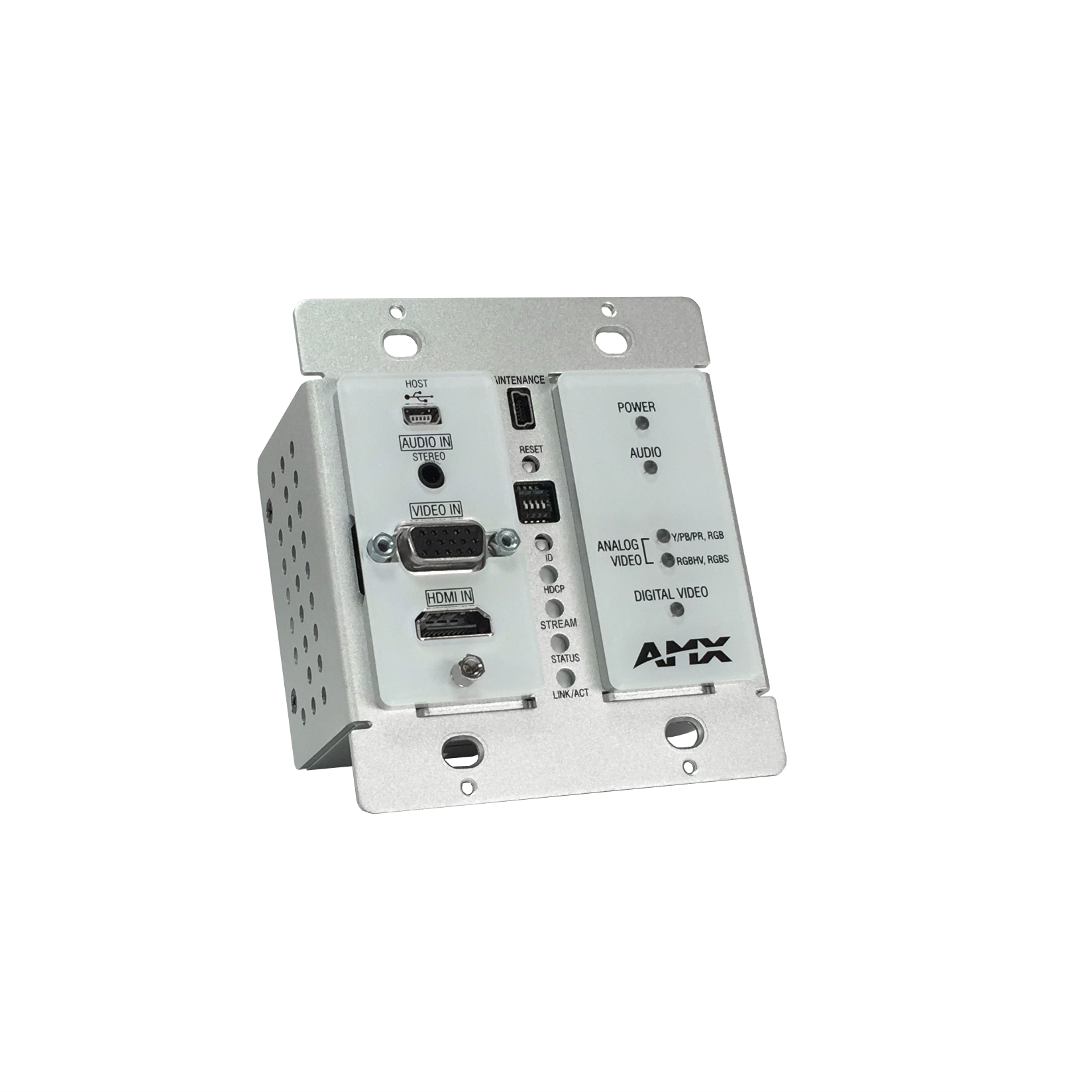

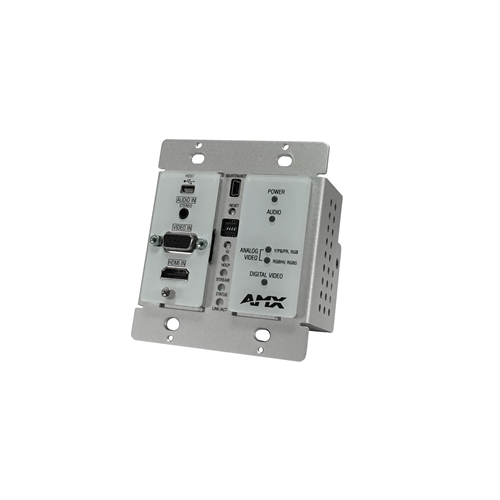

The NMX-ENC-N1115-WP provides the excellent encoding capabilities of the NMX-ENC-N1133 in a 2-gang wallplate format. This encoder can be easily mounted in a wall, lectern, or floor box using a standard 2-gang US back box, and connected to power and Ethernet using only a single category cable.

The NMX-ENC-N1115 is the perfect solution for any application and video matrix smaller than 32x32. Common applications include conference rooms, huddle spaces, and lecterns (inside or adjacent-to)

Features

  • Sub-Frame Latency  Combined encode and decode latency of 10 ms at 60 fps.
  • Minimal Proprietary Compression (MPC)  Visually lossless MPC algorithm applied applied to all resolutions
  • Wallplate Form Factor  Fits conveniently into a 2-gang US back box for easy installation in a wall, floor, or lectern.
  • Power Over Ethernet (PoE)  PoE eliminates the need for power supply
  • Unmatched Flexibility  Build point-to-point links, simple 2x1 switches, or cost-effective matrices up to 32x32.
  • Separate Inputs  Separate HDMI and VGA input connectors on the encoder

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video
  • Digital Video Input: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*
  • Analog Video Input: HD-15 VGA, Component*
  • Video Output: Video Output
  • Formats: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*, HDCP content protection support, RGBHV, YPbPr
  • Progressive Input Resolutions
    • Supports most common HD up to 1920x1200.
  • Interlaced Input Resolutions
    • Supports 1080i60.
  • Analog Input Resolutions
    NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz.
    • Supports most common HD up to 1920x1200.
  • Output Resolutions: Matched to inputs.
  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
    NOTE: The N1115-WP does not accept Composite or S-Video (YC).
  • Color Space: 4:2:2



*These signal types are supported through a passive adapter.

Audio
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo
  • Output Signal Types: Ethernet
  • Analog Audio Format: 8ch PCM, Stereo 2-channel
  • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency
  • Latency: 10 ms at 60 fps
  • Bandwidth: 840 Mb/s (varies with resolution)



Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps).

Communications
  • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • HDMI: HDCP, EDID management
Ports
  • P0:
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides the network connection, network AV video, and power to the Encoders and Decoders
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input
  • USB IN - Host: USB-B host input
  • USB IN - Maintenance: USB-Mini maintenance input
Controls and Indicators - Front Panel
  • RESET Button:
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • POWER LED: On solid (green) when operating power is supplied (via PoE or local power supply)
  • AUDIO LED: On (green) when audio is transmitting.
  • ANALOG VIDEO LEDs: On (green) when analog source is available and transmitting.
  • DIGITAL VIDEO LED: On (green) when video source is available and transmitting
  • HDCP LED: On (green) when the source is using HDCP
  • STREAM LED: On (green) when the unit is streaming video
  • STATUS LED: Flashing (green) when the unit is active.
  • LINK/ACT LED: Flashing (yellow) when network traffic is being sent or received.
Power Supply
  • Power over Ethernet
    • Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1)
    • Point-to-point applications between the encoder and a decoder requires a PoE injector to power the wallplate encoder.



Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only.

Environmental
  • Temperature (Operating): 32° to 104°F (0° to 40°C)
  • Temperature (Storage): -22° to 158°F (-30° to 70°C)
  • Humidity (Operating): 10% to 90% RH (non-condensing)
  • Humidity (Storage): 0% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~26 BTU/hr
General
  • Dimensions (HWD): 4.06" x 3.5" x 2.25" (10.31 cm x 8.84 cm x 5.72 cm)
  • Weight: .75 lb (0.34 kg)
  • Airflow: Natural convection via vent openings on front, back, and top
  • Installation
    • Mounts onto standard 2 gang US back boxes
    • Mounts into standard d cor style wallplates (not included)
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories
    • Compatible with NMX-ENC-N1222, NMX-ENC-N1233, NMX-ENC-N1512, and NMX-NVR-N6123
    • PS-POE-AT-TC High-Power PoE Injector, 802.3AT Compliant FG423-84)
FG Numbers

FGN1115-WP-WH (White)
FGN1115-WP-BL (Black)
