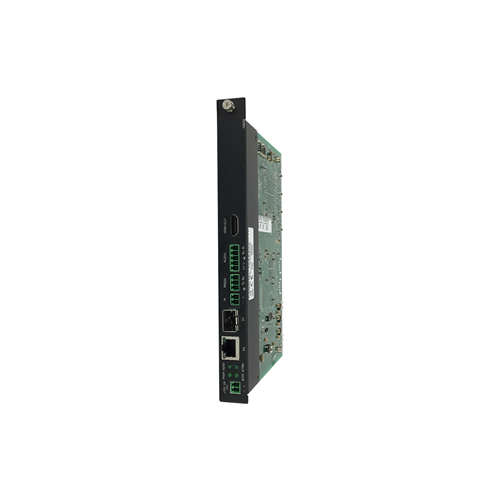

AMX NMX-DEC-N3232-C - Decoder Card

Product Code: AMX FGN3232-CD

Key Features
SVSI H.264 Decoder Card with USB for record, one SFP fiber/RJ45 copper network port cage, and one RJ45 (with PoE), IR, serial, VGA and HDMI connection (SFP module not included) - must be used in conjunction with NMX-ACC-N9206 Rack Mount Cage
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The N3000 Series H.264 compression engine delivers low-latency 1080p60 video at half the bandwidth of comparable encoders. High profile H.264 encoders output unicast or multicast to one or more N3000 Series decoders. Multiple selectable streaming protocols (RTP, RTSP, and more) allow for software endpoints during video to the desktop applications or third-party hardware endpoints like Roku, Amino, or Google TV. Adjustable bit-rates from 32-Kbps to 10-Mbps give the highest video fidelity at the lowest bandwidths on the market in keeping with SVSI's commitment to provide unsurpassed Networked AV quality.

The N3000 Video over IP Series extends the reach of SVSI's Networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile devices applications. Fully integrated with existing Networked AV control options, the N3000 Series delivers the highest quality HD video content at the lowest bandwidth for the most demanding applications. Moving video to or from the Cloud just became a lot easier with the N3000.

H.264 decoder Includes IR, serial, balanced audio, RJ45 and 1GB SFP (fiber or copper) network connections. Digital video output only. H.264 decoder card requires NMX-ACC-N9206 cage.

The NMX-ENC-N3232 is the perfect solution for quality streaming over low bit rate WAN. Common applications include distance education, Multi-Site Enterprise, and IPTV Streaming.

Features

  • Power Over Ethernet (PoE)  Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR)  Infrared emitter connection allows control of low-cost, IR-only display devices
  • Onboard Control  All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unlimited Scalability
  • Stand Alone or Card  Available as a stand alone device, or card for use with NMX-ACC-N9206

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video
  • Video Input: Network video over copper via RJ45 port or fiber via 1G SFP port
  • Video Output: HDMI, DVI-D (through adapter)
  • Formats: HDMI, DVI-D (through adapter), HDCP content protection support
  • Input Resolutions:
    • Supports most common HD up to 1080p60.
      • *720x480 @ 59Hz, 640x480 @ 60Hz, *720x480 @ 60Hz, *720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, *1280x720 @ 50Hz, *1280x720 @ 59Hz, *1280x720 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, *1920x1080 @ 50Hz, *1920x1080 @ 59Hz, *1920x1080 @ 60Hz, *1920x1080i @ 50Hz, *1920x1080i @ 59Hz, *1920x1080i @ 60Hz



*supported in component mode
Audio
  • Input Signal Types: Network audio over Ethernet
  • Output Signal Types: Embedded audio on HDMI or DVI-D (through adapter)
  • HDMI Audio Formats: Stereo 2-channel
  • Analog Audio Formats: Stereo 2-channel
Latency
  • Latency: 175 ms at 60 fps



Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps)
Communications
  • Ethernet:
    • P0
      • 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
    • P1
      • 1 Gbps port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling)
  • HDMI: HDCP, EDID management
Ports
  • +12V 2A: One 12 Volt DC power input.
  • P0
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders
  • P1
    • SFP port (SFP fiber transceiver or direct attach cable not included)
    • Provides the network connection and network AV video
  • IR
    • 2-pin terminal Phoenix connector
    • Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included)
  • RS232
    • 3-pin terminal Phoenix connector
    • Provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate
  • AUDIO
    • 5-pin terminal Phoenix connector
    • Provides user-selectable balanced/unbalanced output. Dedicated audio output
  • HDMI OUT: HDMI video output
  • USB connectors (front panel): One USB-A control inputs
Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
  • POWER LED
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by the PWR LED on the rear panel
  • STATUS LED
    • On flashing (green) when there is software activity
    • This activity is also shown by the STAT LED on the rear panel
Controls and Indicators - Rear Panel
  • PWR LED: Same as POWER LED described above
  • HDMI LED: On (green) when there is a connection to a valid video source
  • STAT LED: Same as STATUS LED described above
  • STRM LED: On (green) when the unit is streaming video
Environmental
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/Hr
General
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories: NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN3232-CD
