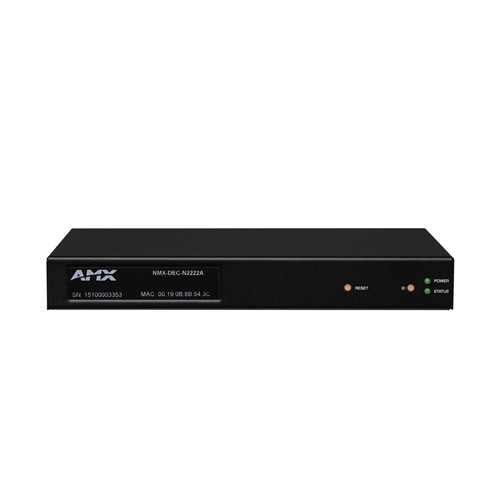

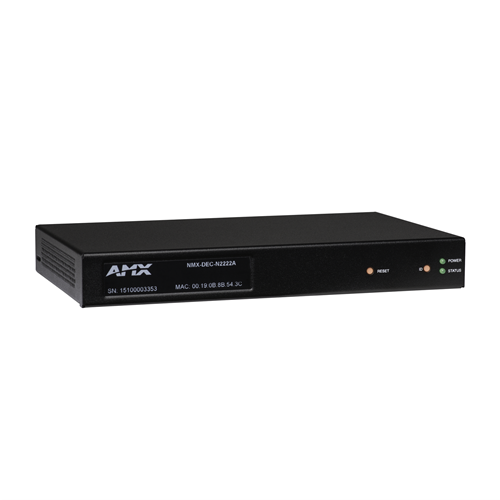

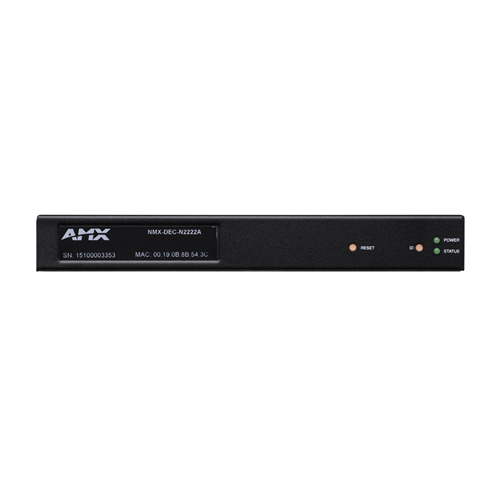

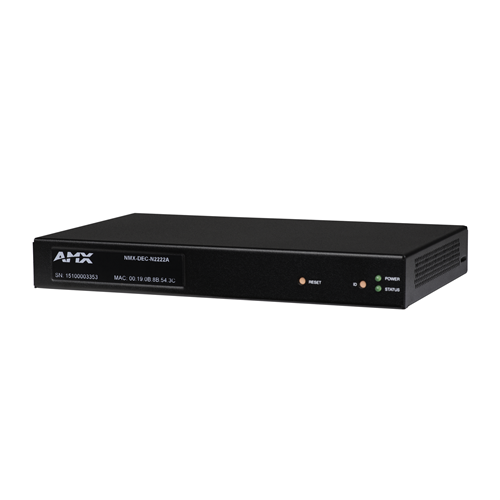

AMX NMX-DEC-N2222A - Decoder

Product Code: AMX FGN2222A-SA

Key Features
SVSI Stand-alone JPEG2000 Decoder with ultra-low latency for 1080p/60hz, RJ45 (with PoE), IR, serial, balanced audio, VGA, and HDMI connectors, AES67 compatible (power supply not included)
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. The NMX-DEC-N2222A Decoder is used to decode streams back to DVI or HDMI format for display on any monitor. Pair with the NMX-ENC-N2122A to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.

The NMX-DEC-N2222A includes Local Play, allowing users to upload and save 8 playlists that can contain up to 64 jpeg or PNG files. When a video stream is lost, the stored images will play, preventing blank displays.

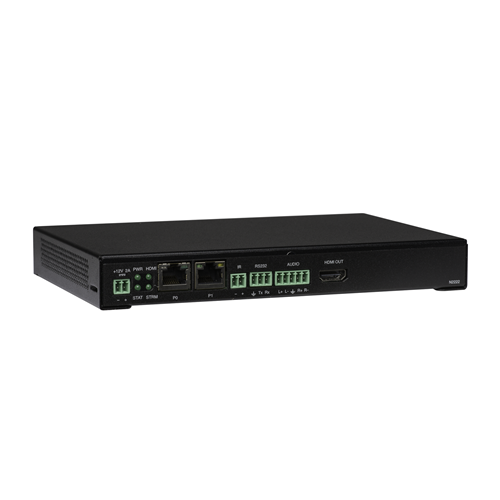

Includes IR, serial, balanced audio, AES67 support, and two network ports (one POE). Digital video output only.

The NMX-DEC-N2222A is the perfect solution for matrix switching and distribution of HD, cinema-grade quality video over LAN. Common applications include enterprise, house of worship, entertainment, and stadiums.

Features

  • Input and Output Scaling Video scaling at either input or output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
  • Plug-n-Play Auto-detect technology reduces installation and programming time
  • Onboard Control All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unlimited Scalability
  • Stand Alone or Card Available as a stand alone device, or card for use with NMX-ACC-N9206

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Digital Video Input Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs HDMI, DVI-D (through adapter)
Video Formats HDMI, DVI-D (through adapter), HDCP content protection support
Output Resolutions Supports most common HD up to 1920x1200. See Data Sheet for details.
Audio Input Signal Types Network video and audio over Ethernet via RJ45 (audio at 48-kHz, standard SVSI audio stream or AES67, user selectable)
Audio Output Signal Types Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats 8ch PCM
Analog Audio Formats Stereo 2-channel
Audio Digital-to-Analog Conversation 16-bit 32 kHz, 44.1 kHz and 48 kHz (matched to Encoder settings)
Latency 50 ms for 720p60; 140ms for 1080p60. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP. See Data Sheet for details.
FG Numbers FGN2222A-SA
