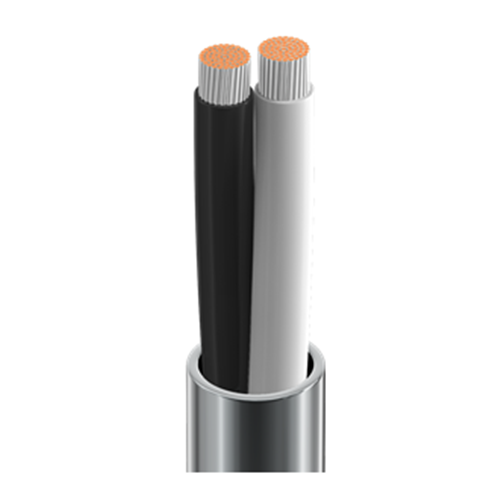

Name: Belden High-Conductivity Copper Speaker Cable Twisted Jack 1 Pair 12AWG 3.30mm Chrome - 305m Reel
Price: 5.9714 AUD

(M)

Qty	Each (inc GST)	Each

Physical Characteristics (Overall)
# Pairs	1
AWG	12
Stranding	65x30
Conductor Material	TC - Tinned Copper
Total Number of Conductors:	2
Insulation Material	PVC - Polyvinyl Chloride
Wall Thickness (mm)	0.838
Outer Shield Material	Unshielded
Outer Jacket Material	PVC - Polyvinyl Chloride
Nom. Wall Thickness (mm)	0.889
Overall Nominal Diametre:	9.804 mm
Number	1
Color	Black & White
Mechanical Characteristics (Overall)
Operating Temperature Range:	-20°C To +90°C
Non-UL Temperature Rating:	90°C (UL AWM Style 2587)
Bulk Cable Weight:	119.056 Kg/Km
Max. Recommended Pulling Tension:	667.230 N
Min. Bend Radius/Minor Axis:	101.600 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:	CL3R
AWM Specification:	UL Style 2587 (600 V 90°C)
EU Directive 2011/65/EU (ROHS II):	Yes
EU CE Mark:	Yes
EU Directive 2000/53/EC (ELV):	Yes
EU Directive 2002/95/EC (RoHS):	Yes
EU RoHS Compliance Date (mm/dd/yyyy):	04/01/2005
EU Directive 2002/96/EC (WEEE):	Yes
EU Directive 2003/11/EC (BFR):	Yes
CA Prop 65 (CJ for Wire & Cable):	Yes
MII Order #39 (China RoHS):	Yes
UL Flame Test:	UL1666 Vertical Shaft
Plenum (Y/N):	No
Notes (Overall)
Notes:	See NEC Guidelines for applicable CL3 voltage ratings.

Belden High-Conductivity Copper Speaker Cable Twisted Jack 1 Pair 12AWG 3.30mm Chrome - 305m Reel
