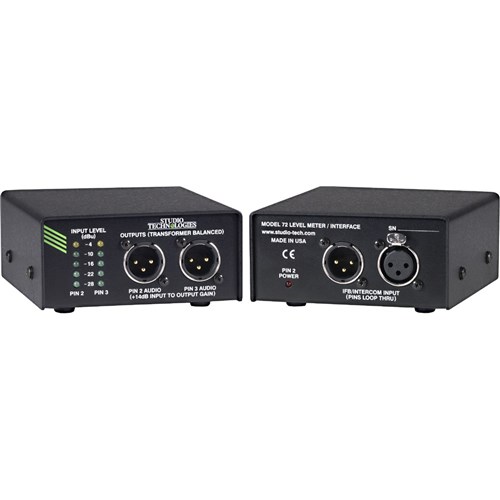

Studio Technologies Model 72 Level Meter / Interface

Two 5-segment LED metres allow direct observation of the audio signal levels present on the connected IFB or intercom circuit. The display range is optimised for the signal levels found on typical "wet" (DC with audio) IFB and intercom circuits, rather than traditional "VU" scaling.

Two audio outputs provide transformer-coupled "dry" signals, one output associated with each IFB or intercom channel. These pro-audio-quality outputs are useful for a variety of production and testing applications. For example, the outputs can serve as the interface between a traditional "wet" IFB system and a wireless in-ear monitor or IFB system. The Model 72's outputs can also be connected to line-level inputs on an audio console, allowing IFB or intercom audio signals to be combined and/or routed to other local or remote talent or production personnel cue systems. Other applications may arise where an amplified speaker needs to be used to monitor an IFB or intercom circuit. The Model 72's audio outputs will make achieving this fast and simple.

Power for the Model 72 is provided by the connected IFB or intercom circuit. Active circuitry ensures accurate level metreing and excellent audio performance. The compact device is housed in a rugged aluminum enclosure. All inputs and outputs interface using industry-standard 3-pin male and female XLR-type connectors. The connectors are manufactured by Neutrik® and feature gold-plated contacts and metal housings.

The Model 72 is compatible with virtually all single- and dual-channel IFB and intercom circuits used in broadcast, theatrical, and industrial applications. IFB circuits, typically provided by Studio Technologies' IFB interface units or the RTS 4000-Series, can be directly connected. Industry-standard party-line intercom circuits are also compatible. Whether a single-channel system from Clear-Com® or a dual-channel TW-Series system from RTS, direct connection to the Model 72 is supported.

The Model 72 provides both 3-pin male and female XLR-type connectors for direct interconnection with IFB and intercom circuits. The connector's pins are wired in parallel, allowing compatibility with interconnecting cables having male or female connectors. The two connectors can also serve as a "loop through" function. Pin 1 of the connectors is used as a common point for both DC power and audio signals. Pin 2 of the connectors is always used for DC power, typically in the range of 25 to 30 V. With dual-channel IFB or intercom circuits pin 2 is also used to carry one of the two audio signals, typically designated as channel 1. (This audio signal is superimposed onto the DC voltage.) Pin 3 is always used to carry an audio signal but never DC power. In dual-channel IFB or intercom systems pin 3 typically carries channel 2 audio. In single-channel intercom systems pin 3 carries the one and only audio signal.

The Model 72 was developed out of necessity, once again proving that the old saying is correct; necessity was definitely the "mother" when it came to the unit's invention. The genesis was very simple. Often when testing audio equipment out "in the field," Studio Technologies personnel felt "blind" when interfacing with IFB and intercom circuits. Typically it was difficult to obtain "clean" balanced line-level audio signals, and never possible with a nominal level approaching +4 dBu. Worse yet, confirming the signal levels of an IFB or intercom circuit was virtually impossible. It often seemed that the signal levels were either too low or too "hot," but there was no simple way available to establish that fact. With the Model 72 these problems should disappear. Monitoring of the audio levels is clear and accurate, and balanced line-level outputs are directly available. Using the Model 72, the concept of an intercom dry box is taken to another level.
