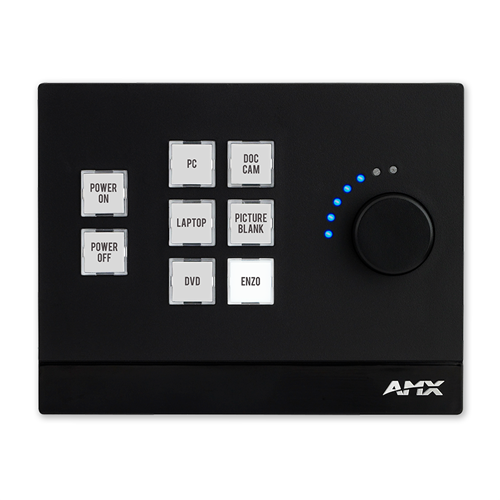

AMX MKP-108L-BL - Massio 8-Button Ethernet Keypad Landscape Black

Product Code: AMX FG5793-08L-BL

Key Features
Massio 8-Button Ethernet Keypad, Landscape, Black - Fits into standard 2 gang US, UK, or EU back box. Use in conjunction with NetLinx control or as a secondary UI with Massio ControlPads
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The MKP-108 / 8-Button Massio Keypad with Knob is a keypad-only version of the MCP-108 Massio ControlPad. The MKP-108 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-108 includes large, easy-to-read buttons and a smooth, responsive dial/knob in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Features

  • Consistent Massio Aesthetics & Form Factor Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
  • Massio Styling in Customized Rooms Provides Massio-style UI in rooms that require a separate controller
  • Connects Via Standard Protocols (PoE) Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location
  • Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx masters, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
  • Perfect for Massio rooms requiring a second user interface in the same form factor to act as a slave keypad to the Massio ControlPad.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) 4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm)
Weight Approximately .41 lbs (.19 kg)
Mounting Mount onto standard 2 gang US, UK, or EU back boxes

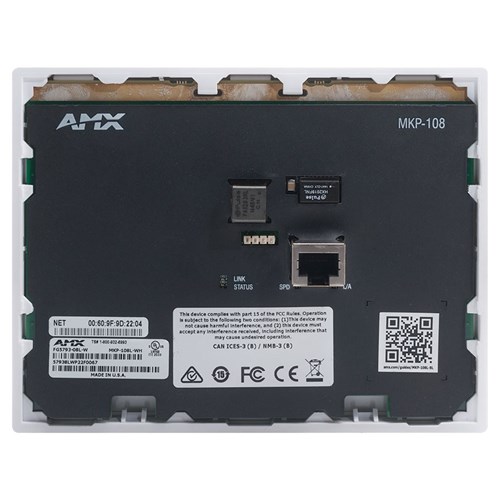

Power Consumption Typical: 5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
Program Port (1) USB Mini-B, USB
ID Pushbutton Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
FG Numbers FG5793-08L-W (Landscape, White)
