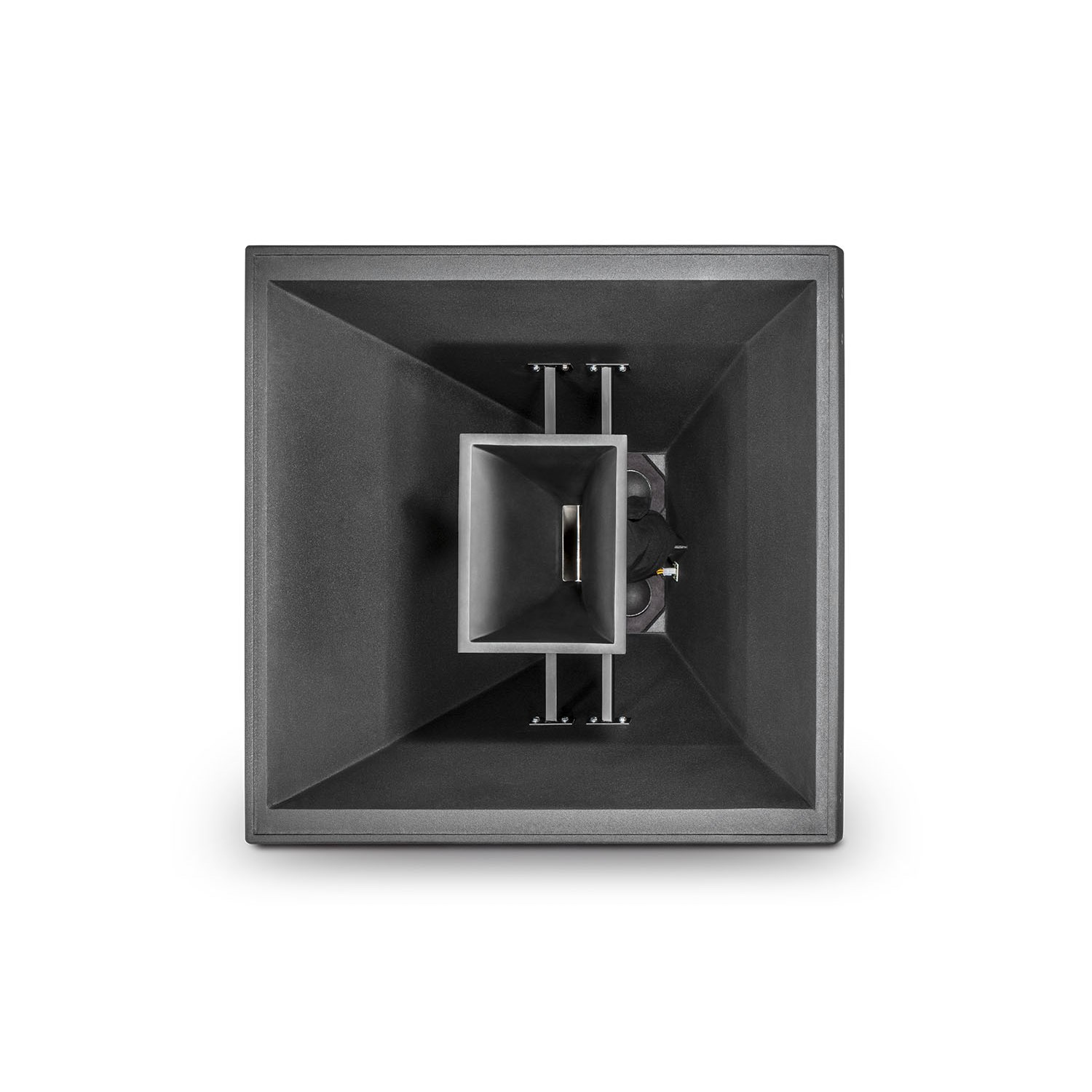

JBL PD743 - Very High Output Mid-High Frequency Coaxial Loudspeaker System

Product Code: JBL PD743

Key Features
Precision Directivity Mid/High Frequency Coaxial with 40 x 30 Dispersion. Dual large format 2430H HF drivers with IFS Interference Free Summation, dual 2250J very high output 8" MF Drivers, well controlled dispersion to below 400 Hz, ten M10 integrated suspension points. 150 Hz to 16 kHz frequency range. 700 W MF, 150 W HF continuous power capability. Max SPL capability of 139 dB continuous, 145 peak. Compact 991 H x 991 W x 1146 D mm (39 x 39 x 45.1 in), 111.4 kg (245 lb).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL PD743 - Very High Output Mid-High Frequency Coaxial Loudspeaker System

The PD743 Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs.

Features:

  • 40° by 30° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation
    within an array.
  • IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
  • Dual 8 in horn loaded cone mid frequency drivers provide 6 dB greater output than traditional designs.
  • Pattern control maintained to below 400 Hz.
  • Co-axial mid/high-frequency module layout improves mid frequency arrayability and minimizes size.
  • Integrated rigging system simplifies array design and construction.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range 150 Hz - 17 kHz (-10 dB)
Frequency Response 200 Hz – 15 kHz (+/- 3 dB)
Coverage Angle 40° x 30°
Directivity Index (DI) 15 dB
Recommended Crossover Frequencies 225 Hz, 1.5 kHz
Nominal Impedance MF: 8 Ohms
HF: 16 Ohms
Input Power Rating MF: 700 W AES (2800 W peak)
HF: 150 W AES (600 W peak)
Sensitivity MF: 111 dB, 1 W @ 1 m (3.3 ft)
HF: 118 dB, 1 W @ 1 m (3.3 ft)
Calculated Maximum SPL MF: 139 dB Continuous; 145 dB Peak
HF: 140 dB Continuous; 146 dB Peak SPL @ 1 m (3.3 ft)
Mid Frequency 2 x 2250J - 203 mm (8 in) cone, Dual 75 mm (3 in) edgewound ribbon voicecoil, NDD™ motor structure
High Frequency 2 x 2430H - 75 mm (3 in) diaphragm, 38 mm (1.5 in) aperture,
neodymium magnet
Enclosure Dual Trapezoidal, 25° vertical, 35° horizontal; birch plywood
Suspension Attachment M10 threaded points, 24 total; 40° by 30° Coverage Pattern–symmetrical
frontal dimensions
Finish lack DuraFlex™ coating (white & custom colors optional)
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing (white & custom colors)
Input Connector Neutrik NL4 Speakon (Options:barrier strip or captive cable)
Dimensions (H x W x D) 991 x 991 x 1102.36 mm
(39 x 39 x 43.4 in)
Net Weight 245 lb, 111.4 kg
