JBL MTCPC3 Pair of Sealed Speaker Panel Covers for Input Terminal

Product Code: JBL MTC-PC3

Key Features

JBL MTC-PC3 Panel Cover Pair for Control Series

The MTC-PC3 Panel Cover provides sealed entrance protection for Control Series input terminals and strain relief for incoming speaker wire.
Key Features
  • Protective input terminal panel for many JBL Control Contractor and Control Series loudspeakers
$87.21 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

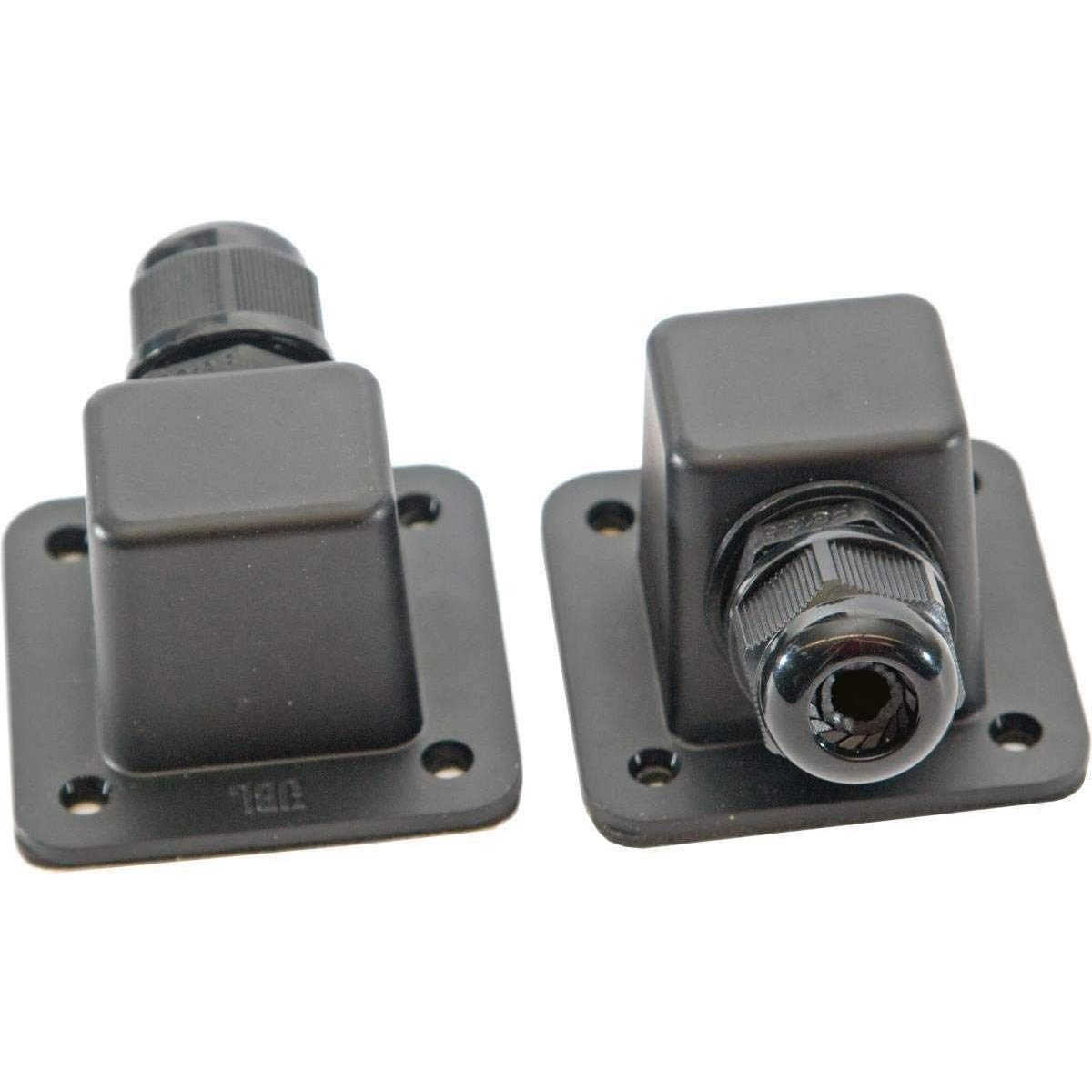

JBL MTC-PC3 Panel Cover Pair for Control Series

The MTC-PC3 are simple-to-use protective panel covers for the input terminal panel of many models of Control Contractor and Control Series loudspeakers. On the MTC-PC3, the wire exits from the side of the cover.

The Panel Cover installs over the existing input cup, provides a watertight gland-fitting entrance to seal and protect this section of the loudspeaker against incursion of water. The cover comes only in black. The cover section is paintable, but the gland nut is not.

Model compatibility -- MTC-PC3 fits JBL's standard 1.7" x 1.7" (43 x 43 mm) input cup which includes the following models (as of 03/2016): Control 23-1, 25-1, 28-1, SB2210, 25AV, 29AV, 30, 31, 1, 5. CBT 70J-1, 70JE-1, 200LA-1, 100LA-1, 50LA-1. Plus older models Control 23, 23T, 25, 25T, 28, 28T-60.

Important: In order to seal correctly, the cable must be jacketed externally with a round (or near-round) cross-sectional shape and the outside diameter of the cable MUST be between 0.170" (4.3 mm) and 0.470" (11.9 mm). Side-by-side "zip" type cables are not acceptable.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Brand JBL Professional
Model MTC-PC3
Part Number 246-805
UPC 691991005275
Unit of Measure Each
Weight 0.25
