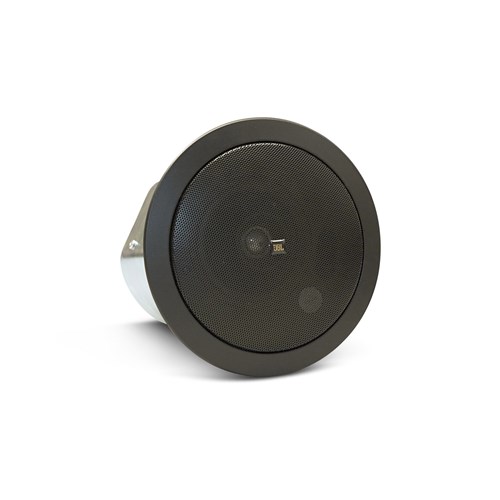

JBL Control 24CT-BK - Background/Foreground Ceiling Speaker in Black - Priced as Each Sold as Pair

Product Code: JBL CTRL24CT-BK

Key Features
Control 24CT in Black. 4 two-way vented ceiling speaker, 80 Hz 20 kHz, 86 dB sensitivity, 80W program and 40W pink noise power, for use on a 70.7V or 100V distributed line, switchable taps at 30W, 15W and 7.5W (plus 37W at 70.7V only, 130° coverage, packaged with backcan, grille, support plate and tile rails. (priced as each, sold in pairs).
$501.41 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Background/Foreground Ceiling Speaker

The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

Features

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Black baffle and grille works well in black and dark ceiling

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Freq. Range (-10 dB) 80 Hz - 20 kHz
Power Capacity 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise
Transformer Taps 70 V: 30W, 15W, 7.5W & 3.7W taps100 V: 30W, 15W, & 7.5W taps
Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft)
Nominal Coverage Angle 130 conical coverage
Directivity Factor (Q) 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 averaged 500 Hz to 4 kHz
Transformer Insertion Loss Max 0.8 dB
Low-Frequency Transducers 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency Transducers 19 mm (0.75 in) Titanium coated polyester
Enclosure Backcan: Formed steelBaffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Termination Removable locking connector with screw-down terminals.2 input terminals and 2 loop-thru output terminals.Max. wire size 12 AWG (2.5 mm)
Outside Dimensions (H x Dia) 200 x 195 mm (7.9 x 7.7 in)184 mm (7.2 in) front of ceiling tile to back of backcan
Cutout Size 168 mm (6.6 in)
Net Weight (ea) 3.5 kg (8 lb)
Shipping Weight (pair) 8.0 kg (18 lb)
Included Accessories C-shaped support backing plate2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)Cutout templatePaint shieldRemovable locking wiring connector
