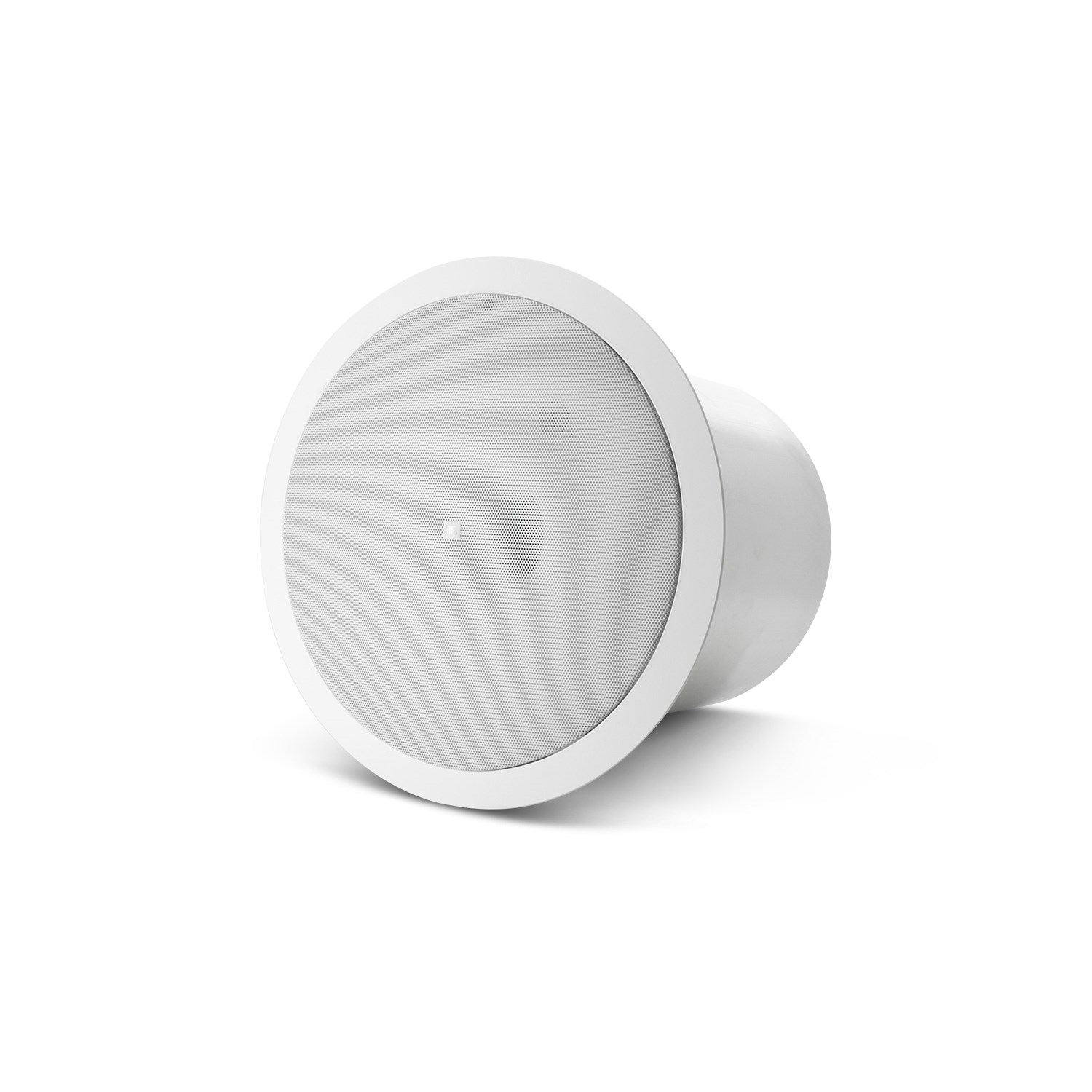

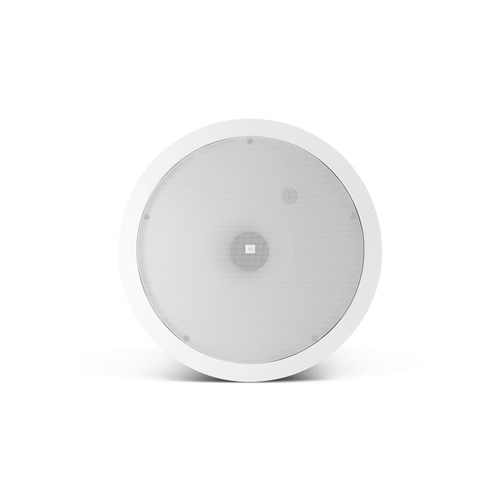

JBL Control 19CST - In-Ceiling Subwoofer White with Transformer - Priced as Each Sold as Pair

Product Code: JBL CTRL19CST-WH

Key Features
Control 19CS with Subwoofer Based Transformer. For use on a 70.7V or 100V Distributed Line, Switchable Taps at 60W, 30W and 15W (Plus 7.5W at 70.7V only), No SonicGuard. Priced as Each, Packed as Pairs. Master Pack Quantity: 2 Pieces.
$968.90 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

In-Ceiling Subwoofer

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Features

  • Unique Nested Chamber™ design and Linear
  • Component: Long excursion 200 mm (8 in) driver.
  • Packaged with grille, backcan and tile rails for fast
  • Simple installation and wire connection method.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 42 Hz - 200 Hz
Power Capacity 200 W Continuous Program Power
Transformer Taps 70 V: 75 W, 30 W, 15 W & 7.5 W 100 V: 75 W, 30 W, & 15 W
Nominal Coverage Angle 180 conical coverage
Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner ( /2)
Nominal Impedance 8 ohms
Low Frequency 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Cutout Size (H x W) 305 mm (12.0 in)
Net Weight (ea) 6.3 kg (14 lb)
Shipping Weight (pair) 14.3 kg (32 lb)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
