JBL Control 16C/T - Two-Way 6.5 Inch Coaxial Ceiling Loudspeaker Black - Priced as Each Sold as Pair

Product Code: JBL CTRL16CT-BK

Key Features
Two-Way 165 mm (6.5 in) Co-axial Ceiling Loudspeaker. 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround and 19 mm (3/4 in) soft-dome liquid-cooled tweeter, 62 Hz 20 kHz bandwidth, 110° coverage, high 91 dB sensitivity. Blind-mount backcan for quick and easy installation, dual conduit/cable clamp for in and thru cables. Combined 30 W multi-tap transformer at 70V/100V and 8 direct setting (50 W). Black. Sold as each, packed in pairs. International master pack is 2 speakers.
$525.97 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Two-Way 6.5" Coaxial Ceiling Loudspeaker

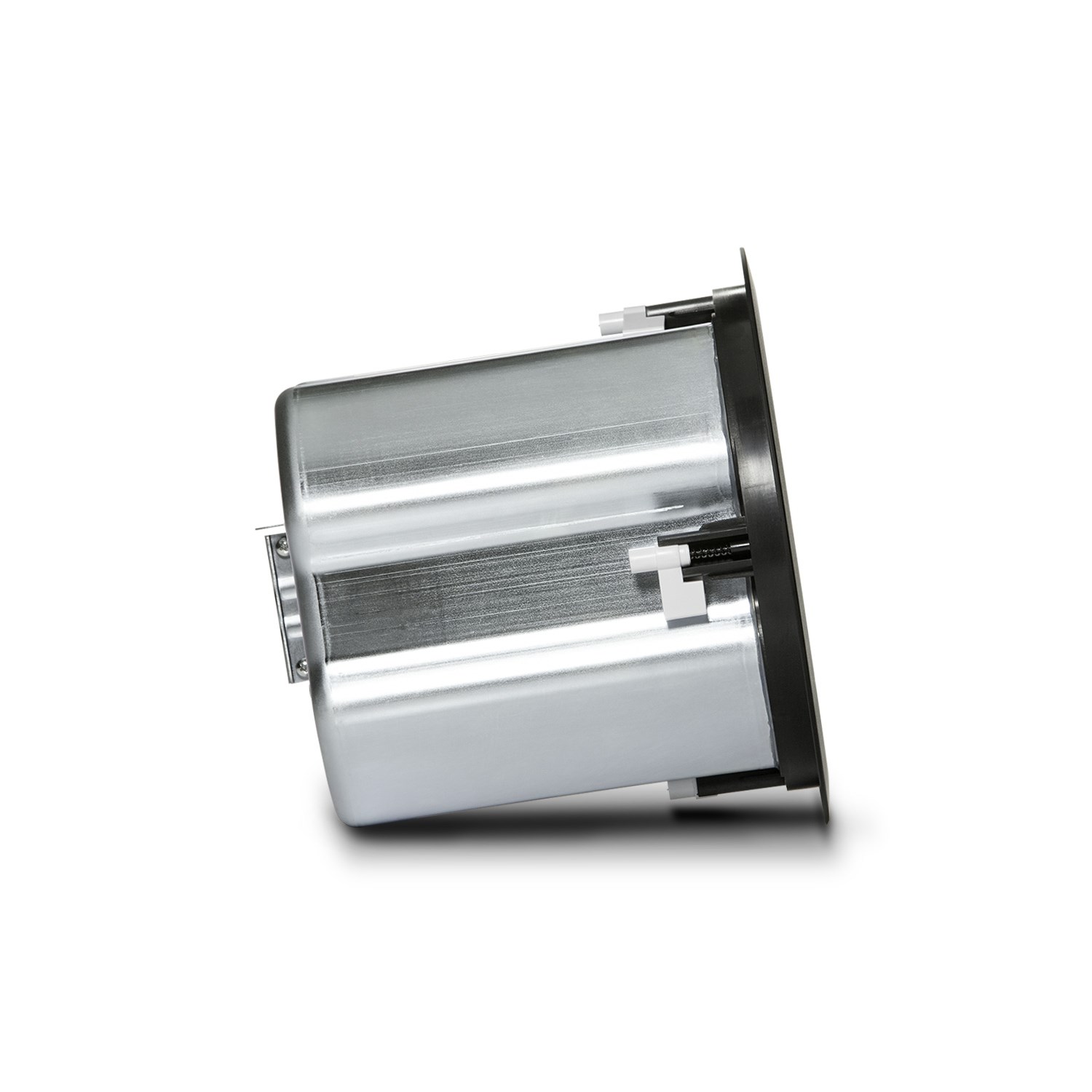

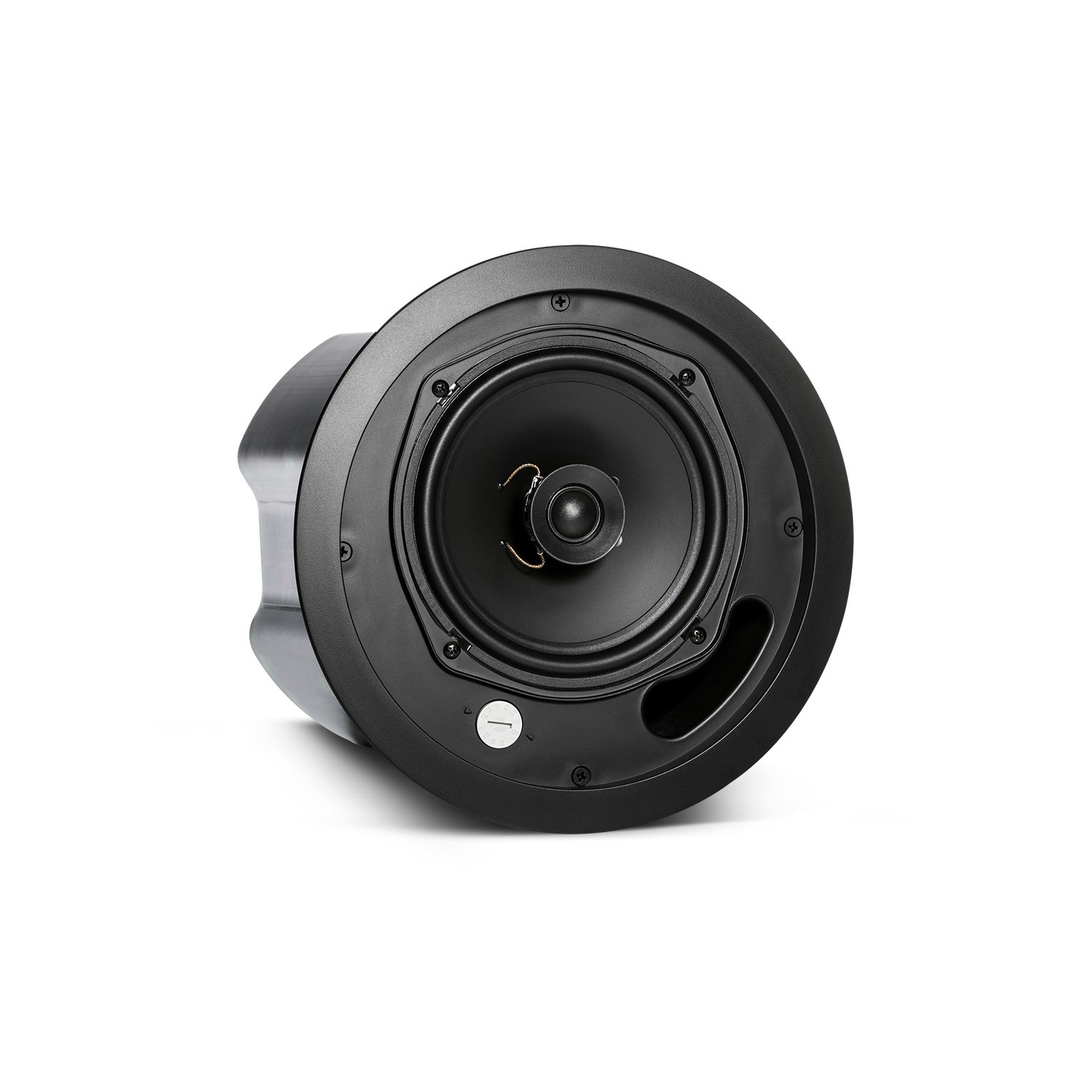

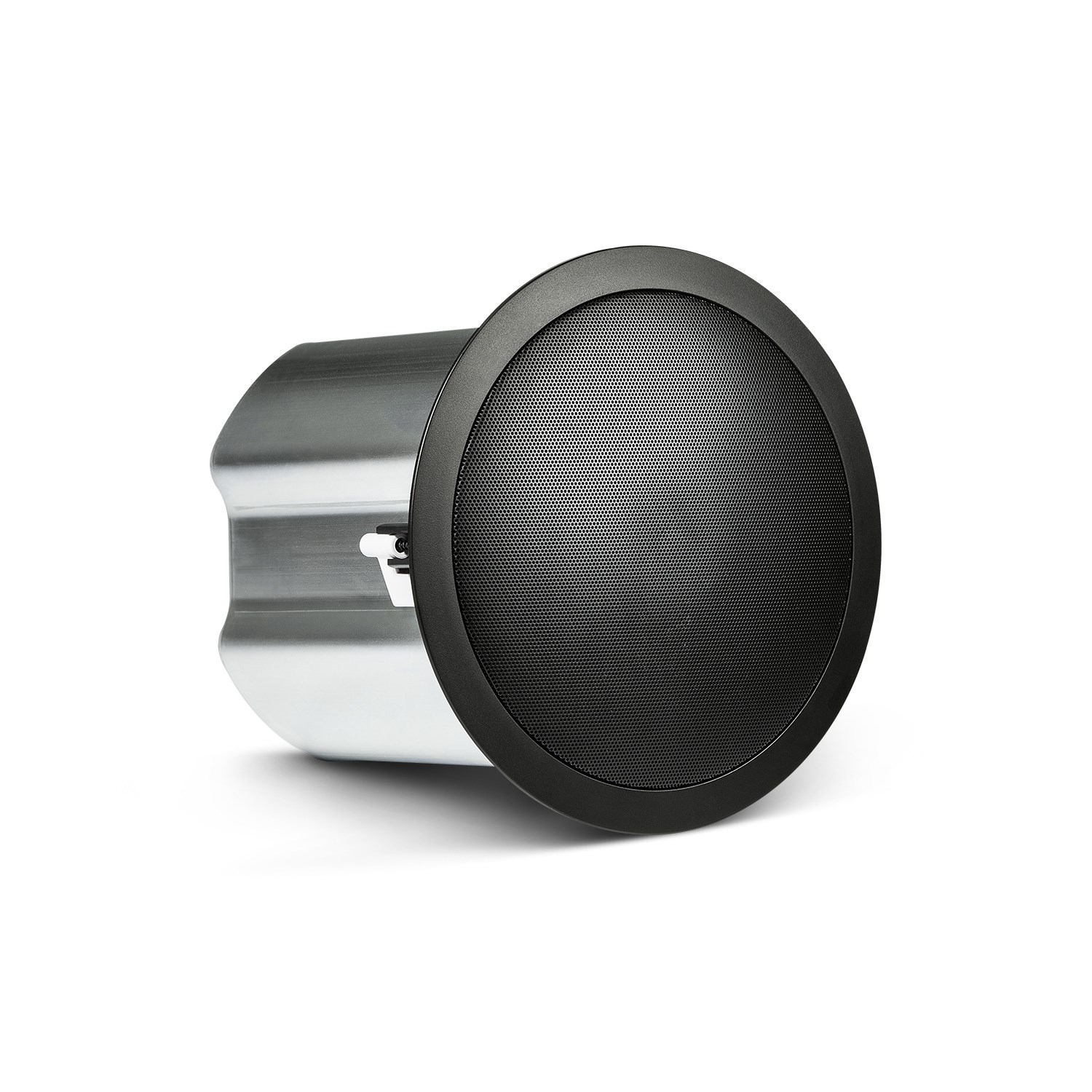

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

Features

  • Components:
    • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
    • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    •50 Watts at 8Ω nominal setting
    • 30W multi-tap at 70V/100V
  • 62 Hz – 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL
  • White or black (-BK)

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 62 Hz 20 kHz
Power Capacity (at low-Z) 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise
Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response ( 3 dB) 96 Hz 15 kHz
Nominal Sensitivity 91 dB
Nominal Coverage Angle 110 conical coverage
Directivity Factor (Q) 7.8
Directivity Index (DI) 8.2 dB
Rated Maximum SPL 108 dB @ 1 m (3.3 ft) average, 116 dB peak
Nominal Impedance 8 ohms (in direct/bypass 8 setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
LF Driver 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver 19 mm (3/4 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide
Input Connector Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
Ceiling Cutout Size Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
Net Weight 3.4 kg (7.4 lbs, one speaker)
Shipping Weight 11.2 kg (24.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
