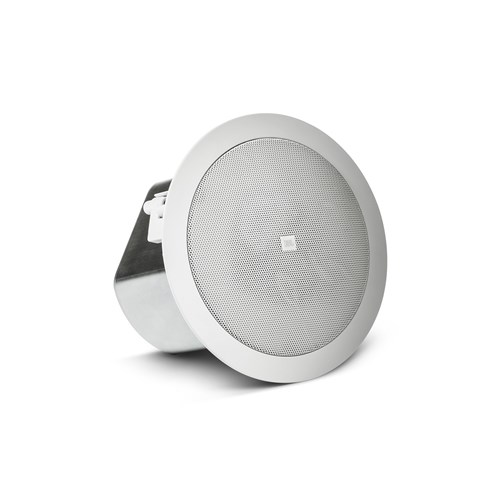

JBL Control 12C/T - Compact Ceiling Loudspeaker White - Priced as Each Sold as Pair

Product Code: JBL CTRL12CT-WH

Key Features
Compact Ceiling Loudspeaker with 76 mm (3 in) Full-Range Driver. 68 Hz 17 kHz bandwidth, wide 130° coverage, 84 dB sensitivity Blind-mount backcan for quick and easy installation, dual conduit/cable clamp for in and thru cables. Combined 15 W multi-tap transformer at 70V/100V and 8 direct setting (20 W). Low profile backcan for shallow ceilings. White. Sold as each, packed in pairs. International master pack is 2 speakers.
$292.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact Ceiling Loudspeaker

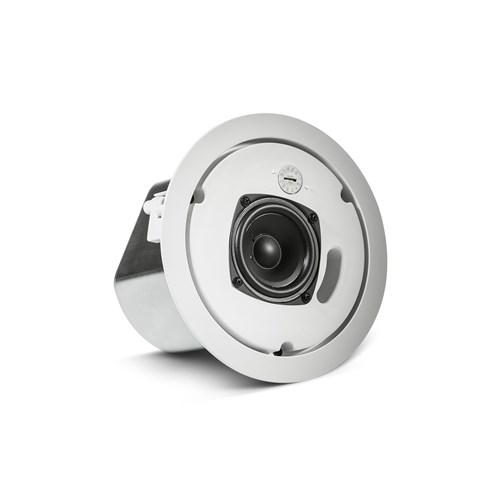

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

Features

  • 76 mm (3 in) full-range driver
  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    • 20 Watts at 8Ω nominal setting
    • 15W multi-tap at 70V/100V
  • 68 Hz – 17 kHz bandwidth with wide 130° coverage
  • White or black (-WH)

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 68 Hz 17 kHz
Power Capacity (at low-Z) 40 Watts Continuous Program Power20 Watts Continuous Pink Noise
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response ( 3 dB) 95 Hz 15 kHz
Nominal Sensitivity 84 dB
Nominal Coverage Angle 130 conical coverage
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
Nominal Impedance 8 ohms (in direct/bypass 8 setting)
Full-Range Driver 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
