Active Beam Shaping, Self Powered, Loudspeaker Array

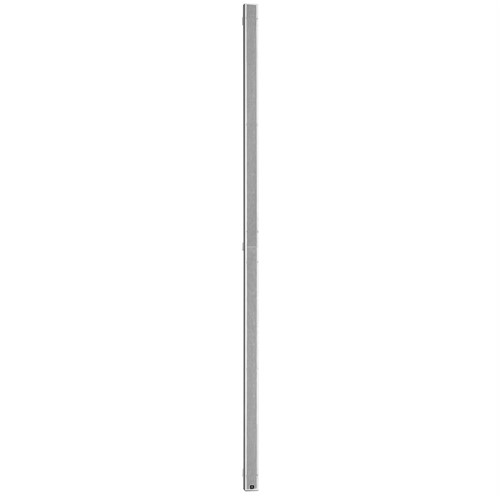

The Intellivox-DS500 is the flagship of the slim line Intellivox DDS range and has been installed in high profile projects all around the world. It has proven to be a versatile and accurate solution for all venues requiring excellent speech intelligibility under highly reverberant conditions. With an acoustic length in excess of 4 m the Intellivox-DS500 not only offers long throw capability but also greater control at lower frequencies. A single Intellivox-DS500 is capable of covering an area up to 70 m while maintaining an even sound pressure level. The thirty two, custom designed, 4” loudspeakers are driven by a sixteen channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The loudspeakers themselves are arranged in accordance with our patented algorithm.
An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing and surveillance features. The increased low-mid frequency control offered by the array makes the Intellivox-DS500 suitable for easy and unobtrusive implementation in very large, highly reverberant and architecturally sensitive environments. The low frequency response of the system can be easily extended using a JBL sub woofer system.
Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response
- Wide Horizontal Dispersion
- Vertical Beam Shaping (DDS Technology)
- 32-bit floating point DSP
- Control of Vertical Beam Shaping
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
- 8 band parametric EQ
- 8 user definable, password protected presets on board (recallable through third party control devices)
- AVC (Automatic Volume Control) via build-in ambient mic.
- Upgradeable firmware
- Network Ready
- Integral Surveillance
- Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3
Applications
- Transport Hubs
- Large Places of Worship
- Lecture Halls and Theatres
- Large Conference Facilities
- Atriums
- Museums
Options
- External Ambient Noise and Temperature Sensor
- Input section with 1 x 0dBV and 1 x 100V
- Input section with 2 x 100V
- Full range of mounting accessories
- Color matching service
