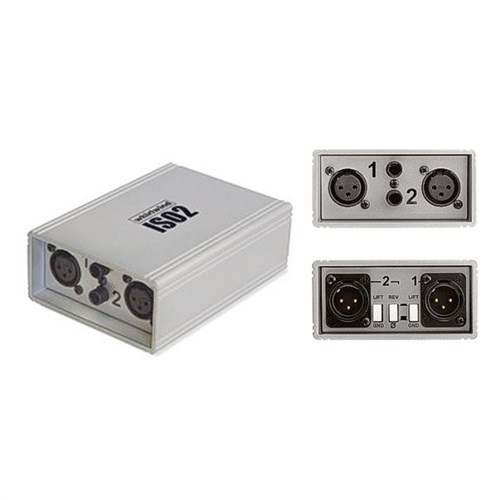

Whirlwind ISO-2 - Dual Line Level Isolator and Balancer Ground Lifts Phase Reverse XLR I/O

Product Code: WH ISO2

Key Features

The ISO-2 is a two channel isolation box and line balancer.
As an isolation unit, use it to isolate lines to press and video feeds or on-stage power amps. It's a handy hum and buzz fighter for broadcast or live sound applications.
As a balancer, it converts unbalanced lines from CD players, tape decks, etc. to balanced for long cable runs.

$543.62 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Each channel features:

  • XLR and 1/4" inputs (accepts TRS or TS unbalanced)
  • Ground-lift button
  • Polarity reverse button (Channel 2 only)
  • Whirlwind's own TRSP600L transformers ensure flat frequency response and low distortion.

Model #: ISO-2
Frequency Response: 20Hz-20kHz ±0.5dB at +10dBm input
Maximum Input Level: +28dBm
Input Impedance: 600 Ohms
Output Impedance: 600 Ohms

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
