Icron Technologies USB 3-2-1 Starling Single Port USB-C 10m Extender with Low Smoke Cable

Product Code: IC 00-00457

Key Features
  • USB 3.2 Gen 1 data rate up to 5Gbps
  • Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth
  • USB-C port connectivity (USB data only)
  • Bus-powered with optional DC input
  • Single 10-meter Plenum rated cable
  • FCC and CE (Class A) compliant
  • Low Smoke Cable
$1,418.68 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 3-2-1 Starling Single Port USB-C 10m Extender with Low Smoke Cable

Short-distance USB 3-2-1 extension solutions.

The Icro USB 3-2-1 Starling™ 3251C is the world’s first backwards compatible USB 3.2 Gen 1 extender allowing users to extend USB 3.2 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a custom 10m Cable while being completely USB BUS powered. The Starling 3251C comes with Low Smoke fire rated cable. Applications include extending USB 3 conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. The Starling extender series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Webex, Hangouts Meet).

This 1-port USB 3.2 Gen extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS, Linux® and Chrome OS™.

Additionally, this ExtremeUSB-C™ based USB 3.2 Gen 1 extender system is FCC/CE Class A certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.2 Gen 1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.



Includes the ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™

Applications:

  • Remote Storage
  • Conference Rooms
  • Security and Monitoring
  • Test and Measurement



Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

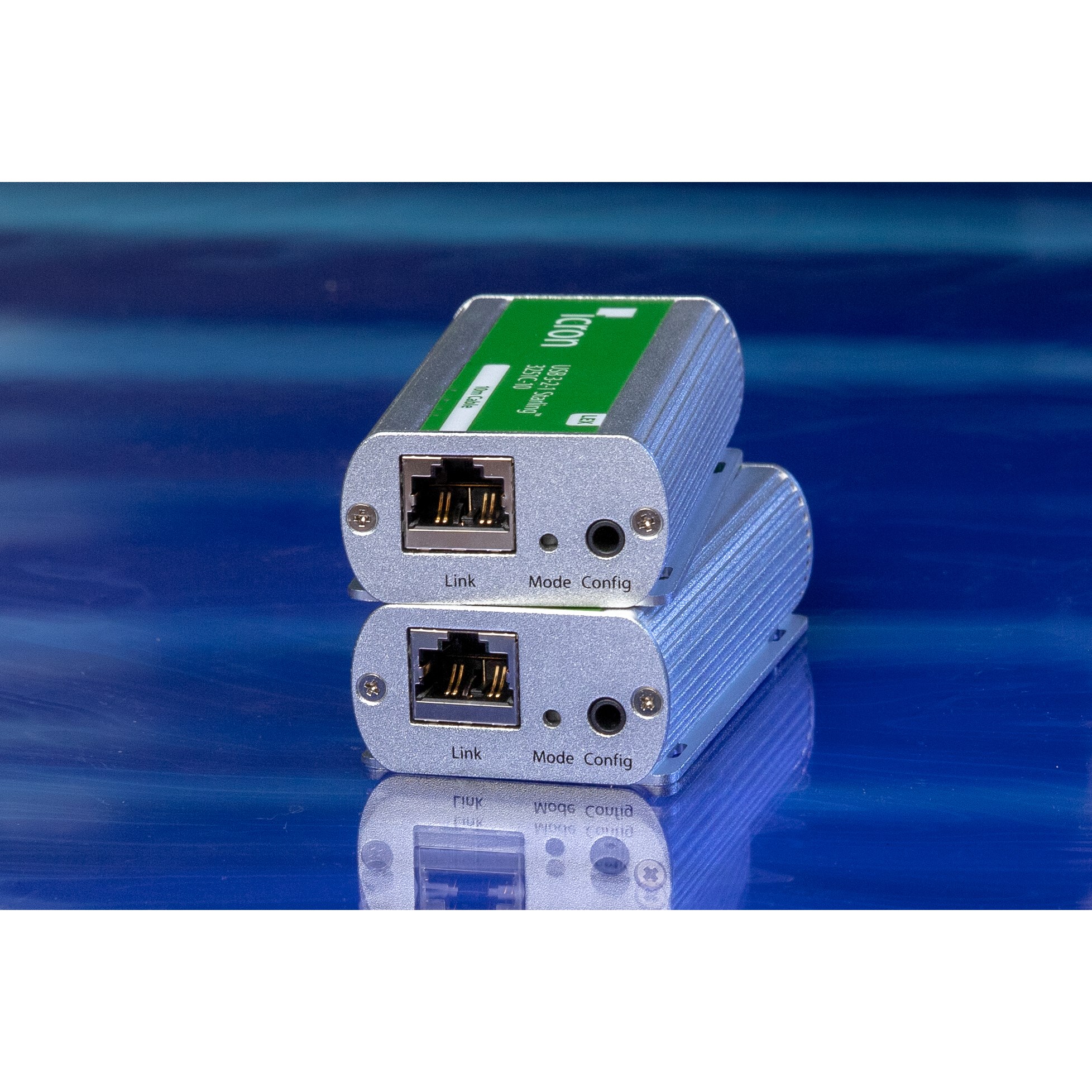

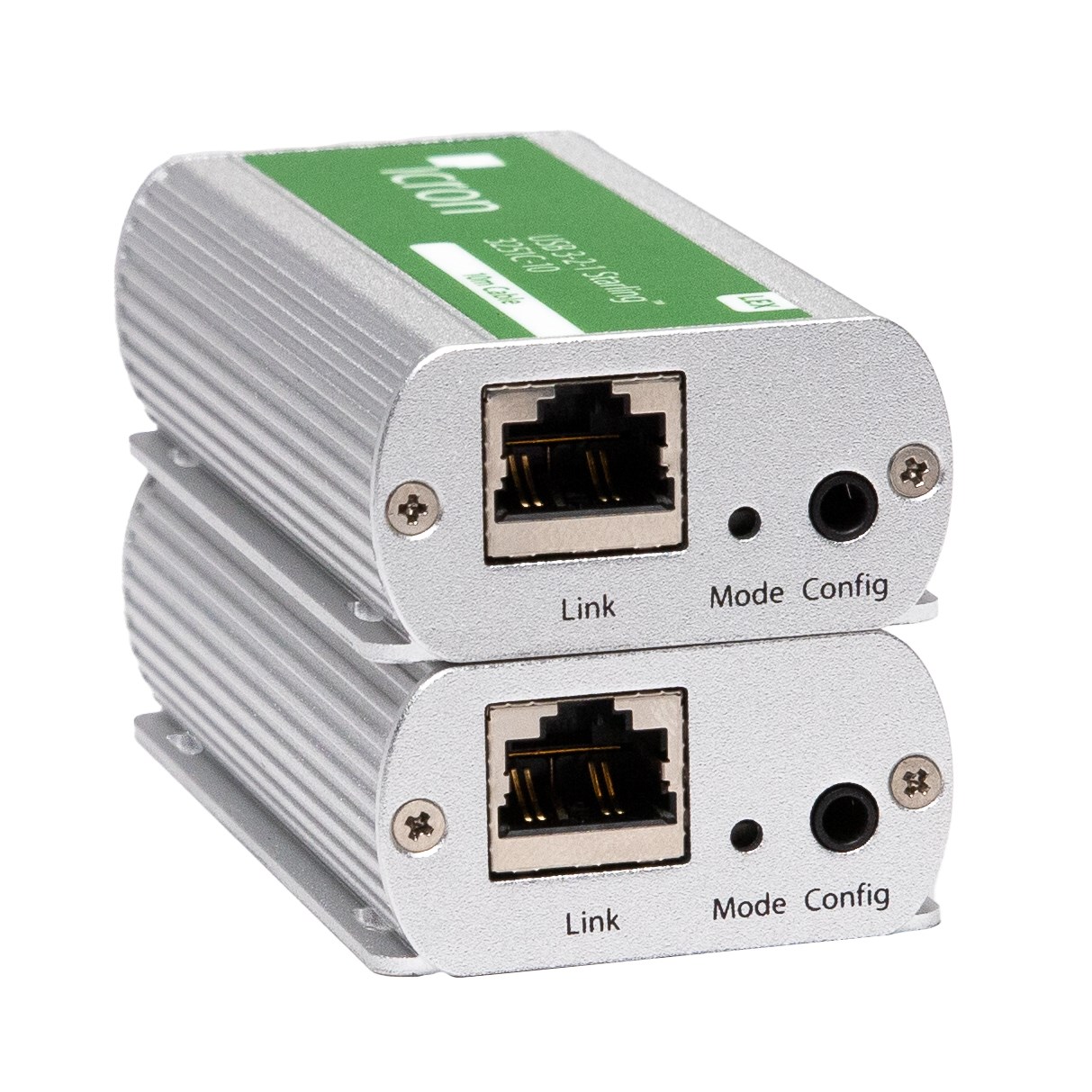

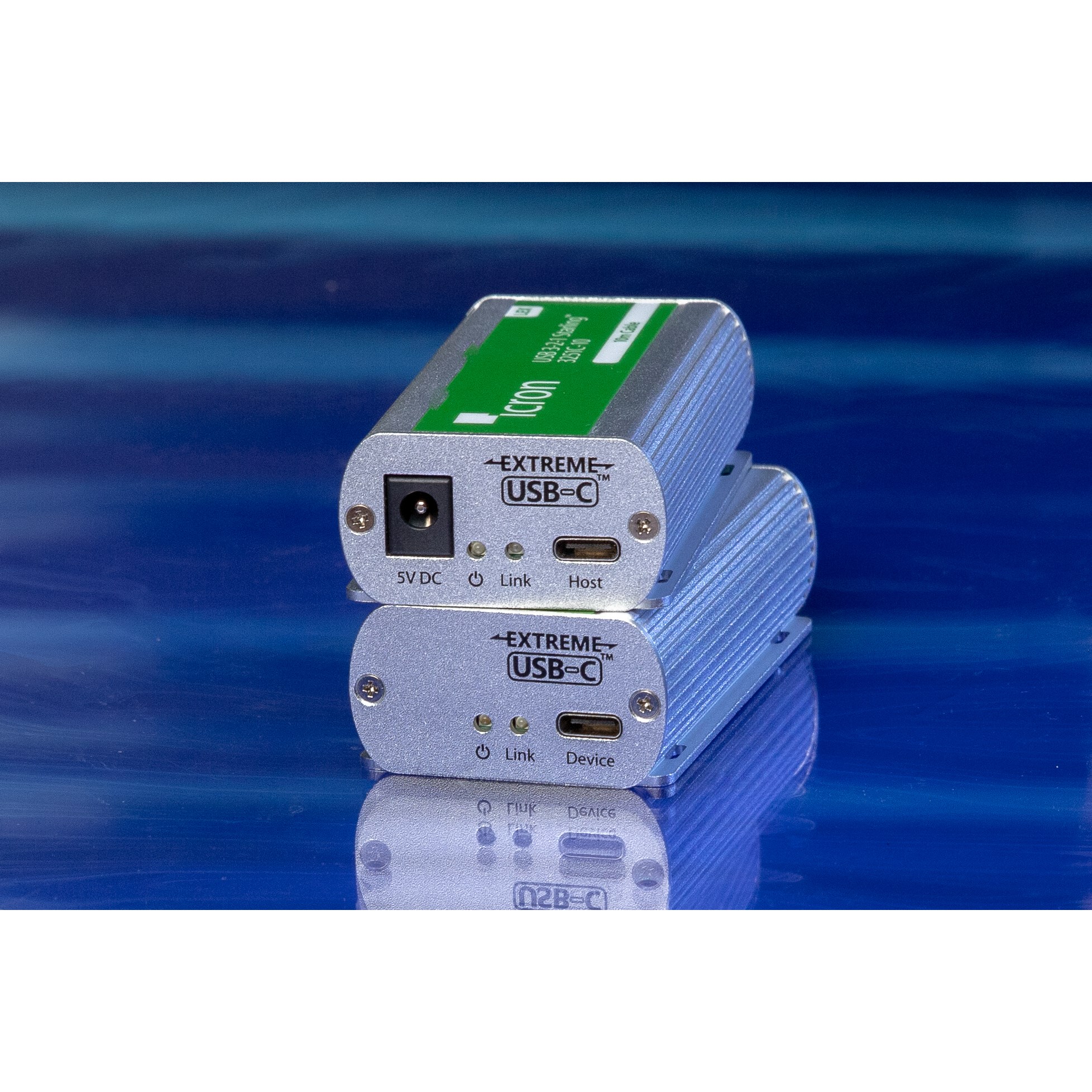

LEX (LOCAL EXTENDER) MECHANICAL DATA
USB 3.2 Gen 1 Type-C Receptacle 1
ARJ45 Link Port 1
5V 3A DC Jack (Power supply sold separately) Yes
Dimensions 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
Silver Anodized Aluminum
REX (REMOTE EXTENDER) MECHANICAL DATA
USB 3.2 Gen 1 Type-C Receptacle 1
ARJ45 Link Port 1
Dimensions 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
Silver Anodized Aluminum
RANGE
Point-to-Point: 10 meters (32.8 feet)
USB SUPPORT
USB Speeds: SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
USB Bandwidth: Up to 5Gbps
Device Compatibility: All Device Types and Classes (Control, Interrupt, Isochronous and Bulk)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: Up to 900mA
Max Number of USB Devices: 30, including hubs
ENVIRONMENTAL
Temperature: Operating: 0 OC – 50 OC (32 OF – 122 OF) , Storage: -20 OC – 70 OC (-4 OF – 158 OF)
Humidity: Operating 20-80% , Storage 10-90% Relative Humidity Non-Condensing
COMPLIANCE
EMC FCC (Class A), CE (Class A)
Environmental RoHS2/3 (CE)
SUPPORT
Warranty: 2 years
PACKAGE CONTENTS
USB 3-2-1 Starling 3251C LEX (Local Extender) 1
USB 3-2-1 Starling 3251C REX (Remote Extender) 1
USB 3.2 Gen 1 USB-C Cable (USB Only) 1
Custon Link Cable 10m Low Smoke cable
Cable Pulling Eye 1
Quick Start Guide 1
