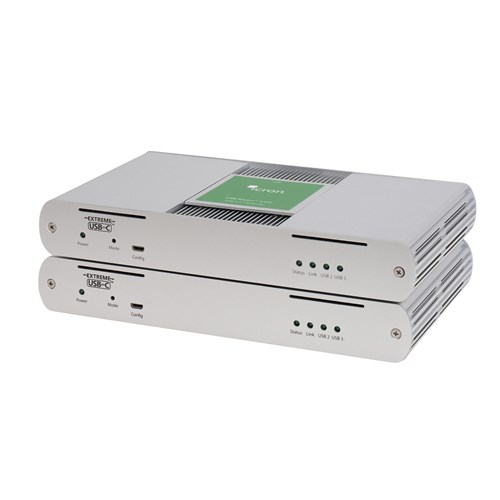

Icron Technologies USB 3-2-1 Raven 3104 Four Port CAT 6a/7 100m Extender

Product Code: IC 00-00424

Key Features
  • USB 3.1 Gen 1 data rate up to 5Gbps
  • Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth; although if Isochronous support is required, use Raven 3104 Pro
  • Four available 3.1 Gen 1 ports
  • 100/1000 Ethernet channel; LAN pass-through
  • Single cable, CAT 6a/7 up to 100m
  • Point-to-point connection
  • FCC and CE (Class B) compliant
$2,345.20 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 3-2-1 Raven 3104 Four Port CAT 6a/7 100m Extender

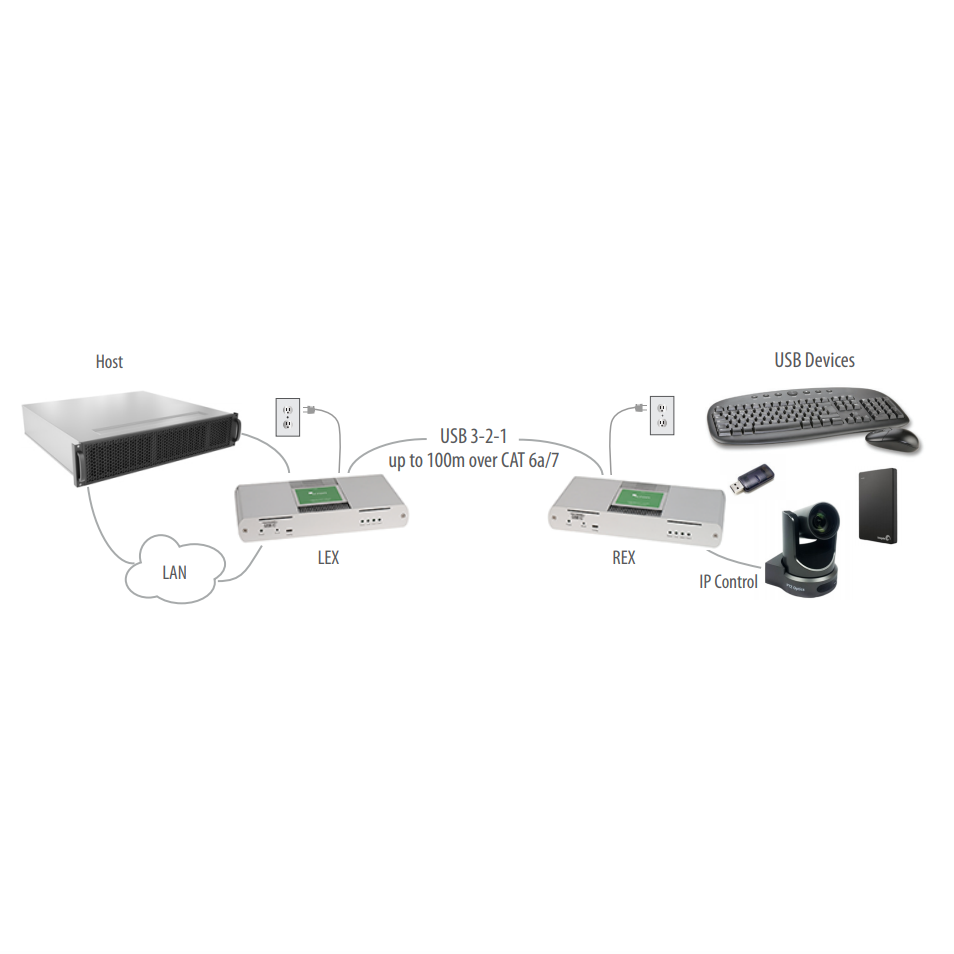

Icron’s USB 3-2-1 Raven 3104 extender system is backward compatible to USB 2.0/1.1 and provide the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types to a host across a point-to-point connection up to 100m over CAT 6a (Raven 3104). The Raven provides an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity, and includes the ExtremeUSB-C™ suite of features: transparent USB extension, true plug and play (no software drivers required) and compatibility with all major operating systems.



Includes the ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™

Applications:

  • Remote Storage
  • Security and Monitoring
  • Video Matrix Systems
  • Conferencing Cameras
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

LEX (LOCAL EXTENDER) MECHANICAL DATA:
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
USB 3.1 B Receptacle 1
RJ45 Ethernet 100/1000 Port 1
RJ45 Ethernet Link Port 1
24V 1A DC Locking Jack Yes
Weight 920g (2.03 lbs.)
REX (REMOTE EXTENDER) MECHANICAL DATA:
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
USB 3.1 A Receptacles 4
RJ45 Ethernet 100/1000 Port 1
RJ45 Ethernet Link Port 1
24V 2.71A DC Locking Jack Yes
Weight 990g (2.18 lbs.)
PACKAGE CONTENTS:
LEX (Local Extender) 1
REX (Remote Extender) 1
USB 3.1 Gen 1 Cable 1
International Locking AC Adapters 2
Country Specific Power Cords 2
Quick Start Guide 1
Packaged weight 2.91kg (6.42 lbs.)
RANGE:
Point-to-Point: Up to 100m over CAT 6a/7
USB SUPPORT:
USB Speeds: SuperSpeed 5 Gbps, High-Speed, Full-Speed, Low-Speed
USB Bandwidth: Up to 5Gbps
Device Compatibility: All Device Types and Classes (Control, Interrupt, and Bulk)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: 1.2A (6W) per USB port
Max Number of USB Devices: 30
ENVIRONMENTAL:
Temperature: 0 OC – 50 OC (32 OF – 122 OF) Operating, -20 OC – 70 OC (-4 OF – 158 OF) Storage
Humidity: 20-80% Operating, 10-90% Storage Relative Humidity Non-Condensing
