Icron Technologies USB 1.1 Rover 1850 Single Port Cat 5e/6/7 85m Extender

Product Code: IC 00-00301

Key Features
The USB Rover®1850 extends USB 1.1 connections beyond the desktop up to 85* metres without external power adapters, ideal for keyboards, mice,  game controllers and interactive whiteboards – including all SMART Boards and Promethean ActivBoards.
$167.39 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 1.1 Rover 1850 Single Port Cat 5e/6/7 85m Extender

USB Rover® products operate over standard solid core Cat 5e UTP cable (the same wiring used in Ethernet). The USB Rover 1850 uses technology ideal for extending USB peripherals and does not require additional software for either the computer or the target devices.

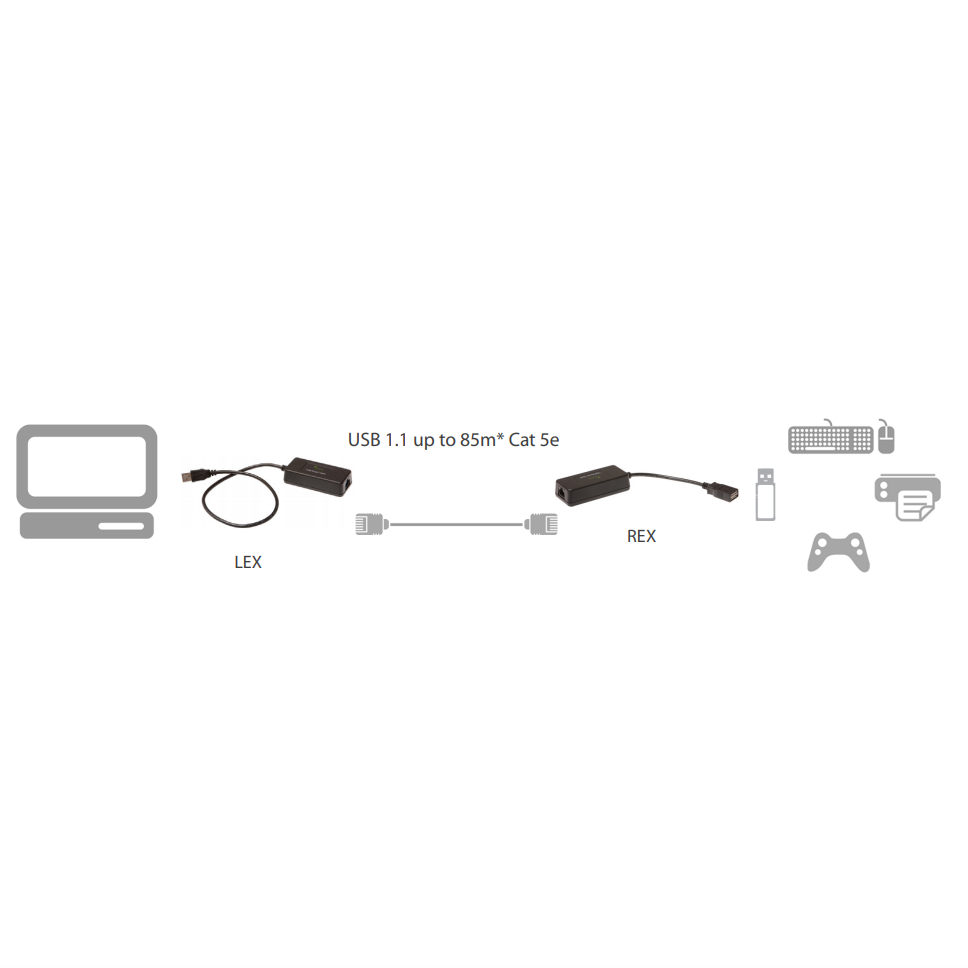

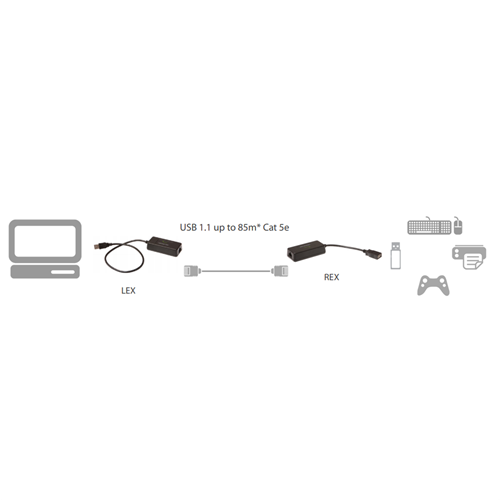

The USB Rover 1850 product is composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e UTP cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).

Icron’s USB Rover 1850 extension system is ideal for use with USB peripherals including: keyboards, mice, interactive white boards (including SMART Boards and Promethean ActivBoards), and game controllers.

Features:

  • Remote extender supplies up to 400mA** to USB devices
  • Supports both full-speed (12 Mbps) and low-speed (1.5 Mbps) throughputs
  • Robust ESD and EFT immunity for industrial environments

Includes the ExtremeUSB® suite of features:

  • True plug and play; no software drivers required
  • Supports all major operating systems: Windows®, Mac OS X®, and Linux®
  • Reliable operation with all USB 2.0 and 1.1 devices, including hubs
  • Patented USB extension technology

Applications:

  • Interactive white board
  • Keyboard and mouse
  • Sensor/data acquisition
  • Industrial control
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
Full-Speed and Low-Speed: Up to 40m (131 ft)
Low-Speed: Up to 85m (279 ft)*

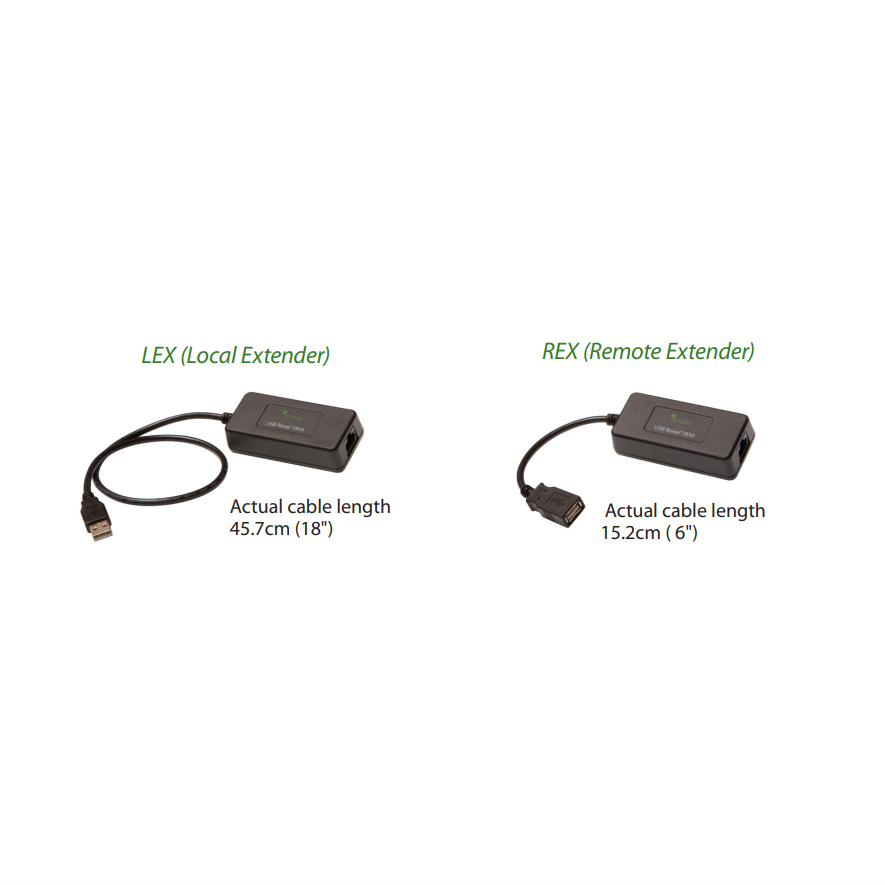

LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type A Plug
Pig Tail Length: 45.7cm (18")
Link Connector: 1 x RJ45
Dimensions: 85mm x 40mm x 22mm (3.34" x 1.57" x 0.87")
Enclosure Material: Black ABS
REX (REMOTE EXTENDER):
USB Connector: 1 x USB Type A Receptacle
Pig Tail Length: 15.2cm (6")
Link Connector: 1 x RJ45
Maximum Current Available: 400mA when LEX is supplied with 700mA
Dimensions: 85mm x 40mm x 22mm (3.34" x 1.57" x 0.87")
Enclosure Material: Black ABS
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
COMPLIANCE:
Emissions: FCC (Class A), CE (Class A)
Immunity: CE Criteria A
Environmental: RoHS2 (CE)
Safety: CPSIA, Flammability V-1
