Humantechnik earis Max Set Including Headphone Transmitter and Charging Station

Product Code: HT A-4140-0

Key Features
  • This set includes: Bluetooth Headphones, Bluetooth Transmitter and Charging Station
  • Bluetooth ® version 5.3
  • Auracast™
  • LE-Audio
  • Measuring and saving individual hearing profile values
  • Real-time transmission using AAC and LC3
  • HiRes LDAC (high-resolution audio)
  • Noise cancellation ANC
  • Transparency function
  • Multipoint connection
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

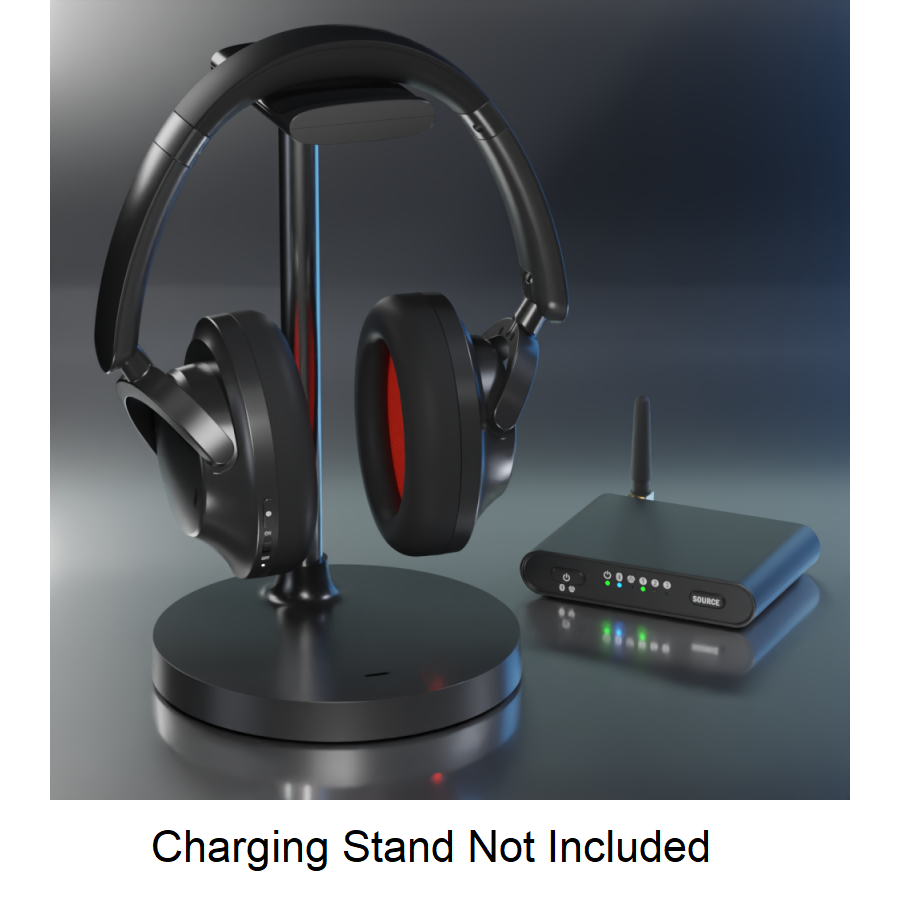

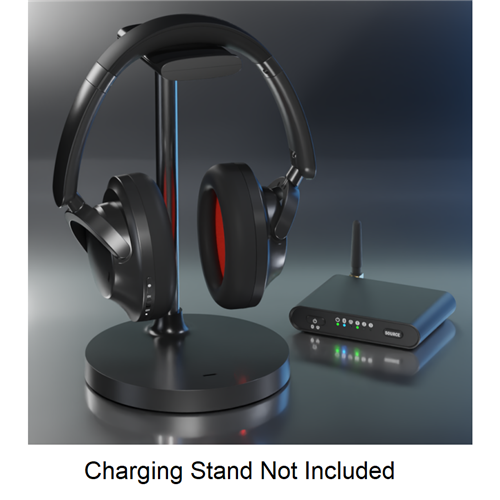

Humantechnik earis Max Bluetooth® Auracast™ Set Including Headphone Transmitter and Charging Station

»earisMAX« is structured as a modular Bluetooth® Auracast™ system that opens a new chapter in Bluetooth audio in terms of performance, comfort and application flexibility.

The system consists of 3 components that can be used individually or in combination:

1) The smart Bluetooth® 5.3 headphones earisMAX

The headphones are at the heart of the »earisMAX« system. These serve as receivers for all corresponding audio data streams - from Bluetooth ® Classic (single-channel) to Bluetooth ® LE audio (two-channel) to Auracast™ (broadcast audio). The headphones are equipped as standard with real-time transmission via AAC and LC3, high-resolution HiRes LDAC audio and active noise cancellation (ANC) including transparency mode.
When ANC is activated, microphones integrated into the headphones continuously record ambient noise and play it into the Bluetooth ® audio streams. Noise can be completely suppressed or relevant sounds, such as direct speech from people, call, doorbell or emergency signals, can be highlighted using transparency mode.

2) The earisMAX charging stand

Charge from 0 to 100 percent in a short time: 80 hours of sound enjoyment
The headphone battery is charged via the integrated USB-C port (from 0 to 100% in one hour). The set includes the storage and wireless charging stand for the headphones. With the inductive charging process, a full charge is achieved in 2 hours 40 minutes). With a full battery, the »earisMAX« headphones provide around 80 hours of individual sound enjoyment.

3) The earisMAX Bluetooth® Auracast™ transmitter

With this transmitter you can broadcast the sound of your TV or hi-fi system via Bluetooth. The transmitter has the following connections:

  • Analog audio via 3.5 mm jack
  • Optical input (3.5 mm optical input, Toslink adapter included)
  • HDMI
  • Microphone input via 3.5 mm jack socket

Selection of different Bluetooth data streams / transmission options:

  • Bluetooth Classic (Bluetooth ® -enabled hearing components, such as headphones or hearing aids: single-channel, pairing with only one receiver possible)
  • Bluetooth LE audio (two-channel, left and right, pairing with only one receiver possible)
  • Bluetooth ® Auracast™ (unlimited number of receivers possible)

The power is supplied via the USB-C port of the connected device (use the USB port of the audio source if necessary). The Bluetooth modes previously set on the transmitter remain retained/saved in the device.

Scope of delivery:

  • earisMAX headphones: USB-C charging cable, soft case for storage, operating instructions, safety instructions.
  • earisMAX transmitter: USB power adapter, USB-C charging cable, soft case for storage, operating instructions, safety instructions.
  • earisMAX charging stand: charging stand, USB power adapter, USB-C charging cable, operating instructions, safety instructions.



Auracast™ - an outlook

It is already becoming apparent that the new Bluetooth® Auracast™ broadcast audio codec will significantly expand the boundaries of mobile hearing and hearing assistance. Previously established transmission technologies for barrier-free hearing are likely to retain their importance for many years to come, while the spread of Auracast™ broadcast audio is progressing continuously and dynamically.

Put simply, Auracast™ broadcast audio is comparable to a radio station, albeit with a limited range. If you are in a public area that is supplied with Auracast™ audio signals by a Bluetooth® transmitter, you can receive these signals with your Bluetooth® enabled hearing aids or earisMAX headphones and hear high-quality audio. Auracast™ is expected to be the technology for the next generation of assistive listening systems in the near future, improving accessibility to audio and enhancing quality of life through better hearing.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

earis Max Headphones Specifications:

Bluetooth® version: 5.3 (LE audio, LDAC and Auracast™)
High-resolution sound AAC, LC3
Smartphone app available free of charge for Android and iOS, with comprehensive sound customisation functions and audiometric settings
ANC (active noise cancelling) can be parameterised
Transparency mode can be parameterised
Multi-point connection can be activated
Use detection available as standard
Frequency range 20 Hz - 20 kHz
Max. SPLI (sound pressure level 1 kHz) 123 dB
THD (at 1 kHz) < 0.5%
Operating time per battery charge approx. 80 hours
Inductive charging time via support stand approx. 2:40 hours
Charging time directly via USB port approx. 1 hour
Transmission range 10 m
Sound setting can be adjusted via smartphone app
Volume control infinitely variable
Microphones (receivers) integrated
Weight 250 g
Dimensions 170 x 192 x 82 mm
Rechargeable battery 720 mAh
Scope of delivery Bluetooth® headphones earisMAX, USB-C charging cable, storage soft case, Plane adapter

earis Max Bluetooth Transmitter Specifications:

Bluetooth® version 5.3 with LE Audio, Auracast™
BT SoC AB1565M
Latency < 45 ms (Auracast-Mode)
Bluetooth mode BIS, Classic, LE audio, Auracast™
Codec LC3, SBC
Profile support PBS, A2DP
Audio input SPDIF (Toslink), AUX (analogue audio input), MIC input, HDMI
Transmission power ≤10 dBm
Audio bypass (passthrough) SPDIF & line out
Operation range Up to 30 m
Buttons Power, Pairing, Mode switch, Audio source selection
DC input 5V w/o battery
LED indicators 6pcs: Power, Bluetooth, Auracast, SPDIF, AUX, MIC
OS supported Bluetooth / Windows
Width: 100 mm
Depth: 88 mm (with antenna)
Height: 20 mm (60 mm with upright antenna)
Weight: 90 g
Package contents: »earisMAX« Bluetooth® Auracast™ transmitter / audio connection cable with 3.5 mm stereo jack plug / Toslink cable / RCA adapter to 3.5 mm jack plug
