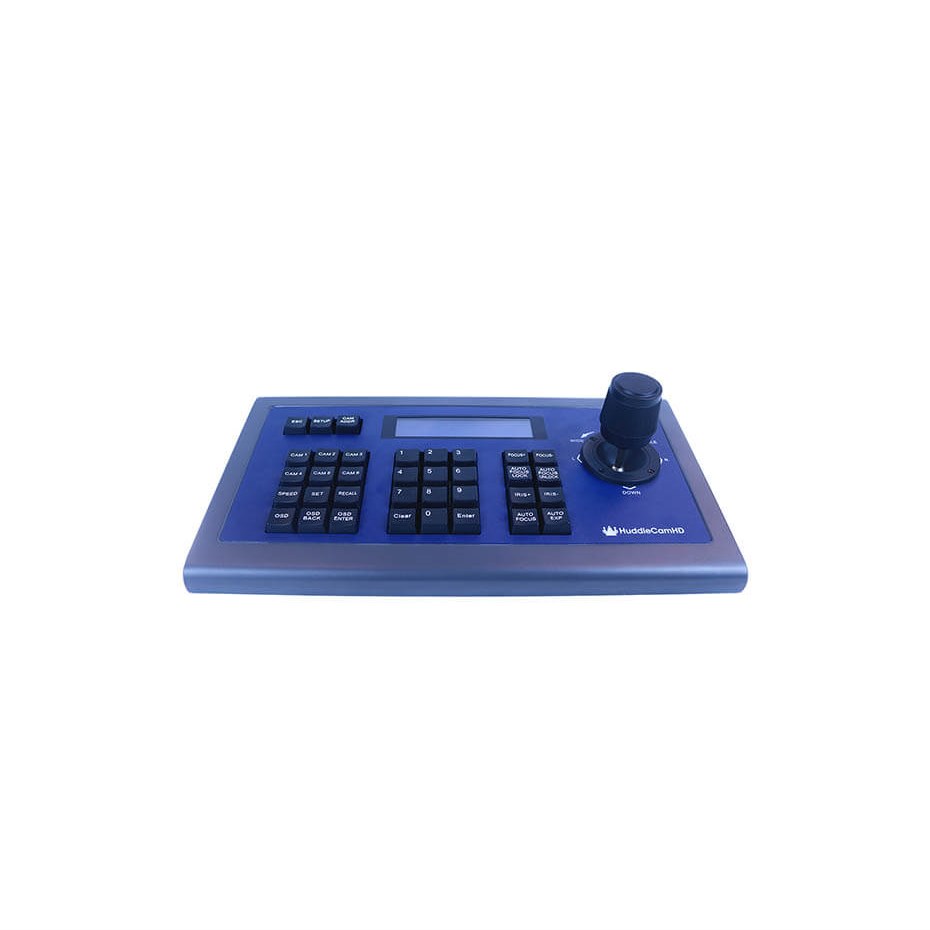

HuddleCamHD HC-JOY-G3 PTZ Joystick Controller

Product Code: HUD-HC-JOY-G3

Key Features
  • Durable Metal Housing
  • RS232, RS485, & RS422
  • On Screen Display Menu control
  • Variable Pan, Tilt, Zoom & Focus speed control
  • Iris, Focus, & Preset control
  • Camera Quick Select keys
  • Quick Preset Set & Call keys
$487.15 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

HuddleCamHD HC-JOY-G3 PTZ Joystick Controller

Introducing the re-designed HC-JOY-G3 PTZ joystick controller from HuddleCamHD. This third-generation joystick includes everything you loved about our 2nd generation joystick with significant improvements for user experiences.

Designed with a wide variety of PTZ camera operation environments in mind, the third generation joystick now features six quick camera select buttons on the left-hand side of the controller. Easy pan, tilt, & zoom control for any
VISCA or PELCO protocol camera! Adjust pan, tilt, zoom, & focus speeds.
Use 3-dimensional joystick with “twist” for zoom control.

Additional Features:

  • VISCA, PELCO-P & D
  • Activity LEDs
  • Easy setup
  • Three-Axis Joystick
  • No more useless buttons!



Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Connections: RS-232, RS-485, RS-422
Baud Rate: 1200-19200 bps
Interfaces: DB9 RS-232; 5SCT RS-485/RS-422
Maximum Cameras: Control up to 255 Cameras
Maximum Presets: Up to 255 Presets
Maximum Distance: 3,937′ (1200m) using 24 gauge twisted pair
Power: 6W (12VDC)
Working Temp: 14°F – 122°F (-10°C – +50°C)
Weight: 3.4 lbs (1.6 kg)
Dimensions (mm.): 320mm(W) x 181mm(D) x 110mm(H)
What’s in the box?
Three-Axis Joystick
RS232 cable
DC12V Power Supply
User Manual
