AUDIOropa PRO IR-400 Kit for Large Spaces

Product Code: HT PROIR400KIT

Key Features

This PRO IR 400 Kit Comprises of the Following:

  • 1 x PRO IR-400 IR-Transmitter (HT A-4026-0)
  • 5 x RCI102 2-Channel IR Under Chin-Receiver (HT A-4043-0)
  • 1 x 5-Bay Charger for Under Chin-Receiver (HT A-4976-0)
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 1-3 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

AUDIOropa PRO IR-400 Kit for Large Spaces

COMPONENTS:

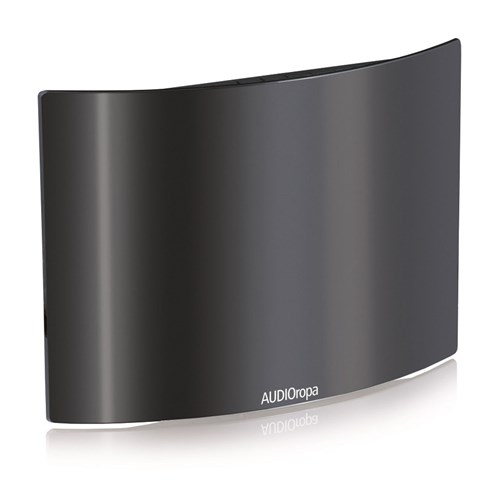

1 X PRO IR-400 IR-TRANSMITTER :

The two-channel infrared transmitter PRO IR-400 combines the modulator and transmitter in one single unit. This design saves costs and can be mounted in a space-saving manner.

The infrared light exists in a wide angle, which spreads efficiently throughout the supplied areas in the club-shape typical for this transmission method.

The steady transmission of the PRO IR-400 is realised at a working bandwidth of 2.3 and 2.8 MHz without the interference of ambient light. In 1-channel mode, the transmitter supplies areas of up to 900 sqm. Adding further PRO IR-400 transmitters into the setup allows the receiving range to be expanded easily. The package includes an attachment set for wall and ceiling mounting. Tripods are also available for free-standing installations.

Ideal for:

  • Cinemas
  • Parallel transfer of two different languages (channel selection)
  • Conference and meeting rooms, multimedia rooms
  • Court rooms and lecture halls
  • Schools, universities
  • Churches

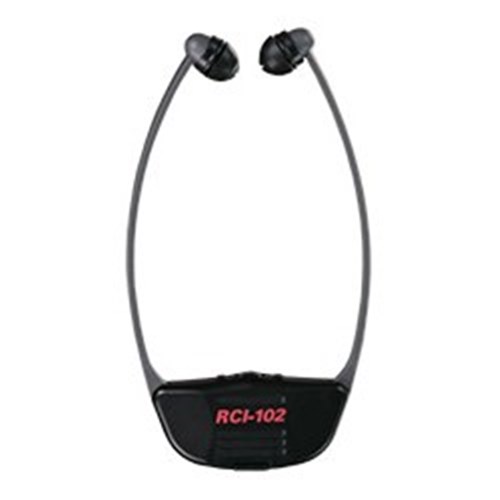

5 X RCI102 2-CH IR UNDERCHIN-RECEIVER:

The RCI-102, is an ergonomically designed under-the-chin receiver that weighs just 52 grams and is equipped with swivelling earpieces, which means that the earpieces retain their position in the ear even when the user turns his/her head. The soft flexible material of the ear buds nestles gently into the auditory canal to effectively subdue ambient noise.

Selectable stereo or mono reception, e.g. for multi-language transmissions.

The RCI-102 is equipped with a switch to select the frequency channels. Both channels can be used simultaneously for stereo transmissions. If the event organizer uses the 2.3 MHz and the 2.8 MHz channels separately, in order to transmit in two different languages at the same time, the listener can select the channel in his/her preferred language and receive the information in mono mode.

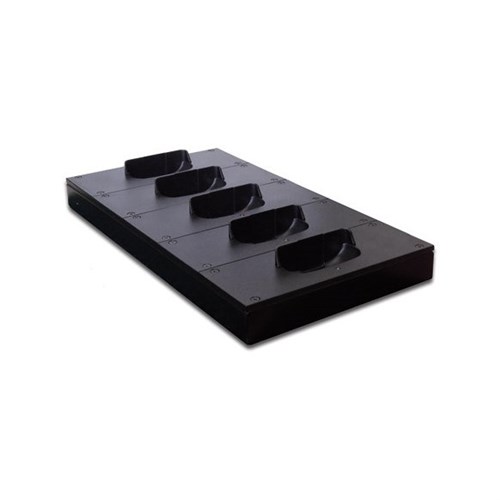

1 X 5-BAY CHARGER FOR UNDERCHIN-RECEIVER:

5-bay charger suited for LPU-1 und RCI-102.

Recharger with 5 independent recharging bays for the receivers

Exempt from GST under exemption code R11

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (WxHxD) 41.2 x 32.7 x 7.5 cm
Weight 1,100 g
Colour Housing Anthracite / front panel: dark red transparent
Power supply adapter Primary 230 V~ 50-60 Hz, secondary 28 V DC
DC-input Low-voltage connector, 28 V DC, middle is »+«-Pol
Power consumption 700 mA
Carrier frequencies 2.3 MHz (left or A-channel) and 2.8 MHz (right or B-channel)
Input impedance Audio-In: 18 kΩ
Mic-In: 1.3 kΩ
Trigger voltage of the Audio-In: 110 mV
Input level display Mic-In: 1.5 mV
Total range at +/- 3 dB Lower limit: 400 mV
Upper limit: 6 V
Audio-Inputs Cinch (RCA) for left and right and/or A and B-channel
Sync-in / Sync-Out Cinch (RCA) for left and right and/or A and B-channel
Microphone input 6.4 mm Stereo-jack plug
Audio display Input level-LEDs, one per channel.
Sender range 30 metre, closed room
Temperature range 0-40 °C
Attachment Wall attachment with conventional hooks,
Tripod attachment via standard screw attachments
Conformities CE, WEEE, RoHS
Compatible receiver RCI-102, IP112

RCI102 2-CH IR UNDERCHIN-RECEIVER

Weight 52 g with battery
Colour and material ABS plastic, black and red
Rechargeable battery, battery life A100 NiMH battery, approx. 5 h
Modulation processes FM, mono or stereo
Sound frequency transmission range 15 - 20.000 Hz
Operating frequencies 2.3 MHz and 2.8 MHz Possible selections: stereo reception or either frequency for mono reception
Harmonic distortion <1%
Signal-to-noise ratio Typ. 60 dB
Controls Knob to adjust the volume; Balance can be adjusted with the help of a screwdriver
Maximum volume Approx. 120 dB
Main switch Integrated in the »receiver«
