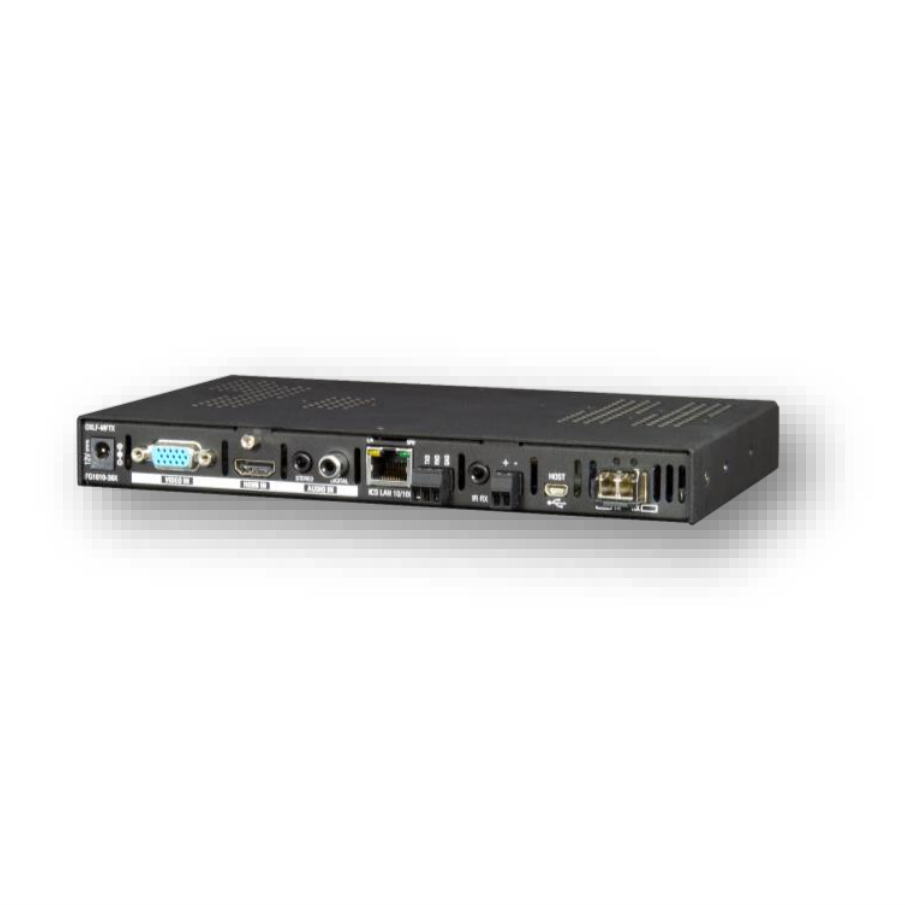

AMX DXF-TX-MMS - DXLink Fiber Multi-Format Transmitter Module (multimode/simplex)

Product Code: AMX FG1010-363FX

Key Features
DXLink Fiber Multi-Format Transmitter Module (multimode/simplex), HDCP compliant, compatible with Enova DGX DXLink Multimode Fiber Input Boards
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 300 meters over multimode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video at the fastest data rate in the industry 10 Gbps.

The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.

Features

  • HDCP Compliance Over Fiber Transmit HDCP compliant video including HDMI up to 300 m
  • Industry Leading Data Rate DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • InstaGate Pro® Technology Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints it just works
  • Field Serviceable Fiber Modules Easily remove and replace SFP modules in the field
  • Multi-Format Analog Port and HDMI Port Supports legacy analog signals RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals



*See Duplex models for bidirectional control over fiber. Simplex models do not support control transport over fiber (such as Ethernet, USB, IR, Serial Control or EDID); although when used as part of a complete Enova DGX solution, control can be provided if a supplemental independent network connection is used. See the "Instruction Manual Enova DGX Digital Media Switchers" for details.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) 1" x 8 3/4" x 5 1/5" (2.54 cm x 22.12 cm x 13.08 cm)
DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); Fiber Cable Type: 50/125 m; Fiber Cable Length: 300 m (984 ft)
USB (HID) (1) USB Mini A/B Connector ("HOST")
Front Connectors Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM"); Local Loopback Output Connector: (1) HDMI Type A Female, non-scaling ("LOCAL OUT")
Back Connectors Video Input: (1) HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c / S-Video, composite (breakout cable is required for RGB formats); HDMI Input: (1) HDMI Type A Female; Analog Stereo Input: (1) 3.5mm Mini-Stereo Jack; S/PDIF Digital Audio Input: (1) RCA Jack
HDMI Compatible Formats: HDMI, HDCP , DVI
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit
HDCP & DDC/EDID HDCP Support: Supports AMX HDCP InstaGate Pro Technology. DXLink fiber products have HDCP key support for up to 16 sinks per output, independent of source device; DDC/EDID Support: Yes
Analog Video Compatible Formats RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers FG1010-363
