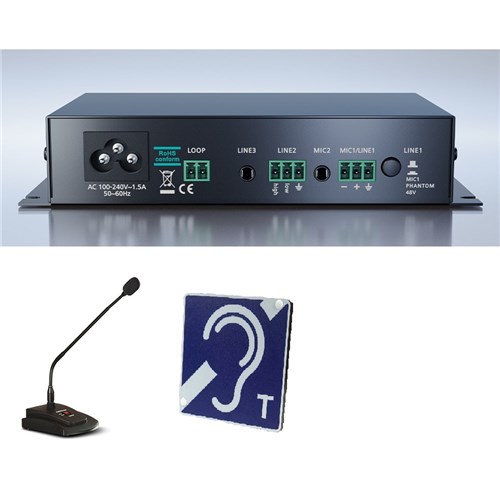

AUDIOropa Digital Loop Amplifier Pro Loop NX3 with SignLoop and Table Mic EH1207

Digital Loop Amplifier Pro Loop NX3 with SignLoop and Table Mic EH1207

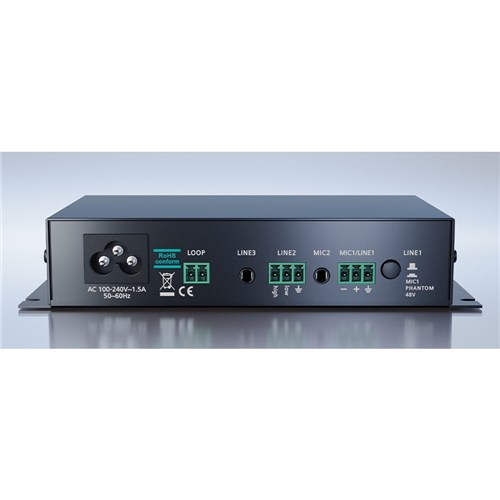

The Pro Loop NX3 loop amplifier, like all amplifiers in the NX series, is designed primarily for continuous use. The integrated switched-mode power supply and the Class-D amplifier design enable high efficiency with low waste heat and forms the basis for high reliability and operational safety.

• Automatic Gain Control (AGC) ensures a consistent level on the induction loop
• Metal Loss Correction (MLC) can be used to correct the frequency response due to metal structures in the vicinity.

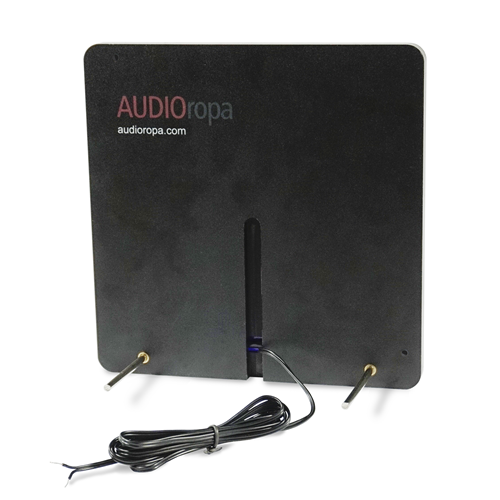

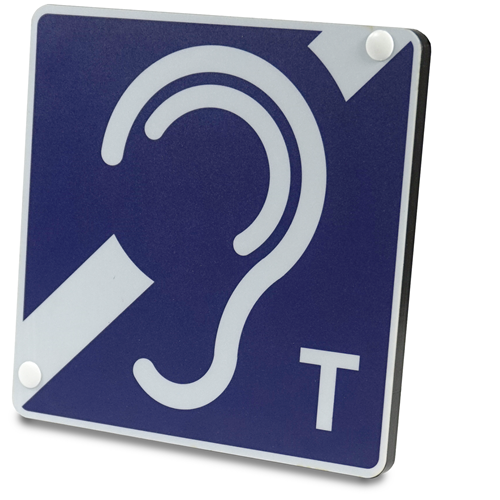

Sign Loop: Information sign and inductive loop in one

Not only does it indicate that an inductive loop is present - it is the loop itself. The magnetic field generated is limited to a small range. This makes the installation suitable for information desks and bank counters as well as other areas of application where discretion also plays a role. The LA-70 is a suitable driver for this small loop.

Sign Loop Characteristics

• Inductive information sign
• Space-saving installation
• Suitable for wall mounting, can also be placed on surfaces thanks to the enclosed brackets
• Dimensions (W x H x D): 200 mm x 200 mm x 10 mm
• Weight: 430 g
• Application range: 10 - 60 cm, according to the requirements of DIN IEC 60118-4 at 2.5 A loop current

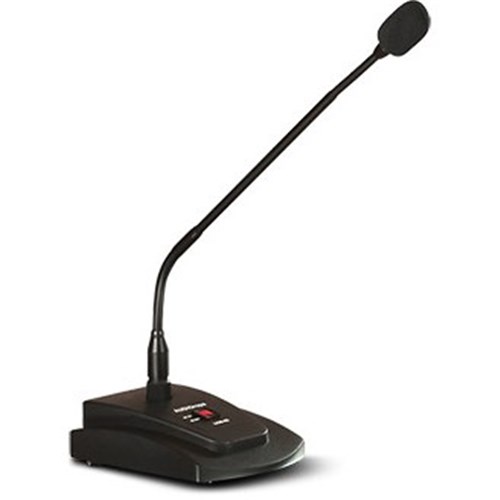

The Table Microphone has XLR plug connection and requires 2 AA batteries.
