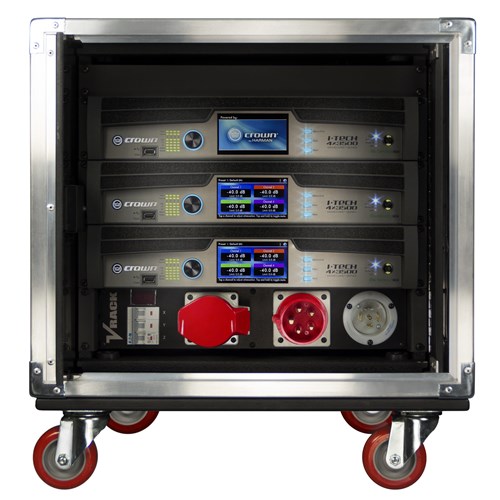

Crown VRACK 3 x IT4X3500HD Amplifiers Rack PD + I/O

Product Code: CWN VRACKHD4

Key Features
  • 3 IT4X3500HD DriveCore Series amplifiers
  • Fully assembled package from one source
  • Worldwide power distribution with both L21-30 and 32A CEE-Form connections
  • Flexible input panel with Analog, AES, and VDrive
  • Fail-over AES and network connection
  • VDrive AES digital distribution over CAT5
  • Built-in network control
  • Built-in captive suspension
  • Shock-mounted rack
  • Removable dolly board
  • Side-storing rack doors
  • Entire package is UL/CSA/ETL
  • HiQnet™ control – System Architect, JBL Performance Manager, Powered by Crown and HiQnet Motion Control
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Crown VRACK 3 x IT4X3500HD Amplifiers Rack PD + I/O

The checklist for each performance setup is a demanding one. Building amplifier racks. Configuring systems. Safety approvals. Keeping technicians working efficiently. The VRack complete amplification system from Crown now makes the job much easier for you and your team. Designed for optimum performance and setup simplicity, the VRack gives you a customized, turnkey amplification package, complete with full safety approvals.

With Crown-engineered components already built in and no assembly required, it’s an easy-to-configure, all-in-one amplifier solution that eliminates the time-consuming process of building amp racks. This frees up your technical team to handle other important setup tasks.

The VRack delivers superb power distribution anywhere in the world and features innovative software for convenient, simplified control, giving you a versatile, worry-free rack system that’s always ready to go.

More Power

Crown OMNIDRIVEHD™ Digital Signal Processing, including:

  • LevelMax™ Limiters

  • Audibly superior FIR Filters

  • Innovative Power Factor Correction technology

  • Optimal output at all AC main voltages and frequencies

  • 5 pin CEE form and 5 pin Hubbell Twist Lock

  • One amplifier per phase

More Control

Innovative software allows:

  • Monitoring and adjustment on rack-by-rack basis

  • All changes for all 3 amps made with one interface

  • Monitors input metering (peak and RMS), output metering (peak and RMS) and overall gain reduction

  • Built-in network and AES failover sends network and AES info to the next rack even if there is an AC failure

  • Standardized package configurations designed to optimize speaker performance

  • Greater cross-renting options with "go anywhere" capability

More Versatility

  • Allows multiple configurations for different types of speakers

  • AES, VDrive, Analog and Network inputs for multiple connections

  • Dimensions permit easy shipment: US and European truck configurations, sea containers, etc.

  • Captive suspension provides lifting and hoisting options for venue flexibility

  • Run 120VAC or 208VAC (US) or 220VAC to 240VAC (international) with the flip of a switch

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Connector 5 pin CEE form and 5 pin Hubbell Twist Lock
Weight 184 lbs (84.5 kgs)
Dimensions 22.5" x 23.5" x 31.25" (57.2 cm x 59.7 cm x 79.4 cm)
