  • Bettear B-CASTER-S Auracast Transmitter - Analog Input and Ethernet Switching - White

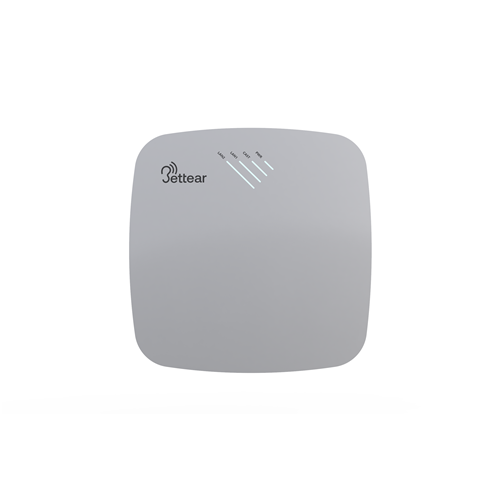

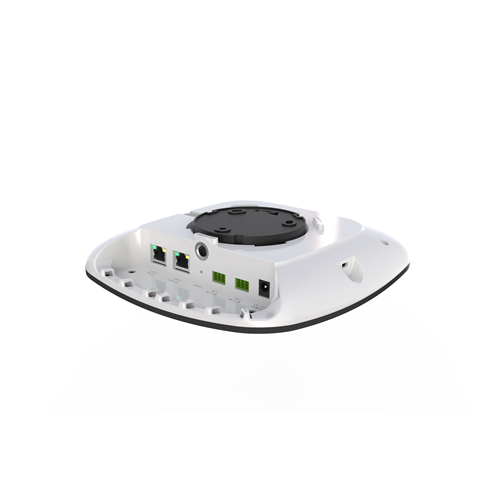

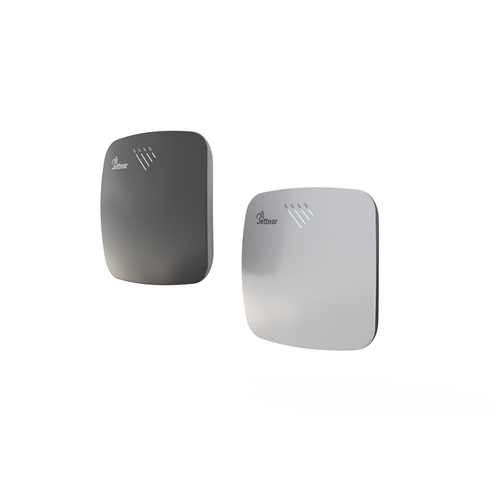

Bettear B-CASTER-S Auracast Transmitter - Analog Input and Ethernet Switching - White

Product Code: HT A-5555-W

Key Features
  • B-CASTER-S model - Analog Input & Ethernet Switching (PoE & Audio)
  • Colour: White
  • Max TX Power 10dBm
  • LC3 sampling rates 16/24/48 Khz
  • Audio streaming with low latency (<40 ms)
  • Dual-purpose streaming – parallel streaming in two different qualities
  • Choice of open or password-protected audio streaming
  • The »B-CASTER« offers robust and reliable signal coverage of up to 100 m, even in difficult environments (indoors and outdoors).
  • Excellent HF technology for comprehensive radio coverage
  • DSP for audio customisation (AGC, LPF, HPF)
  • Cascadable power and audio (with B-Caster S model)
  • Web management dashboard enables effortless configuration.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Bettear B-CASTER-S Auracast Transmitter - Analog Input and Ethernet Switching - White

**Pre-order for March 2025**

The »B-CASTER« Auracast™ streamer represents an innovation in audio streaming technology: Auracast™ broadcast audio allows wireless transmission to an unlimited number of Auracast™-enabled receivers. These include hearing aids, cochlear implants (CI) or headphones. People with hearing loss can experience significantly greater speech intelligibility and sound depth with Auracast™.

The »B-CASTER« can be operated independently in plug-and-play mode. With the use of the realisation »B-Caster S«, a hybrid mode setup together with the »B-SHOW« WiFi streaming server (WiFi streaming product group) is also possible. Hybrid mode ensures compatibility with modern and many classic hearing aids.

The streamer is characterised by reliable, stable audio supply with a long range. It can be easily and conveniently integrated into a wide range of environments and applications. Typical areas of application include conference rooms, theatres and other cultural venues, cinemas, educational institutions and public transport applications such as airports, railway stations, trains and more.

Exempt from GST under exemption code R11

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Hardware
Audio Input Channels: 1 Stereo / 2 Mono
Maximum Input Voltage: 2.1Vrms (4.2Vrms for balanced input)

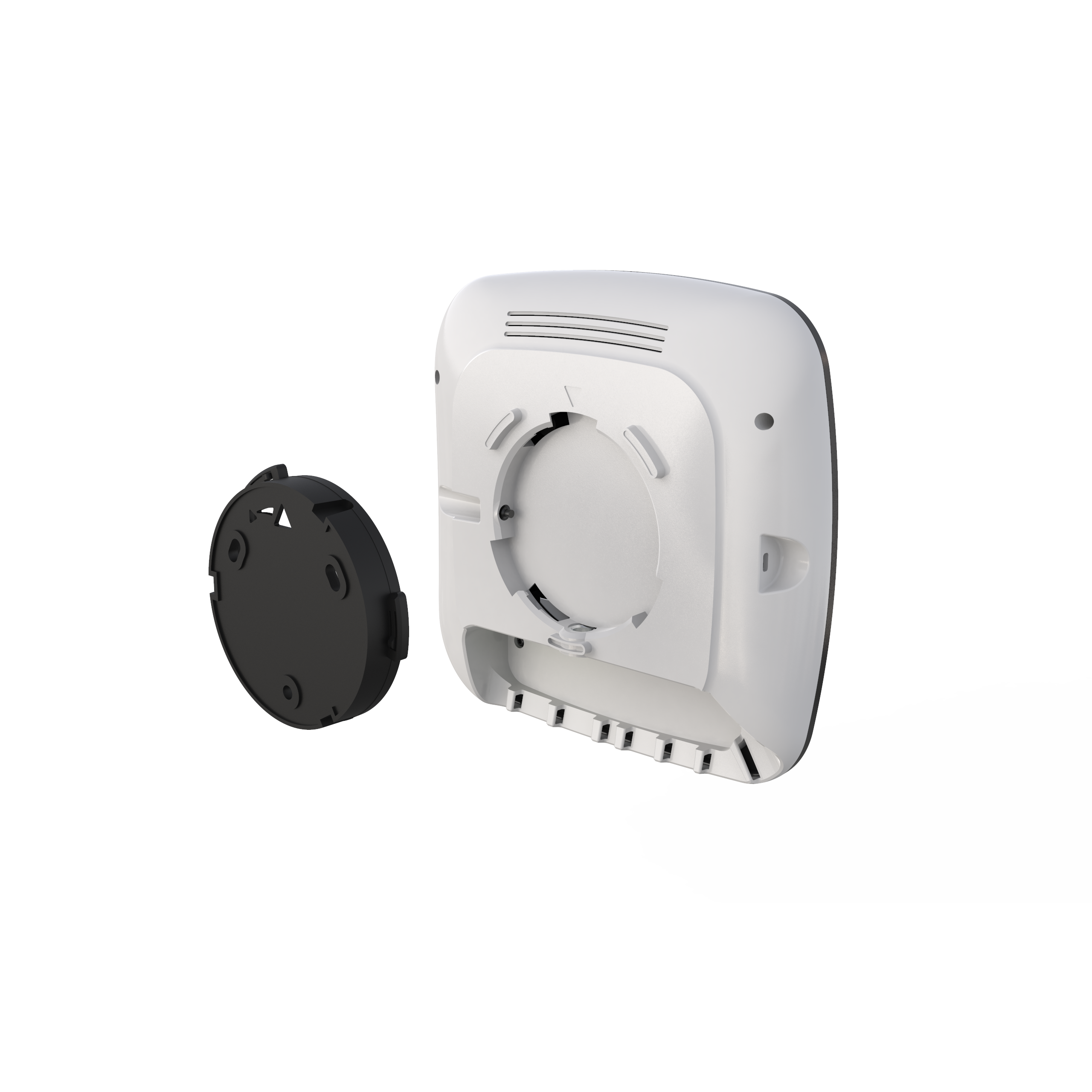

Mounting: Wall/Ceiling Mount/ 3/8” Microphone stand
Power Supply: 12 VDC (Positive polarity), 2.5A
Operating Temperature: 0 ºC – 55 ºC
Regulatory: FCC, CE, cUL
Network
Transmission technology: AuracastTM (Bluetooth® 5.3)
2 1 GbE RJ45
LAN 1 (30 W PoE+ In)
LAN 2 (15.4 W PoE out)
Audio
ADC Signal-to-Noise Ratio: 110dB
DAC Signal-to-Noise ratio: 112dB
ADC THD+N: -90dB
DAC THD+N: -93 dB
Frequency Response: 10Hz-22kHz
Input Gain: -12 dB bis 32dB
Automatic Gain Control (AGC): Switchable
Audio Filter: HPF und LPF
Codec: LC3
Sample rate: B-Caster S: 16/24/48 kHz
Bit Depth: 32 bits
