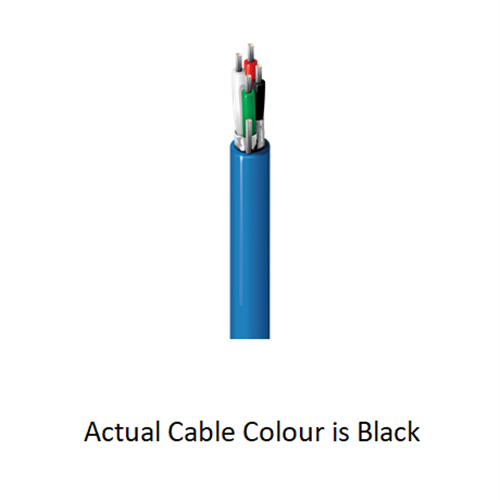

Belden Analog Audio Shipboard Cable 2 Pair 22AWG Install Individually Screened with 1 Drain Wire LSOH Black - 305m Reel

Product Code: 8723SB 0101000

Key Features

Multi-Conductor - Audio Control Interconnect Shipboard Cable 2 FS PR 22 AWG PP FRNHPO Black

$4.24 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden Multi-Conductor - Audio Control Interconnect Shipboard Cable 2 FS PR 22 AWG PP FRNHPO Black

Description

22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Conductor Count 2 PAIRS
Conductor Material TINNED COPPER
Conductor Size 22 AWG (AMERICAN WIRE GAUGE)
Conductor Type STRANDED CONDUCTOR
Fire Rating LOW SMOKE ZERO HALOGEN (LSZH)
Insulation Material PP-POLYPROPYLENE
Jacket Material LSZH-LOW SMOKE ZERO HALOGEN
NEC Rating NEC CMG
Screen/Shield Type FOIL SHIELDED - ALUM/MYLAR
Screen/Shield YES
Shield Construction INDIVL/FOIL SIDE & DRAIN OUT
UNSPSC Code 26121613
