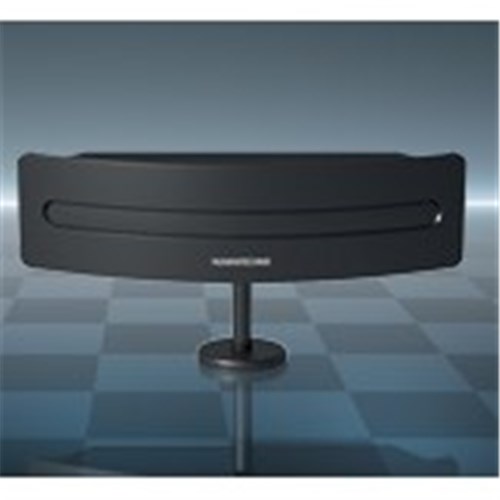

AUDIOropa PRO IR-202 Infrared Transmitter with Modulator for Medium Range

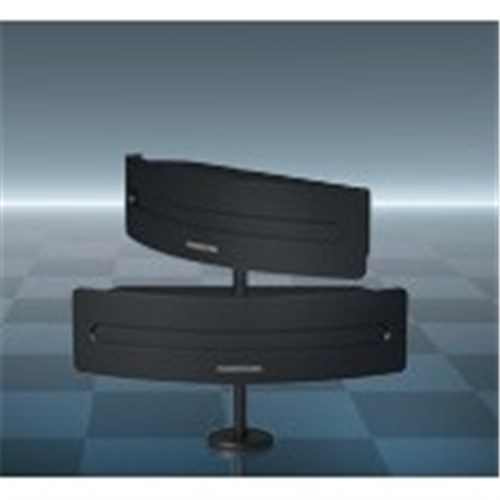

The transmission energy of PRO IR-202 Transmission/Modulator unit (Master) spreads club-shaped in the room in a broad aperture angle (see illustration bottom right). The audio transmission is interference-free due to the infrared signal modulation in 2.3 and/or 2.8 MHz. The combination of the PRO IR-202 with another PRO-IR-202 transmitter, set up as a slave, increases the range and the dispersion angle of the infrared signals up to 240°. A set for ceiling and wall mounting is included in the delivery. A stand (Art.-No: A-4986-0) is available as an accessory. PRO IR-202 at a glance Broad exit angle of infrared signals Configuration with 1 and 2 channel transmission Modularity: Up to two PRO IR-202 transmitters can be combined into a Master/Slave unit Power supply of Slave unit via connection cable Operation of Master-Slave configuration with a single power supply unit Usable as fixed (wall or ceiling mount) or mobile installation (e.g. stand) Combining two PRO IR-202 is achieved with the included installation kit. The units mounted on top of each other can be freely turned to the required angles to achieve optimal signal supply in the room. The range of the Master with 2 Slave units is up to 560 m² at one-channel transmission - ideal for large rooms. With the selection of the suitable receiver type (RCI-102, PR-22+ or IP112) the range can be further influenced, depending on the sensitivity of the receiver diodes.
