AMX NMX-DEC-N3322D 4K60 H.26x/Dante AV-H Decoder

Product Code: AMX N33D001

Key Features
  • High-quality 4K60 H.26x Decoding
  • Audinate® Dante AV-H support
  • Dante Audio
  • Support for high security networks
  • PoE+ powered with low-power mode for energy savings
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX NMX-DEC-N3322D 4K60 H.26x/Dante AV-H Decoder

AMX SVSI NMX-DEC-N3322D decoders can decode the highest quality 4K60 H.26x and Dante AV-H video streams output by AMX N3300 encoders or other Dante AV-H cameras, digital signage players, or software.

In addition to supporting HDCP content from N3300 encoders, they also feature enhanced support for high-security networks.

NMX-DEC-N3322D decoders support Dante AV-H, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-H, NMX-DEC-N3322D decoders are compatible with Dante Studio, a suite of software tools for PC, that allows you to monitor or bring video directly into UC, recording, production, or streaming applications without the need for additional hardware. Dante Controller handles all device routing, naming and configuration, while Dante Domain Manager provides IT-level management over device organization, user access, multiple subnet coordination and complete audit logs for every endpoint and user.

Compatible encoders include AMX N3300 Series encoders, N3000 Series encoders the NMX-WP-N3510 Windowing Processor, and other Dante AV-H encoders. Additionally, the NMX-DEC-N3322D can decode an H.264 stream generated by N2600S Series encoders.

Moving 4K60 video to or from the Cloud just became a lot easier with AMX SVSI N3300 Series Encoders and Decoders.

Common Applications

The N3300 Series is a fantastic solution for almost any streaming application but is ideal for colleges and universities, casinos, hospitality, and government applications. High-quality 4K60 H.26x and Dante AV-H streaming is perfect for transmitting the highest quality video at lower bandwidth.
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Network PCM audio or Dante Audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or Analog Audio Output

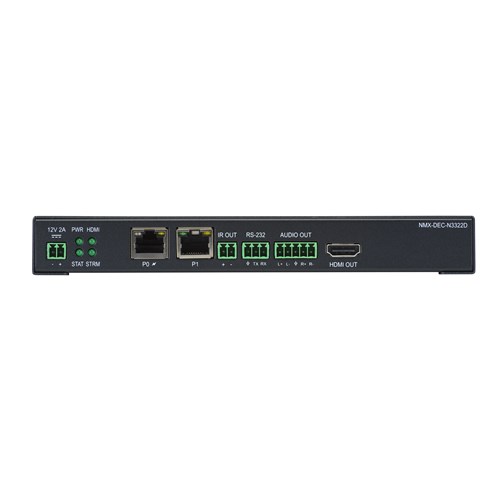

Ports +12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Operating Temperature: 32° F (0° C) to 104° F (40° C)
Operating Humidity: 10% to 90%, non-condensing
Heat Dissipation: 85 BTU/hr
Certifications FCC, CE, and UL (including UL2043 – Plenum Space certification)
Dimensions (H x W x D) 1 1⁄6” x 7 7⁄8” x 5” (26.6mm x 200mm x 127mm)
Product Weight 1.45 lbs. (Approx. 0.45kg)
SKU Numbers AMX-N33D001
