  • AMX HPX-AV103-USBC-R - USB-C to HDMI Module with Retractable Cable

AMX HPX-AV103-USBC-R - USB-C to HDMI Module with Retractable Cable

Product Code: AMX UHMR01C

Key Features
  • Retractable USB-C Cable – USB-C Cable with DisplayPort Alt Mode support for video distribution
  • 4K60 4:4:4 - Ideal for users running critical viewing applications requiring transport which uses the full fidelity of their displays.
  • HDCP 2.2 - Supports the latest video standards.
  • High Dynamic Range (HDR) and Deep Color Support – Support for HDR10 and up to 36-bit Deep Color.
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX HPX-AV103-USBC-R - USB-C to HDMI Module with Retractable Cable

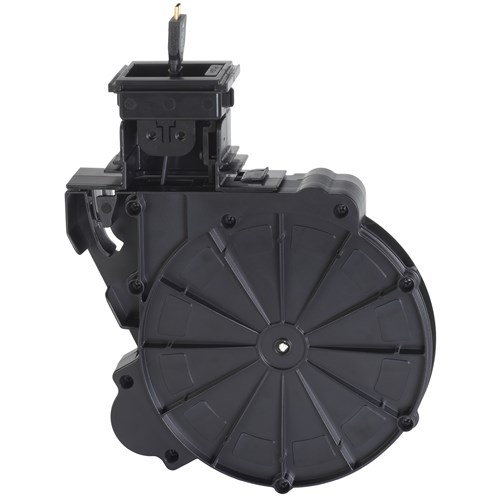

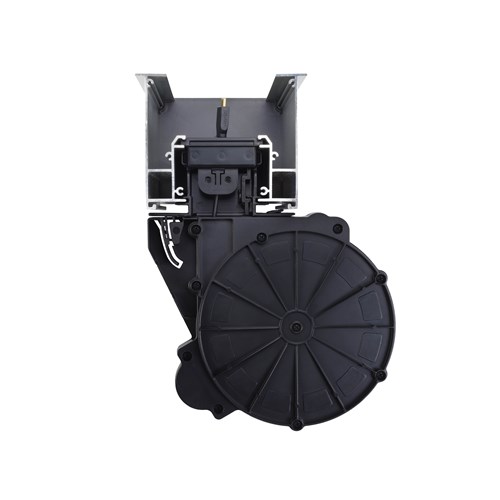

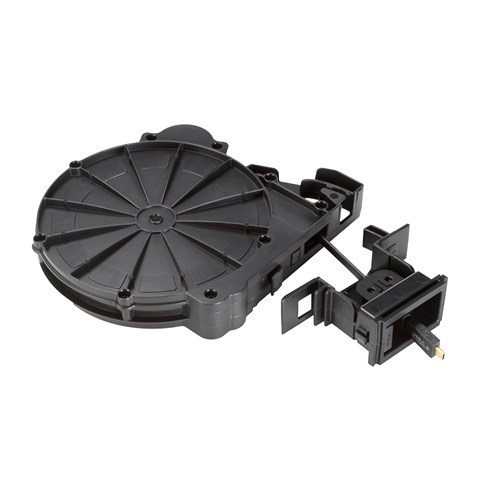

The AMX HydraPort® USB-C to HDMI Module with Retractable Cable delivers digital video in resolutions up to 4K@60Hz. With a retractable USB-C cable on top and HDMI output under the table, this cable simplifies connecting modern laptops and mobile devices to your video network. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.

Common Applications:

Many modern laptops and mobile devices leverage USB-C connections for every signal type including video, audio, data, and power. The retractable USB-C cable with support for DisplayPort Alt Mode of the HPX-AV103-USBC-R ensures the necessary cable will always be available in your meeting space and the HDMI output below the table makes injecting video into your display or video network easy.

AMX HydraPort Architectural Connectivity Video:



Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions 1 ½ HydraPort Units
Product Weight ~ 1lb. (0.46 kg)

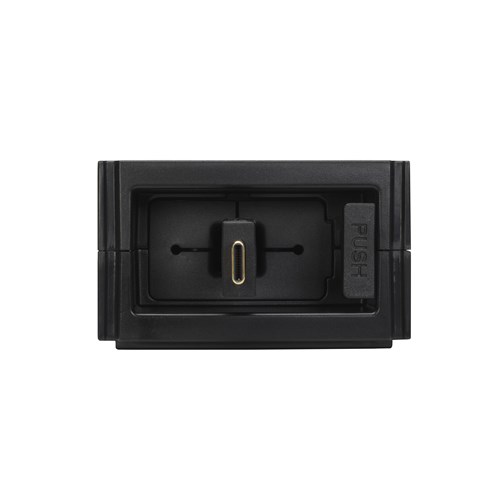

Front Panel Components (1) USB-C Retractable Cable

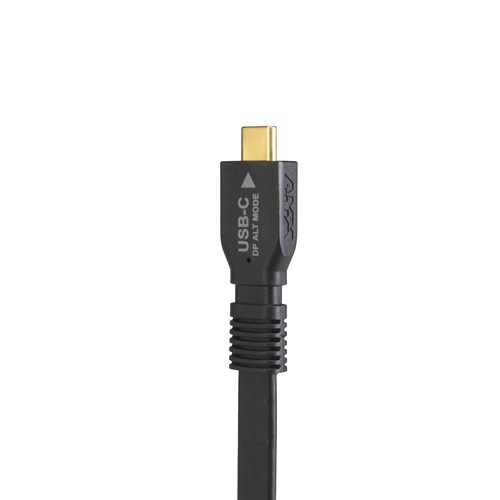

Integrated Cable • USB-C 4K60 Retractable Cable
• DisplayPort Alt Mode
• Pullout Length: 5 ft (1.5m)
• Pigtail: 5 ft (1.5m)
• Pigtail Connector: HDMI
• Data Rate: 18 Gbps
• Resolution Support: up to 4096 x 2160 @60Hz
• Deep Color Support: Yes
• 3D Format Support: Yes
Long-Term Reliability Tested to 10,000 pull & release cycles
SKU Numbers AMX-UHMR01C
