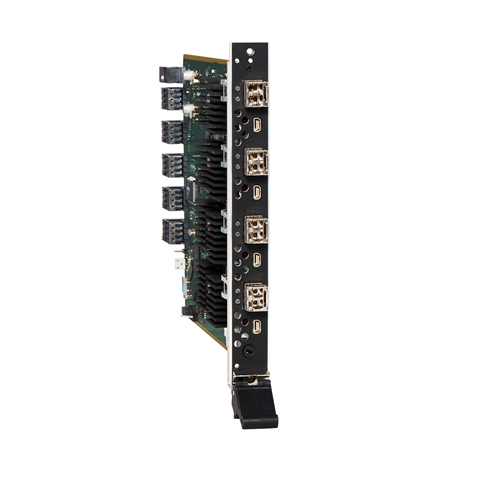

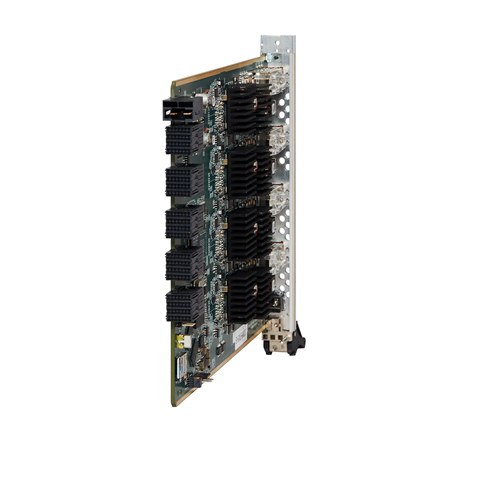

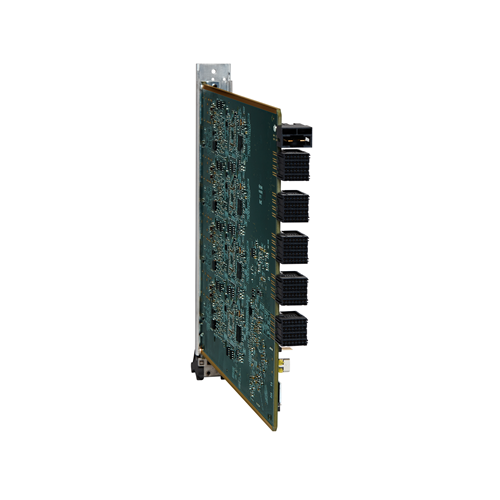

AMX DGX-I-DXFP-4K60 - Enova DGX DXLink 4K60 Fiber Input Board

Product Code: AMX FG1061-624

Key Features
  • HDMI 2.0 4K60 4:4:4 Over Distance
  • High Dynamic Range (HDR) Support
  • HDCP 2.2
  • USB 2.0
  • As Always, Just One Cable
  • Hot Swappable
  • Single MMD SKU
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX DGX-I-DXFP-4K60 - Enova DGX DXLink 4K60 Fiber Input Board



The Enova DGX DXLink 4K60 Fiber Input Board is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This board has four inputs and receives audio, video, control, USB 2.0, and Ethernet over duplex fiber from a DXLink 4K60 Fiber transmitter up to 300 meters away. Each input includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed. This board is compatible with Enova DGX 100-Series enclosures and DXLink 4K60 Fiber transmitters.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping.

Enova DGX 100-Series enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber boards and endpoints. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.



Common Applications:

This input board is ideal for applications where the demands of high-resolution video clarity, long distance transmission and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.



Features:

  • HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
  • High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
  • As Always, Just One Cable – Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
  • Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

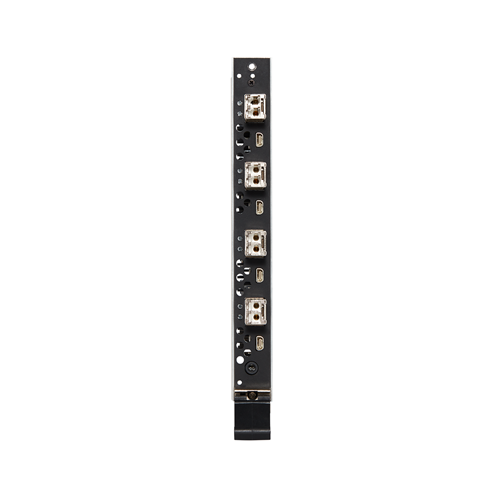

Connectors (4) Duplex LC Fiber Ports, conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); (4) Mini-USB AB Ports
Compatible Formats HDMI Video, Audio, Ethernet, USB(HID), USB (2.0), Serial Control, and IR Control
Signal Type Support DXLink Multimode Fiber, Duplex

NOTE: DXLink 4K60 Fiber boards ship with Multimode Duplex Fiber SFP+ modules installed. These can be field replaced with compatible 10G Single-mode Duplex Fiber SFP+ modules in applications where single-mode fiber is required.
Maximum Resolution Support 480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including:
  • 3840x2160p@50/60 Hz, 4:2:0
  • 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, 2 CH through 8 CH L-PCM

- Dolby Digital and DTS support up to 48 kHz, 5.1 Channels

- When a downstream DXFP-RX- 4K60 is in the signal path, audio formats other than 2CH LPCM and Dolby Digital 5.1 require the DXFP-RX-4K60 to have its scaler set to bypass.
USB USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Transmitters.

The DXLink Output board is automatically configured as either Host or Device depending on the mode selected on the attached DXLink 4K60 Receiver.
Compatible DXLink TX/RX DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60)
FG Numbers FG1061-624
