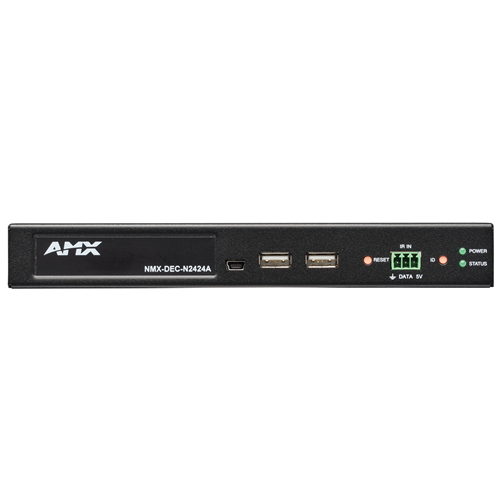

AMX NMX-DEC-N2424A - Decoder

Product Code: AMX FGN2424A-SA

Key Features
  • 4K60 4:4:4 Support
  • High Dynamic Range (HDR) Support
  • HDMI 2.0 and HDCP 2.2 Support
  • Advanced Security including Active Directory, 802.1x, SSL/TLS and HTTPS
  • Operates over Gigabit Ethernet
  • Sub-Frame Latency
  • PoE+ Powered
  • Native NetLinx
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

AMV NMX-DEC-N2424A - Decoder

Utilizing JPEG2000 encoding, N2400 Series encoders and decoders deliver cinema quality video with sub-frame latency. These products support 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR, allowing end users to realize the full potential of their source and display devices. To preserve the security of the network, N2400 supports enterprise security features such as Active Directory integration and 802.1X support. Operating on standard 1 Gbps networks and requiring only POE+ power, N2400 encoders and decoders provide the most scalable 4K60 4:4:4 solution.

Like other SVSI devices, N2400 Series encoders and decoders leverage the diverse control APIs, software, and web interfaces which, through years of field experience, have been optimized to provide a simple, yet flexible solution.

Common Applications

4K60 video is popular in casinos, sporting arenas, museums and other venues where high-resolution, large-scale video distribution is required. The N2400 Series is also perfect for lecture halls, university campus distribution, active learning spaces, or anywhere viewers with a discerning eye will be expecting the beauty of 4K60.

Features:

  • 4K60 4:4:4 Support – The N2400 Series can be used to support today’s 4K content without modifying the color space or reducing the frame rate.
  • High Dynamic Range (HDR) Support – Support for HDR10
  • HDMI 2.0 and HDCP 2.2 Support – By incorporating HDMI 2.0 and HDCP 2.2, the N2400 Series products are compatible with all the latest 4K sources and displays.
  • Advanced Security including Active Directory, 802.1x, SSL/TLS and HTTPS – Satisfies enterprise network security requirements
  • Operates over Gigabit Ethernet – Distribute video over cost effective Gigabit Ethernet switches using category cable already installed in a location. This also allows for greater switching scalability, compared to a solution that depends on 10 GbE.
  • Sub-Frame Latency – N2400 Series encoders and decoders are able to deliver cinema quality video with less than a single frame of latency.
  • PoE+ Powered – The N2400 Series can operate using PoE+ power from the network switch, simplifying installation and reducing installation cost.
  • Native NetLinx – Simplifies integration with AMX control to reduce the cost of installation



Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video Inputs Network video over Ethernet via RJ45 1G port
Video Outputs HDMI, DVI-D (through adapter)
Video Resolution Support HDMI and DVI (Progressive)

Matched to inputs or scaled 1280x720@50Hz (720p50), 1280x720@59.94Hz (720p59.94), 1280x720@60Hz (720p60), 1280x800@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@59.94Hz (1080p59.94), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 3840x2160p@30Hz (2160p30), 3840x2160p@60Hz (2160p60), 3440x1440@50Hz, 3440x1440@60Hz, 3840x1080@60Hz, 4096x2160@30Hz, 4096x2160@60Hz
Audio Inputs Network PCM and AES67 audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or DVI-D (through adapter),
5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced stereo

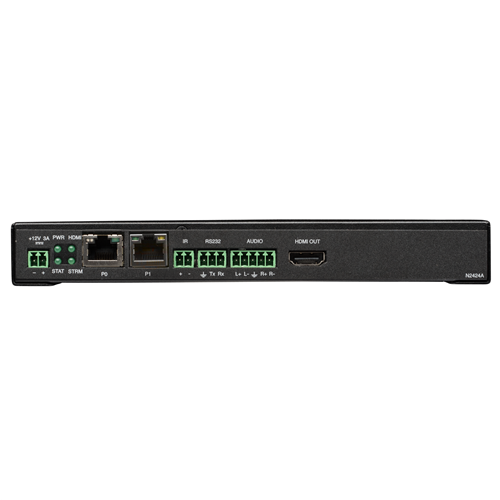

Ports +12V 3A DC power input, (P0) Gigabit Ethernet port with POE+ support, (P1) Gigabit SFP port (SFP fiber transceiver or direct attach cable not included), (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, USB Mini B control input (front panel), 2 USB Type A control inputs (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~102 BTU/hr
Regulatory Compliance FCC, CE, UL and NTRL
Dimensions (H x W x D) 1.05” x 7.888” x 5” (2.67 cm x 20.04 cm x 12.7 cm)
Weight 1.54 lbs (0.68 kg)
FG Numbers FGN2424A-SA
