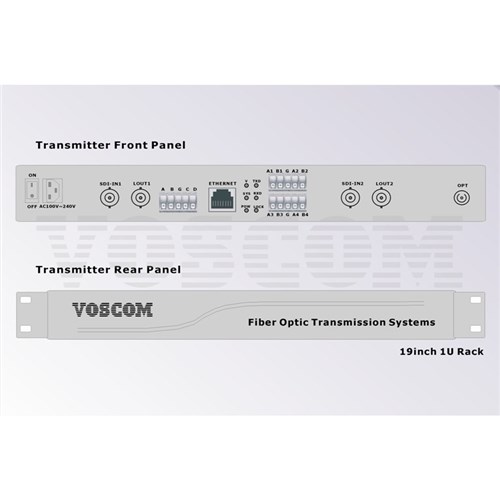

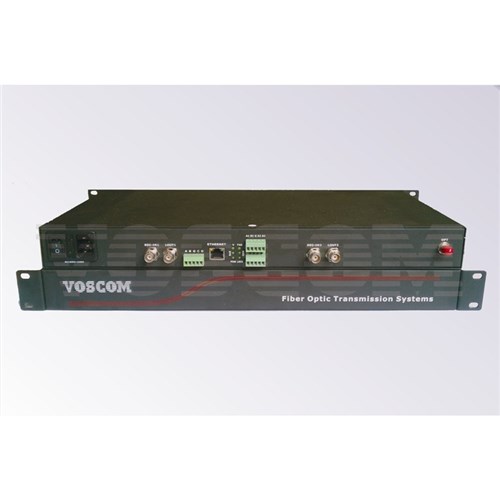

3G-SDI Fibre Transceiver VOS-2H3G-ADT/R provides for the digital transmission of 2-Channel uncompressed 2.97Gbps 3G-SDI (SMPTE 424M), 1.485 Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI (SMPTE 259M) 1080P HD video over fibre, support 2 duplex analog audio and 1 duplex RS232/RS485 data, also support one loopback output for local display, and dual outputs for two displays in the remote end. This unit only can support 19inch 1U Rack.
Single-Mode or Multi-Mode, VOS-2H3G-ADT/R can support FC/PC or ST/PC optical connector, the transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km, Multi-mode 300m.
Price is for a "SET", includes Transmitter and Receveier, and their power supplies. Pricing is for Single-mode 20km or Multi-mode 300m models. This model is common, inquiries for custom models are welcome.
Important Note When Ordering This Product: Please advise us if you require:
- The fibre mode to be “Single-Mode” or “Multi-Mode”.
- “FC/PC” or “ST/PC” optical connectors.
To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.
