Roadworx RW540811BK Speaker Cable 8 Conducor 4mm High-Flex 300m Reels

Product Code: RW540811BK300

Key Features
224/0.15BC x 8C, PVC Insulation, PP Net, Cotton Tape, PVC Sheath 18.8mm, Area 4.0mm2
$24.83 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

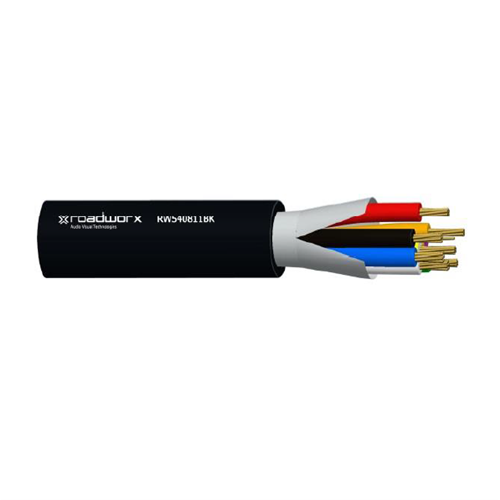

Roadworx RW540811BK Speaker Cable 8 Conducor 4mm High-Flex

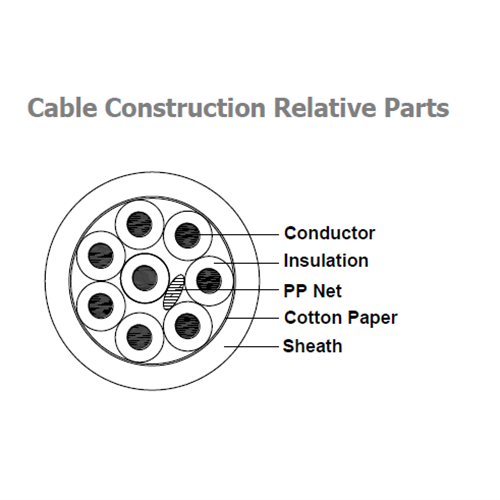

224/0.15BC x 8C + PVC Insulation + PP Net + Cotton Tape + PVC Sheath Φ18.8mm, Area 4.0mm2.

Suitable Applications:

Used to make the electrical connection between loudspeakers and
audio amplifiers.



Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Products to compare:
Comparing Products
Conductor 224/0.15+/-0.006BC
Insulation Core: 8
Material: V-75 PVC
Colour: Brown, Red, Orange, Yellow, Green, White, Blue, Black
Min. Thickness 0.68mm / Nom. Thickness ≥0.80mm / Nom. O.D 4.8+/-0.1mm
Filler PP Net
Cotton Tape
Sheath Material : V-75 PVC / Colour: Matte Black
Min. Thickness 1.12mm / Nom. Thickness ³1.4mm / Nom. O.D 18.8+/-0.4mm
Spark Voltage : 3000V a.c
Electrical Properties:
Conductor Max D.C Resistance 4.6 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Physical Properties:
Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Mechanical Properties:
Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 2216N
Min. Bend Radius (install) 188mm
Approximate Mass 60.0kg/100m
Sheath Printing ROADWORX RW540811 SPEAKER CABLE, 8 CORE, 11AWG (meter marking)
