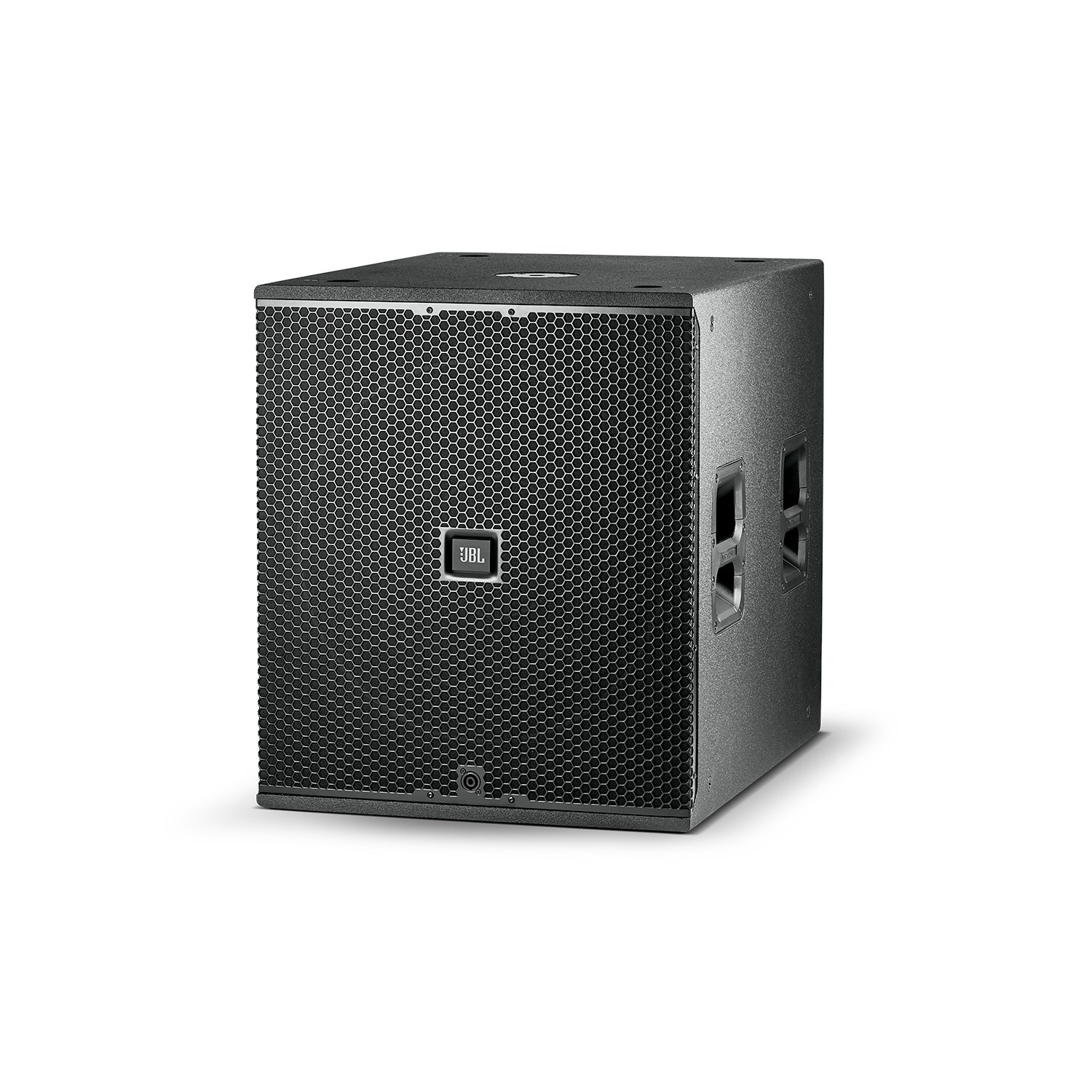

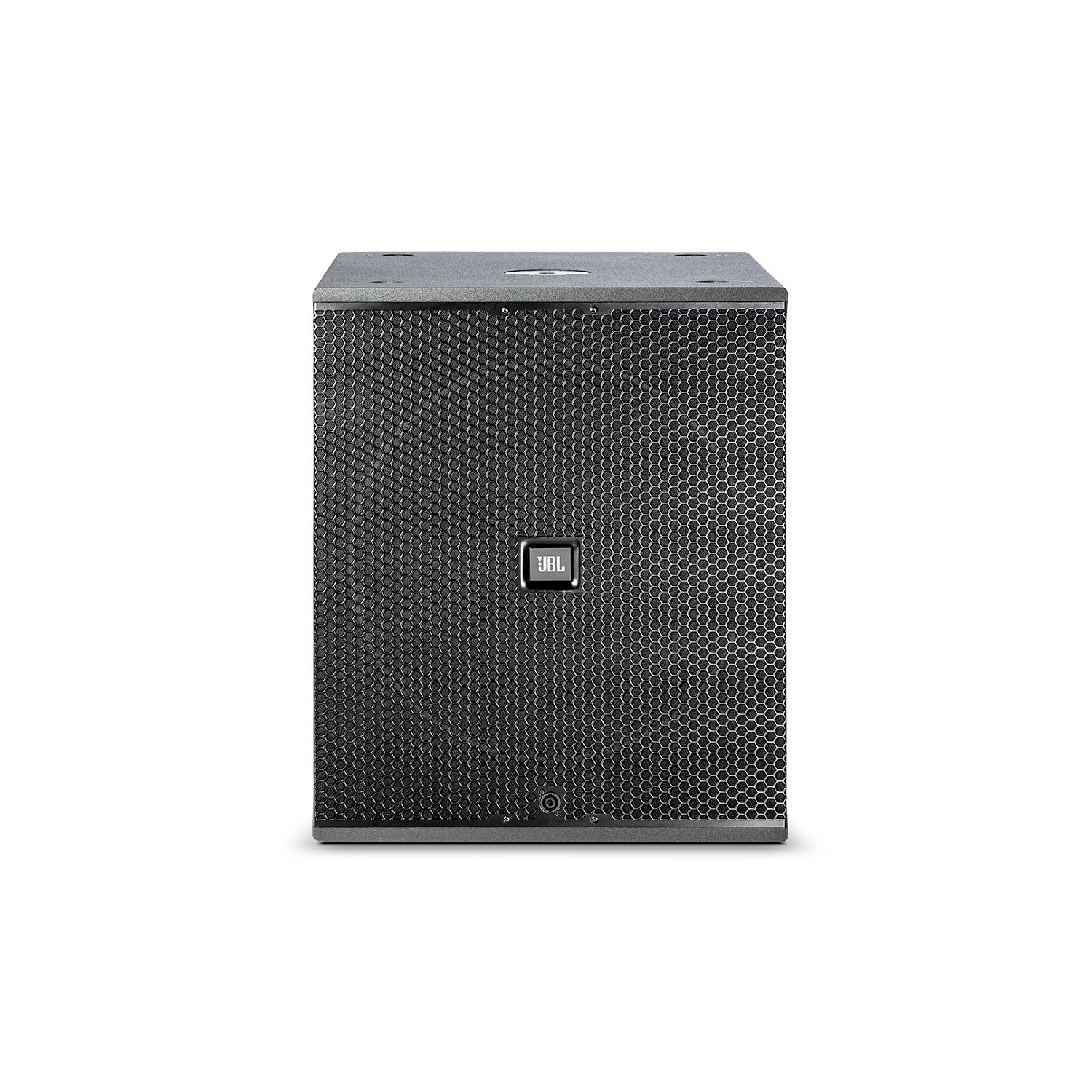

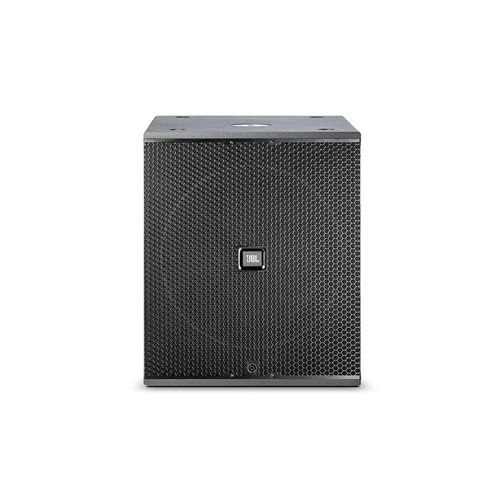

JBL VTX-F18S - 18-inch Compact Single Subwoofer

Product Code: JBL VTX-F18S

Key Features

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-F18S - 18-inch Compact Single Subwoofer

The VTX F18S is a compact, high power, cardioid-arrayable single 18" subwoofer designed to perfectly complement VTX F12 and F15. For small to medium format Frontof-House applications, single or multiple VTX F18S enclosures can be used with F12 or F15 enclosures in subwoofer / satellite mode. VTX F18S is also ideal for drum, DJ or side fill monitoring since it has been strategically dimensioned to physically integrate with either VTX F12 or F15 enclosures.

Features:

  • 2269H Differential Drive 18"
  • Exceptionally High Power Handling (2000 W Continuous, 8000 W Peak AES 2 hr)
  • Massive Linear Excursion Capability (3.5" peak-to-peak)
  • Reverse-Cardioid Arrayable (front NL4)
  • Reinforced M20 Extension Rod Receptacle
  • 16x M10 Mount Points (4 per side, 4 top/bottom)
  • Convenient Handle Locations (4x)
  • Attachment plates included as standard for stacked F18S plus F12 or F15 configurations

Technology:

DIFFERENTIAL DRIVE® TECHNNOLOGY - Enhanced Performance and Dramatically Reduced Driver Weight - JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

System Integration:

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

System Type High Power Single 18” Differential Drive® Subwoofer

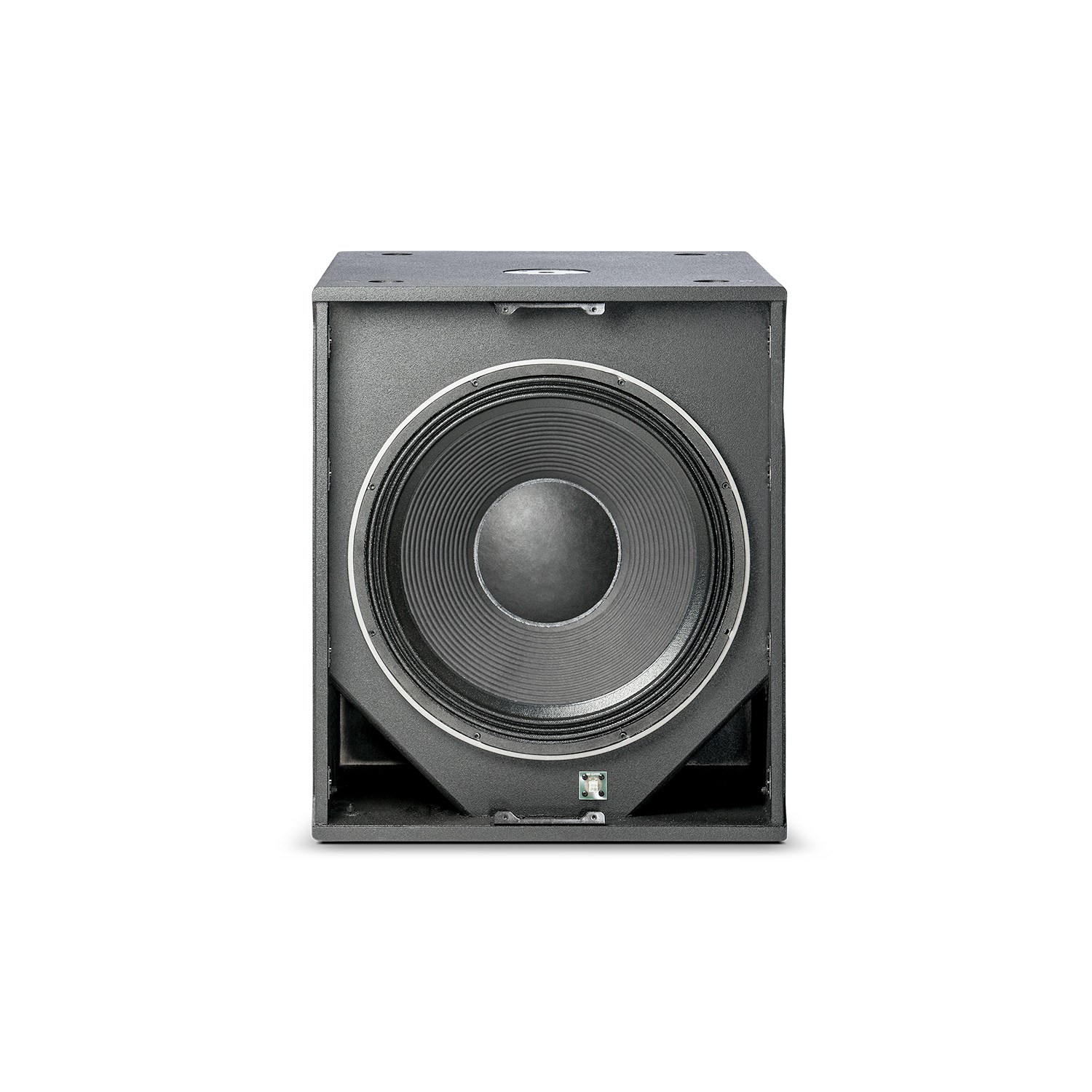

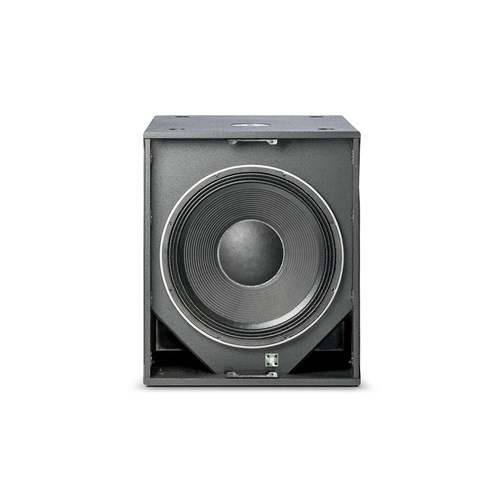

Components 1 x 2269H, 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer
Frequency Range (-10dB) 24 Hz - 2.2 kHz
Frequency Response (±3 dB) 32.5 Hz - 1.7 kHz
Sensitivity 97db half space
Nominal Impedance 8 ohms
Transducer Power Rating (AES 2 hour) 2000W cont 8000W peak
Dimensions (H x W x D) 640.1mm x 548.6mm x 713.7mm (25.2in x 21.6in x 28.1in)
Net Weight (each) 45.4 kg (100 lbs)
LF Driver 1 x 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer
Maximum SPL (1m) 133dB (Preset: VTX F18S 80)
Enclosure 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish
