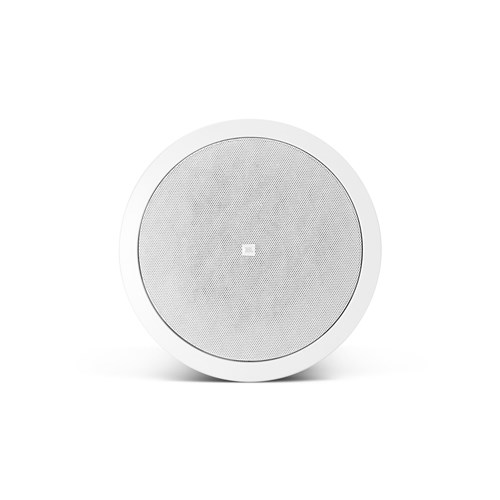

JBL Control 26CT-LS - Ceiling Loudspeaker Assembly for Life Safety Applications White - Priced as Each Sold as Pair

Product Code: JBL CTRL26CT-LS-WH

Key Features
Professional Ceiling Speaker for Life-Safety Applications. UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems. 6.5 coax, 80 Hz 20 kHz, all-in-one, backcan attached. (priced as each; sold in pairs)
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Features

  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.

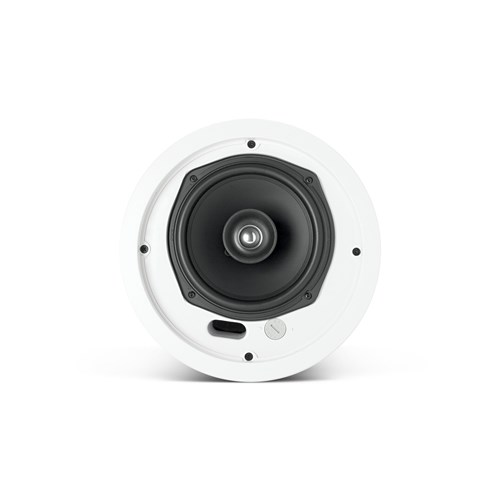

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range 80 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, & 15W
Nominal Coverage Angle 110 conical coverage
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL 107 dB @ 1 m (3.3 ft)
Low-Frequency 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency 19 mm ( in) Titanium coated polyester
Termination Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (ea) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
