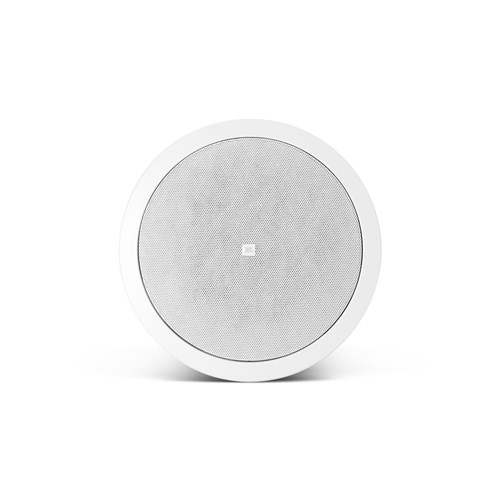

JBL Control 26C - 6.5 Inch Ceiling Loudspeaker Transducer Assembly White - Priced as Each Sold as Pair

Product Code: JBL CTRL26C-WH

Key Features
6.5" Two-Way Vented Ceiling Speaker, 75Hz 20kHz, 89dB Sensitivity, 150W Program and 75W Pink Noise Power Capacity, SonicGuard Overload Protection, 16 Ohms, 100° Coverage, Packaged With Backcan, Grille, Support Plate and Tile Rails. Priced as Each, Packed as Pairs. Master Pack Quantity: 4 Pieces.
$592.05 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

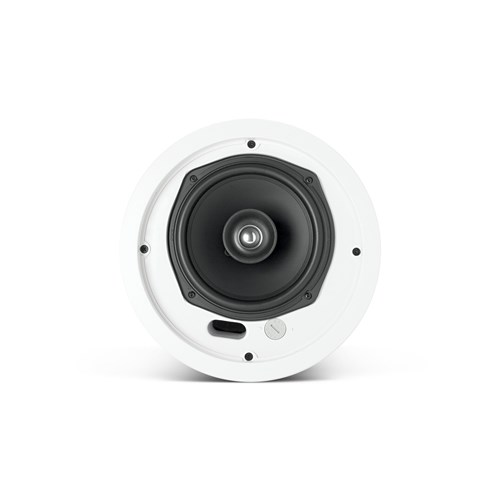

6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5"" woofer and 3/4"" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

Features

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
  • High power, wide frequency response and low distortion for high sound level capability.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
    system reliability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 75 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Nominal Sensitivity 89 dB, 1m/1 W
Nominal Coverage Angle 110
Directivity Index (DI) 4.6 averaged 500 Hz to 4 KHz
Nominal Impedance 16 ohms
Rated Maximum SPL 107 dB SPL @ 1m (3.3 ft)
Low Frequency 165 mm (6.5 in)
High Frequency 19 mm (.75 in) titanium
Terminations Screw locking barrier strip
Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (ea) 2.7 kg (6 lbs)
Shipping Weight (pair) 6.4 kg (15 lbs)

Accessories

JBL MTC-48TRx12 - Tile Rail for 4ft x 4ft Ceiling Tiles - Pack of 12
JBL MTC-48TRx12 - Tile Rail for 4ft x 4ft Ceiling Tiles - Pack of 12 JBL MTC-48TRX12
Estimated Lead time 6-8 weeks
$888.22 (EA)
Increase value Decrease value View Product
JBL MTC-16WG-WH - High Humidity Speaker Grille - White - Priced as Each Sold as Pair
JBL MTC-16WG-WH - High Humidity Speaker Grille - White - Priced as Each Sold as Pair JBL MTC-16WG-WH
In Stock
$78.16 (EA)
Increase value Decrease value View Product
JBL MTC-26MR - Mud Ring Construction Bracket for Control 26C Series - Pack of 6
JBL MTC-26MR - Mud Ring Construction Bracket for Control 26C Series - Pack of 6 JBL MTC-26MR
In Stock
$596.04 (EA)
Increase value Decrease value View Product
JBL MTC26NC Construction Bracket Suits Ceiling Speaker Control 16CT/C - Pack of 6
JBL MTC26NC Construction Bracket Suits Ceiling Speaker Control 16CT/C - Pack of 6 JBL MTC-26NC
In Stock
$420.50 (EA)
Increase value Decrease value View Product
JBL MTC26TR Ring 320mm Outside Diameter Steel White Retrofit Larger - Pack of 10
JBL MTC26TR Ring 320mm Outside Diameter Steel White Retrofit Larger - Pack of 10 JBL MTC-26TR
Estimated Lead time 6-8 weeks
$520.66 (EA)
Increase value Decrease value View Product
